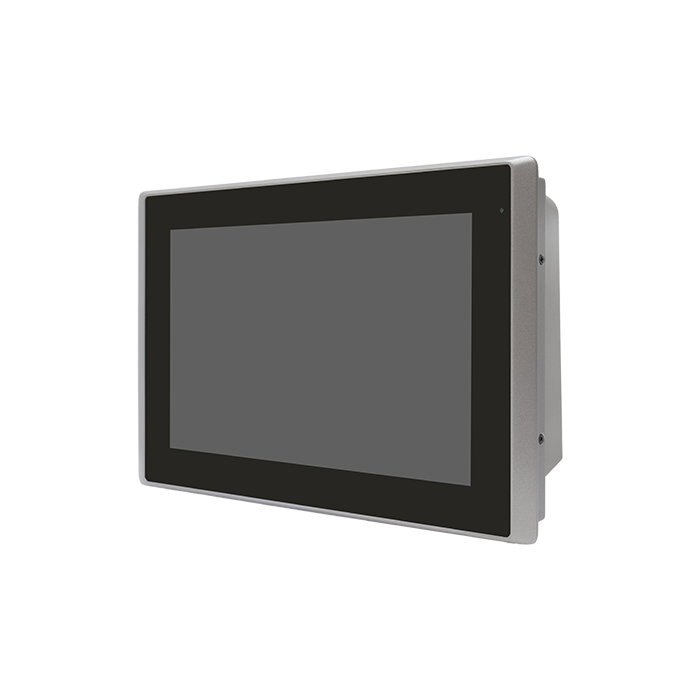

10.1" WXGA fanless HMI J6412 PCAP 1xDDR4 Slot 9V~36V DC

SKU:
ARCHMI-S-810BP
Fabrikant:
Aplex
  • Application : Automation, IoT
  • taille de l'écran : 10.1"
  • type d'écran tactile : Capacitive Touch
  • type de processeur : Celeron
10.1" WXGA fanless HMI J6412 PCAP 1xDDR4 Slot 9V~36V DC
Veuillez nous contacter pour le délai de livraison.
Détails
Spécifications
Téléchargements
APLEX’s ARCHMI-S-8XXB series
APLEX’s ARCHMI-S-8XXB series products are a newly launched product line, ranging in size from 10.1” to 23.8”. They feature a fanless, low-power, and compact design, making them suitable for use as HMI and control panels in smart production lines and self-service kiosks. With a protective aluminum enclosure, fullplane resistive touchscreen or projected capacitive multi-touchscreen technology, wireless capabilities, and multiple I/O options, the high-performance ARCHMI-S-8XXB series devices can also be integrated with a wide range of optional peripherals and accessories according to specific application requirements.
Spécifications
  • écran
    taille de l'écran10.1"
    type d'écran tactileCapacitive Touch
    rétro-éclairageLifetime: 50,000 hrs
    Rapport de contraste800:1
    Luminance (cd/m2)350
    Angle de vue (H/V°)170°(H)/170°(V)
    résolution maximale de l'écran1280 x 800
  • processeur
    type de processeurCeleron
    Série de processeursElkhart Lake
    Socket typeBGA1493
    Fréquence de basemax. 2.0GHz
    Nb. de cœurs4
    TDP10W
    chipsetSoC
  • Mémoire
    Type de mémoireDDR4 SO-Dimm
    Emplacements de mémoire1
  • Carte vidéo
    Les liensDisplayPort
    1x DisplayPort 1.4: Up to 4096 x 2160@60Hz
    ChipsetIntel® UHD Graphics for 10th Gen Intel® Processors
  • Caractéristiques principales
    caractéristiquesFeatures
    • 10.1" Industrial Compact Size Panel PC
    • Intel Celeron J6412 Processor
    • Support 1 x DDR4 3200MHz SO-DIMM, Up to 32GB
    • IP66 Compliant Aluminum Front Bezel
    • Support Resistive touch screen and Projected Capacitive Multi-touch screen
    • Support Auto-Dimming (for option)
    • Support High Brightness LCD Version
    • Fanless Design
    • DC 9~36V Wide Range Power Input
  • Expansion
    slots d'extensionM.2
    1x M.2 E-Key 2230 for WiFi/BT module (USB2.0, PCIe3.0x1)

    mini PCIe
    1x Mini-PCIe slot (full size, PCIe3.0 x1, USB2.0), with 1 x micro SIM slot
  • Ports et interfaces
    Watchdog timerSoftware programmable 1–255 level
    Interface LAN2
    USB 2.0 les ports2
    Ports USB 3.x2
    Externe I/OEthernet
    1 x RJ45 Type Intel I210AT 1GbE LAN
    1 x RJ45 Type Intel I225LM/I226LM 2.5GbE LAN

    USB
    2 x USB 3.2 Type A
    2 x USB 2.0 Type A

    Serial
    1 x DB9 RS-485/422/232 (COM1, BIOS selection, RS-232 is default)
    1 x DB9 Type RS-232

    Power
    1 x Terminal Block Type, 9-36V DC Power input
  • Capacité de stockage
    interface de stockageM.2
    1 x M.2 M-Key 2242/2280 for SSD (SATA3)
  • Spécifications mécaniques
    Dimensions285mm (W) x 189mm (H) x 75mm (D)
    des poulets à certains critèresIP66 Compliant Front Panel,
    Aluminum Die-casting Chassis
    MontagePanel Mount, VESA 100 x 100
  • Caractéristiques du produit
    Le poids2.7kg
  • Spécifications électriques
    plage d'entréeDC 9V~36V
    Power consumptionARCHMI-S-810BP/R: 44.28W(Max)
  • Spécification environnementale
    température de stockage-30°C/+70°C
    température de fonctionnement-20°C/+60°C
    humidité relative10 to 95%@ 40˚C, non-condensing
  • Certificats
    certificatsCE/FCC Class A/ UL
  • Données GENERALES
    FabricantAplex
    ApplicationAutomation, IoT
    Garantie24 Maanden
