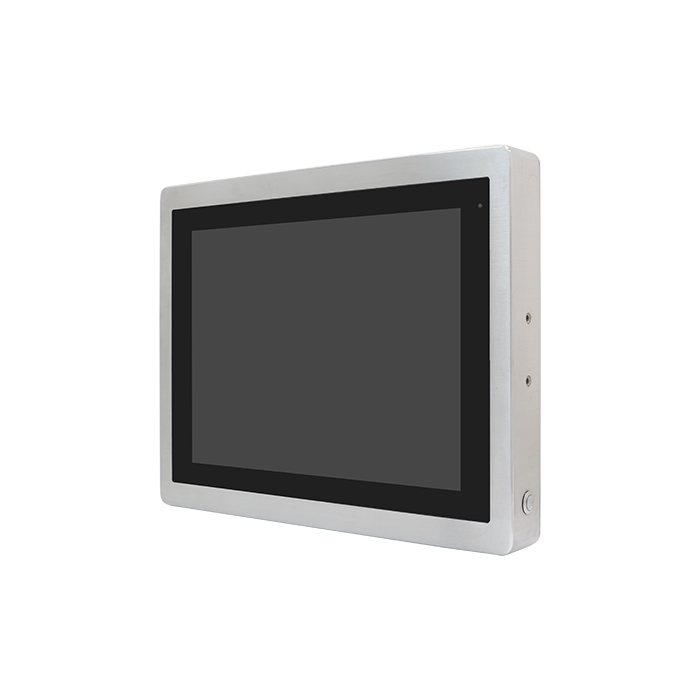

12.1" SVGA IP66/IP69K J6412, DDR4 slot, 128GB SSD, PCT

SKU:
VITAM-812BP
Fabrikant:
Aplex
  • Application : Digital signage, Food & beverage
  • taille de l'écran : 12.1"
  • type d'écran tactile : Capacitive Touch
  • type de processeur : Intel Core
12.1" SVGA IP66/IP69K J6412, DDR4 slot, 128GB SSD, PCT
Veuillez nous contacter pour le délai de livraison.
Détails
Spécifications
Téléchargements
Spécifications
  • écran
    taille de l'écran12.1"
    type d'écran tactileCapacitive Touch
    Rapport de contraste1000:1
    Luminance (cd/m2)450
    Angle de vue (H/V°)176(H)/176(V)
    résolution maximale de l'écran800 x 600
  • processeur
    type de processeurIntel Core
    Série de processeursElkhart Lake
    Socket typeBGA1493
    Fréquence de base2.00 GHz
    Nb. de cœurs4
    TDP10W
  • Mémoire
    Type de mémoireDDR4 SO-Dimm
    Emplacements de mémoire1
  • Carte vidéo
    ChipsetIntel® UHD Graphics for 10th Gen Intel® Processors
  • Caractéristiques principales
    caractéristiques• 12.1" New Generation Stainless Steel Panel PC
    • Intel Celeron J6412 2.0GHz Onboard Processor
    • True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure
    (Grade 316 for option)
    • IP66/IP69K Rated with M12 Connectors
    • Support Resistive Touch and Projected Capacitive Touch
    • Touch on/off Button on the Side Edge for Hygienic Cleaning
    • Support Ergonomic Versatile Mounting: Yoke Mounting / Space-saving VESA 75 x 75 mm Mounting
  • Ports et interfaces
    Interface LAN1
    USB 2.0 les ports1
    Externe I/OUSB
    1 x M12 8-pin for USB 2.0 with waterproof cover

    Serial Port
    1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover

    LAN
    1 x M12 8-pin for LAN with waterproof cover
  • Capacité de stockage
    capacité de stockage128 GB
  • Spécifications mécaniques
    Dimensions335 x 265 x 53 mm
    des poulets à certains critèresStainless steel case
    MontageVESA mount 75 x 75
  • Caractéristiques du produit
    Le poids4.83 kg
  • Spécifications électriques
    plage d'entréeDC 9~36V
    Power consumption34.14W (MAX)
  • Spécification environnementale
    température de stockage-30°C/+70°C
    température de fonctionnement0°C/+50°C
    humidité relative10 to 95% @ 40°C, non-condensing
  • Certificats
    certificatsCE/FCC Class A
  • Données GENERALES
    FabricantAplex
    ApplicationDigital signage, Food & beverage
    Garantie24 Maanden
