• 1x HDMI, 1x miniDisplay Port and 1x LVDS internal
Note: Two independent Displays Max.
Caractéristiques principales
caractéristiques
• High performance CPU, graphics, and media performance supporting up to 3 independent displays
• TPM2.0 and optional Kontron Approtect Security Solution
• mPCIe half size, uSD/uSIM Card Combo
• SO-DIMM Sockets DDR3L-1866 Memory (up to 8GB)
• LVDS 24Bits dual channel and Display Port 1.2
Expansion
slots d'extension
• 1x M.2 (PCIe Rev 2.0) / (SATA Gen 3.0) with USB 3.0 and microSIM interface
Ports et interfaces
interface série ata
SATA Gen 3.0
Externe I/O
• 2x RJ-45 LAN Ports and dual USB 3.0
• 1x Mini DisplayPort, 1x HDMI
• 12 V DC-IN Power Jack
Interne I/O
1x SATA Gen 3 Straight with Locking Latch
2x USB 2.0 4-pin header
Serial Peripheral Interface: internal 9-pin header
LVDS: 1x 24-bit Dual-Channel LVDS Converter for External Display with 5 V
Backlight power output support
1x RS232
Capacité de stockage
interface de stockage
Flash Memory

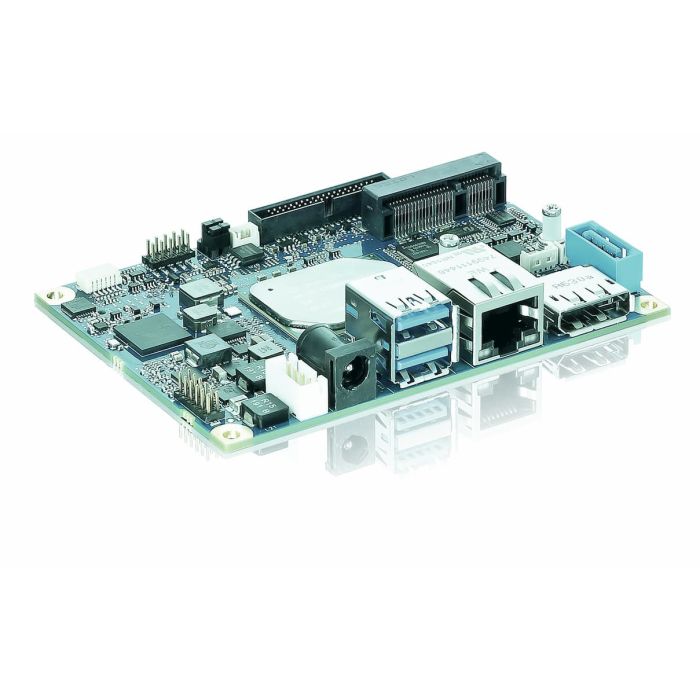

The pITX-APL V2.0 board supports microSD cards via onboard microSD/microSIM combo connector. The microSD card interface is sharing a combo connector with the micro SIM card.
Storage
The pITX-APL V2.0 supports one SATA Gen 3 port
Spécifications mécaniques
Dimensions
100 mm (l) x 72 mm (w) x 41 mm (h)
Type SBC
Pico ITX
Spécification environnementale
température de stockage
-40°C to 85°C
température de fonctionnement
0°C/+60°C
humidité relative
• 10% to 95% relative humidity non-condensing at temperature of 25°C to 30°C
• Up to 95% relative humidity (temperature 25°C to 30°C)
Support logiciel
système opérateur
BSP1: Windows 10 IOT Enterprise 64 bit, eMMC Boot / BSP2: Windows 10 IOT Core, Redstone 64 bit / BSP3: Linux 64 bit, Yocto / API: KEAPI 3 for BSP1 and BSP3
Données GENERALES
Application
Automation
Garantie
24 Maanden
287,98 €238,00 €
