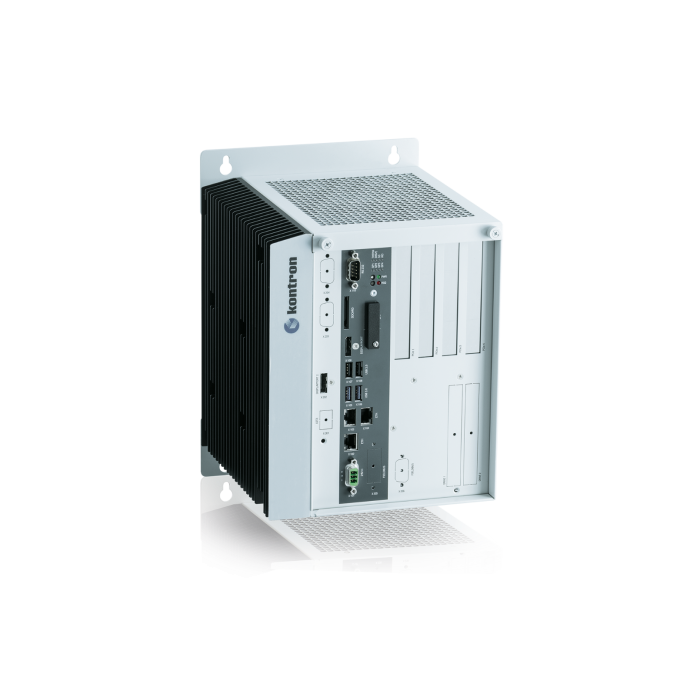

Kbox C-102-4 Powerful Industrial Based on Com Express

SKU:
SCA-990944-CO
  • SKU : SCA-990944-CO
  • type de processeur : Celeron
  • Mémoire maximale : 4GB
  • température de fonctionnement : 0°C/+65°C
Veuillez nous contacter pour le délai de livraison.
Détails
Spécifications
Téléchargements
Spécifications
  • processeur
    type de processeurCeleron
    Série de processeursSkylake
    Fréquence de base1.6 GHz
    Nb. de cœurs2
  • Mémoire
    Type de mémoireDDR4
    Emplacements de mémoire1
  • Carte vidéo
    Les liens• 1x DisplayPort
    ChipsetIntel® HD Graphics 510
  • Caractéristiques principales
    caractéristiques• Based on 6th Gen Intel® Core™ or XEON® E3-1500 for demanding control applications
    • Modular approach - Forever Young
    • Maintenance-free design
    • Security Solution Kontron APPROTECT based on WIBU Systems technology
    • Highest flexibility and expansion capabilities
    • Supports Kontron WideLink for remote visualization applications
  • Expansion
    slots d'extension• 2x PCIe x4 + 2x PCIe x1,2x mPCIe (1x for Fieldbus expansion)
  • Ports et interfaces
    interface série ata2x 2.5” SATA SSD/HDD
    Watchdog timerYes
    Interface LAN3
    Externe I/O• 2x USB 3.0
    • 2x USB 2.0
    • 1x RS232
    • 8x LEDs (Thermal, Drive, SD, Watchdog, 4x General Purpose)
    • 2x Buttons Power/Reset & Rescue
  • Capacité de stockage
    capacité de stockage128 GB
    interface de stockage• 2x mSATA (internal),1x SDCard (removable)
    • 2x 2.5” SATA SSD/HDD internal, optional accessible via removable drive assemblies
  • Spécifications mécaniques
    Dimensions290 (h) x 195 (w) x 210 (d) mm
    des poulets à certains critèresStainless steel case
    MontageKBox C-102 is supplied with assembled mounting brackets. The key holes of the upper and lower mounting brackets allow you to mount the KBox C-102 to a mounting side of the control cabinet in vertical position. This is the only permitted operating position.
  • Caractéristiques du produit
    Le poids6 kg (13.22 lbs.)
  • Spécification environnementale
    température de stockage-40°C ... +75°C
    température de fonctionnement0°C/+65°C
  • Certificats
    normesCE, CB, UL, FCC planned
  • Support logiciel
    système opérateur Windows® 7, Windows® Embedded Standard 7, Windows® 8.1 Industry, Windows® 10, Linux®
  • Données GENERALES
    ApplicationAutomation
    Garantie24 Maanden
