LV-6715

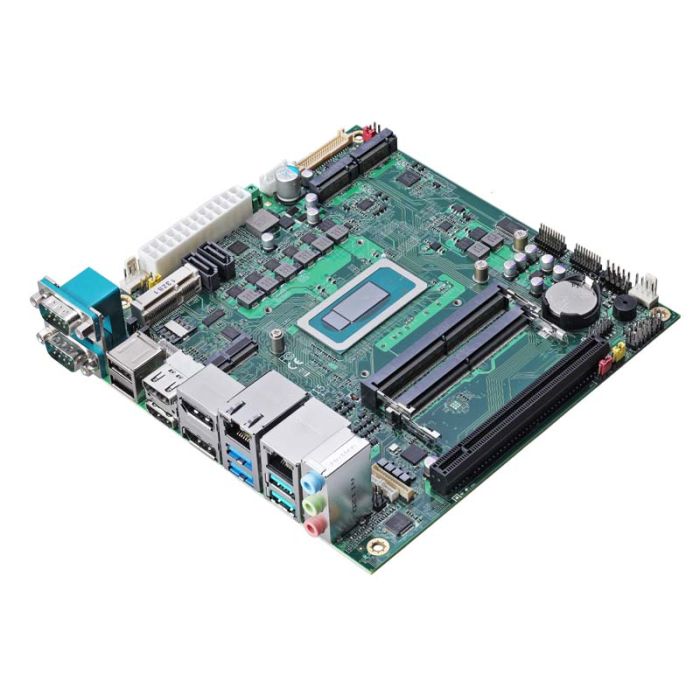

LV-6715 is a Mini-ITX Motherboard which supports 12th & 13th Gen Processors, integrated DDR5 memory, Realtek High Definition Audio, Intel Gigabit LAN, USB3.2 Gen2, SATA3 with AHCI function for a system.
New feature for Alder Lake(12th) & Raptor Lake(13th)
12th & 13th Gen Processors are based on the 7nm SuperFin process, and offer long-life availability. i7-12800HE & i7-13800HE have Intel® Iris® Xe Graphics up to 96 EUs.
All in One multimedia solution
The board provides one MiniPCIe slot (support mSATA), one M.2 2230 slot, two M.2 2280 slot (PCIe Gen4), and one PCIe x16 slot (PCIe Gen4 X8).
Alder Lake support Windows10 version 21H2 64bit and Linux 5.18
Intel recommends using Windows 10 version 21H2 64bit. It may lose some drivers if you use other Windows version
Spécifications
processeur
type de processeur
Intel Core
Série de processeurs
Alder Lake
Fréquence de base
up to 4.6GHz Turbo
Nb. de cœurs
14
TDP
45W Base, up to 115W Turbo
chipset
SoC
Mémoire
Type de mémoire
DDR5
Emplacements de mémoire
2
Carte vidéo
Les liens
DisplayPort
2x DisplayPort
HDMI
2x HDMI
DVI/HDMI
1x DVI/HDMI by header
Chipset
Intel® Iris® Xe Graphics
Caractéristiques principales
caractéristiques
Features
• Support 12th & 13th Gen Intel® Core™ H Processors
• 2x DDR5 SO-DIMM 4800 MHz up to 64GB
• Integrated DisplayPort, HDMI, LVDS for four display support
• 1x Intel® Gigabit PHY LAN, 2 x Intel® 2.5 Gigabit LAN
• 1x MiniPCIe support mSATA
• 2x M.2 2280 Key M support PCIe Gen4 for NVMe
• 1x M.2 2230 Key E for Wi-Fi and Bluetooth
• 2x SATA3, 4 x USB2.0, 4 x USB3.2 Gen2, 6 x COM
• 1x GPIO, 1 x PCIe x16 Slot (support Gen4 X8)
• Support Watchdog Timer
• Standard 24-pin ATX power supply or DC input 9~35
Expansion
slots d'extension
PCI Express
1x PCIe x16 Slot (support Gen4 X8)
Mini PCIe
1 x MiniPCIe (support mSATA)
Note: mSATA and SATA2 can't be used at the same time
M.2
1x M.2 2230 Key E for Wi-Fi and Bluetooth
Ports et interfaces
GPIO Interface
1x GPIO
interface série ata
2x SATA3
Watchdog timer
Generates a system reset with internal timer for 1 min/s ~ 255 min/s
Interface LAN
3
USB 2.0 les ports
4
Ports USB 3.x
4
Externe I/O
Ethernet Ports
1 x Intel® I219-LM Gigabit PHY LAN(supports Intel® AMT 16.0)
2 x Intel® I226-LM Gigabit LAN (up to 2.5GbE)
USB
4x USB3.2 Gen2,
2x USB2.0
Serial Port
2x RS-232/422/485
Interne I/O
USB
2x USB2.0
Serial
4x RS-232
SMBus
1x SMBus
LCD Connector
1x LCD inverter connector
GPIO
1x GPIO by header
SIM Slot
1x SIM Slot
Capacité de stockage
interface de stockage
SATA
2x SATA3
M.2
2x M.2 (Key M 2280) support PCIe Gen4 for NVMe
MSATA
1x mSATA port (mux with mini-PCIe)
Spécifications mécaniques
Dimensions
170mm x 170mm (L x W)
Type SBC
Mini ITX
Spécifications électriques
plage d'entrée
Standard 24-pin ATX power supply or DC input 9~35V
