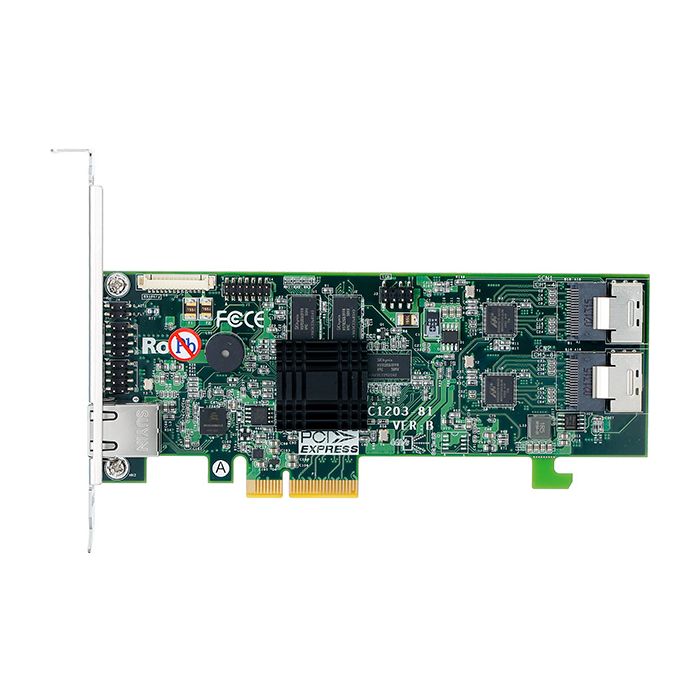

Areca 8-Port PCIe x4 6GB/s SATA Adapter Raid controller

  • Nombre de ports : 2
  • I/O Type : RAID/SATA
  • Bus Type : PCIe
  • Type Mezzanine : pci-e
Interfaces : PCIe 2.0 x4
RAID level : 0, 1, 10(1E), 3, 5, 6, 30, 50, 60 and Single Disk
Veuillez nous contacter pour le délai de livraison.
PCIe 2.0 to SATA RAID Adapter
ARC-1203 series internal PCIe 2.0 host RAID controllers are the cost-effective solutions for connecting 2/4/8 6Gb/s SATA peripherial devices. Areca’s ARC-1203 series entry-level RAID controllers cover the spectrum of wild range storage requirements for cost-sensitive applications that require robust data protection. The 2/4/8 port configurations are aimed at high-availability and capacity oriented applications, such as security systems, surveillance, multimedia content generation, large-volume data capturing, mail servers and entry-level database systems.

Unparalleled Flexibility
Embedded with ARM-based storage I/O processor makes those products a pure hardware RAID controller and raise the standard to higher performance levels with several enhancements including 6Gb/s SATA ports, on-board 1GB SDRAM memory and high performance PCIe 2.0 x8 lane host interface bus interconnection. The ARC-1203 series RAID card with a dedicated processor and cache memory that offloads the parity calculations from the CPU, as this means you can pair it with a slow, lower power processor, the cost to benefit ratio for this cost-effective RAID adapter is negligible. ARC-1203 series RAID can be easily integrated into a variety of hardware and software platforms, and are ideal for cost-effective, high-capacity NAS, DVR and cold storage market
  • Caractéristiques principales
    caractéristiquesHost Bus Type
    PCIe 2.0 x 4 Lanes

    RAID Level
    0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD

    Drive Connector
    2x SFF-8087 (Up to 8x6Gb/s SATA HDDs/SSD)

    On-Board Cache
    512MB on-board DDR3-1066 SDRAM with ECC protection

    i/O Processor
    ARM_based 1066MHz storage I/O processor

    Management Port
    In-Band: PCIe / Out-of-Band: LCD and LAN Port
  • Spécifications mécaniques
    DimensionsLow Profile: 64.4 x 168 mm
    Bus TypePCIe
    Type Mezzaninepci-e
  • Spécification environnementale
    température de stockage -40°c/+70°c
    température de fonctionnement0°C/+60°C
    humidité relative10-85%, non-condensing
  • Certificats
  • Données GENERALES
    Garantie24 Maanden
