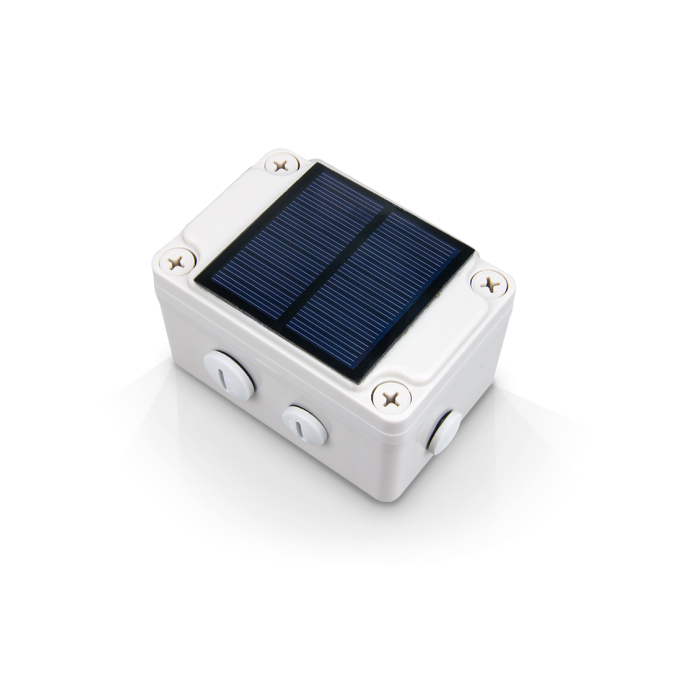

Lora GPS tracker with built-in environmental sensor

SKU:
P18.629 RAK7205-13-R01
Fabrikant:
RAK
  • Application : IoT
  • Commutateur de type : IoT Sensors
Lora GPS tracker with built-in environmental sensor
Veuillez nous contacter pour le délai de livraison.
Détails
Spécifications
Téléchargements
The RAK5205 WisTrio LPWAN Tracker board is built on the Semtech SX1276 chip, with the STM32L1 MCU at its core. It is a feature-packed sensor board with LoRa connectivity and built-in GPS. It provides various interfaces for easy application development.

This is the ideal LPWAN tracker board with a built-in sensor available in the market. It is best used as a quick prototyping module for Internet-of-Things and LoRaWAN Network integration. Its perfect use cases for IoT applications include asset tracking, smart vehicle management, and location-based services.
Spécifications
  • Caractéristiques principales
    caractéristiques● IP67 case
    ● Compatible with 96Boards IoT Edition Specification
    ● With SX1276 LoRa long-range and Ublox Max 7Q GPS modems which allow to enable the GPS low power mode
    ● Integrated the ultra-low-power microcontroller ARM Cortex-M3 STM32L1
    ● Built-in environmental sensor BME680 (gas, pressure, humidity, temperature) and 3-axis MEMS sensor LIS3DH (accelerometer)
    ● SMA/iPEX antenna optional for LoRa and GPS
    ● Supports latest LoRaWAN 1.0.2 protocol, activation by OTAA/ABP
    ● Supports programmable bit rate up to 300 kbps
    ● Supports rechargeable battery through micro USB or 5 V solar charging ports
    ● Supports sleep mode, the power consumption down to 14.5 μA
    ● Supports global license-free ISM band: EU433, CN470, EU868, US915, AS923, AU915, KR920 and IN865
    ● Supports I2C, GPIOs, UART, and ADC interfaces.
  • Ports et interfaces
    USB 2.0 les ports1
  • Spécifications mécaniques
    Dimensions150 mm x 90 mm x 90 mm
  • Caractéristiques du produit
    Le poids220 g
  • Spécifications électriques
    plage d'entréeMicro USB 5V DC (optional)
    3.7V Li-accu 3200 mAh (optional)
    5V Solar (optional)
  • Données GENERALES
    FabricantRAK
    ApplicationIoT
