RC300H-CS: Railway System, CST51-Q370T, 2x16GB,RTX3000, DC11

SKU:
750-RC3000-100G
Fabrikant:
DFI
  • SKU : 750-RC3000-100G
  • type de processeur : Intel Core
  • Mémoire maximale : 32GB
  • température de fonctionnement : -25°C/+50°C
AI Edge Computing on Railway
Veuillez nous contacter pour le délai de livraison.
Détails
Spécifications
Téléchargements

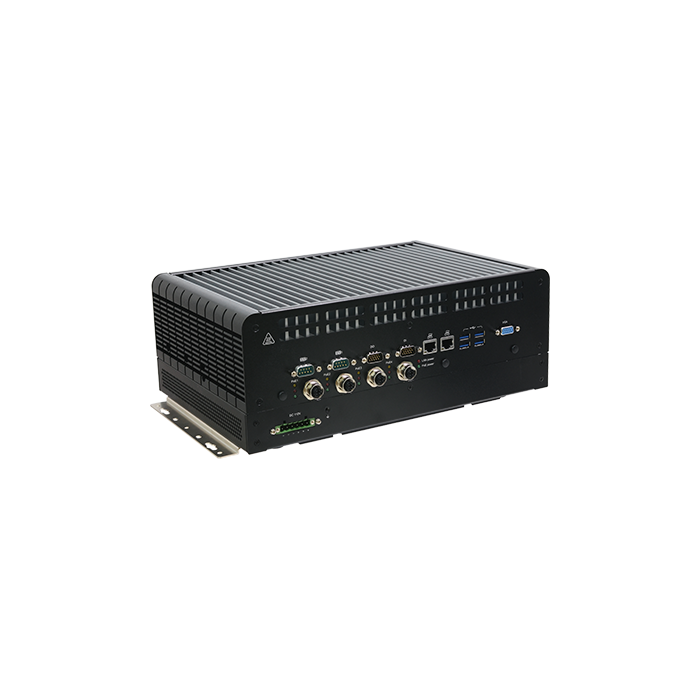

AI Edge Computing on Railway: RC300-CS With MXM & 5G
DFI’s RC300-CS is a fanless and AI-enabled in-railway computer. Powered by Intel® 9/8th Gen Core™ processors and integrated with NVIDIA MXM module, RC300-CS accelerates graphic processing for AI vision and machine learning. In addition, 5G capability brings real-time communication and response to the dynamics at the edge. RC300-CS achieves tremendous performance for advanced driver assistance, risk predictions, track and pantograph diagnostics, and onboard surveillance while also delivering passenger comfort and safety in today’s increasingly complex rolling stock operations.

Enhanced A.I. New Force by MXM
On the moving railway, AI vision and machine learning require abundant images and data for precise detection and analysis, making GPU even more essential for future railways. Providing processing capabilities of up to 150W, 3072 CUDA cores, and 64TFlops by MXM3.1 module, RC300-CS is powerful enough for workloads of autonomous driving. The compact and rugged size with better heat dissipation becomes a better choice for in-railway computers.

5G Era Equal Real-time Data Synchronization To optimize the ecosystem of future railway needs the ability to transfer and analyze a large amount of data in real-time. Therefore, the 5G network, featuring multi-gigabit speeds and ultra-low latency, strengthens the synergy of devices and makes communications seamless and efficient to achieve immediate track hazard detection and rapid response in emergencies.

All-inclusive Function and Interface
RC300-CS not only supports four 15W M12 X-coded PoE, 2kV isolated DIO, and numerous ruggedized I/O interfaces, but also provides multiple M.2 & mini PCIe slots for LTE, 5G, WiFi, GNSS, CAN bus, or MVB functions. In addition, four external 2.5” SSD bring abundant data storage and disk arrays function. The comprehensive I/O meet varying system requirements in the train operation including wayside or onboard applications.

Outstanding Power Protection
In the railway system, electronic power may transit from different power sources and result in unstable voltage. When the system's power equipment is turned on/off, the converter could be damaged by the large voltage fluctuation. Therefore, RC300-CS supports power ignition function and operates stably in the wide continuous voltage range of 9-36V or 77-137.5V to prevent damages.

Perfect Balance Between High Performance and Heat Dissipation
Since rolling stock operation often faces a huge temperature difference and in-railway computers failure are generally quite costly, RC300-CS, with an excellent dissipation, can operate in a harsh environment of -25°C ~ 70°C even if deployed under the driver or passenger seat without active fans.

Reach the Unbreakable Standard
RC300-CS is certified by the E.U. railway standard, including electronic equipment EN50155, fire protection EN45545, and vibrations and shocks EN61373 to provide the most reliable, safe, and rugged embedded computer for the railway industry.
Spécifications
  • processeur
    type de processeurIntel Core
    Socket typeLGA1151
    Fréquence de base1.80 GHz
    Nb. de cœurs8
    TDP35W
    chipsetQ370T
  • Mémoire
    Type de mémoireDDR4
    Emplacements de mémoire2
  • Carte vidéo
    Les liensHDMI
    1 x HDMI

    DiskplayPort
    1 x DP++

    VGA
    1 x VGA display out by DB-15 connector
    ChipsetIntel® UHD Graphics 630 and/or Nvidia Quadro embedded / Nvidia Geforce series
  • Caractéristiques principales
    caractéristiques• 8th/9th Generation Intel® Core™ Processors
    • 4 x M12 X-coded PoE ports at 15.4W
    • AI accelerated: up to 115W GPU MXM module supported
    • Multiple expansion slots for 4G/LTE/5G cellular and function modules
    • UPS Battery: Supports at least 5 mins nonstop operation
    • Support M.2 B key 3042/3052 5G-NR module
    • 4 x Swappable 2.5” 7mm SSD storage bays
  • Expansion
    slots d'extensionMini PCIe
    1 x Half-size Mini PCIe for WiFi/BT modules, with PCIe x1 & USB signal
    2 x Full-size Mini PCIe support PCIe x1, USB 2.0 signal with SIM card socket of each

    M.2
    1 x M.2 B key supports 3042, 3052 devices or 5G module on PCIe x1, USB2.0, USB3.0 signal with SIM card slot bracket
    - SIM card can all be external accessiblet
    1 x M.2 2280 M key supports 2242, 2260 & 2280 devices (PCIe x4 & SATA signal, support boot up function)
  • Ports et interfaces
    Interface LAN6
    Ports USB 3.x4
    PoE disponibleJa
    Capacité POESupport 802.11af, max 15.4W (PSE side)
  • Capacité de stockage
    interface de stockageM.2M
    1 x M.2 2280 M key supports SATA SSD

    SATA
    4 x Swappable 2.5” 7mm SSD storage bays with lock (RC300H-CS)
  • Spécifications mécaniques
    Dimensions 340.5 x 132 x 223mm (3U height, excluding rubber foot)
    MontageWall mount
  • Caractéristiques du produit
    Le poids9.85 kg
  • Spécifications électriques
    plage d'entrée110VDC nominal power input (77VDC~137.5VDC power range)
  • Spécification environnementale
    température de stockage-40°C/+85°C
    température de fonctionnement-25°C/+50°C
    humidité relative10% to 90% (non-condensing)
  • Certificats
    normesShock
    EN61373: 2010, Category 1 Class A & Class B

    Vibration
    EN61373: 2010, Category 1 Class B
    certificatsEMC: EN50121-3-2
    Fire Proof: EN45545
    Railway Regulation: EN50155 (Class S2: 10ms interruptions for RC300H-CS)
    (Supply Change Over Class C1: at 0,6 Un during 100ms without interruptions)
  • Support logiciel
    système opérateurWindows, Ubuntu
  • Données GENERALES
    FabricantDFI
    ApplicationAutomation, Digital signage, IoT, In-vehicle, Railway
