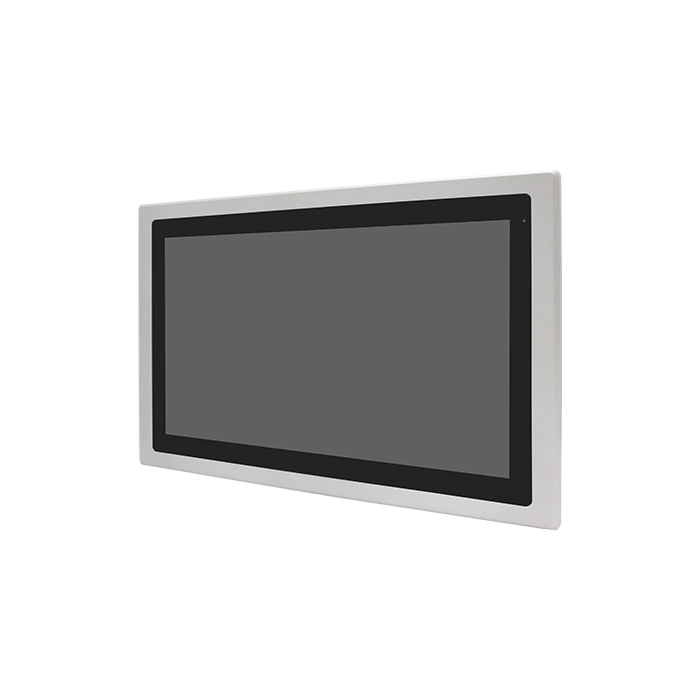

18.5" FWXGA fanless HMI J6412 PCAP 1xDDR4 Slot 9V~36V DC

SKU:
ARCHMI-S-818BP
Fabrikant:
Aplex
  • Marktsegment : Digital signage, IoT
  • Scherm Afmeting : 18,5"
  • Touchscreen type : Capacitive Touch
  • Processor : Celeron
18.5" FWXGA fanless HMI J6412 PCAP 1xDDR4 Slot 9V~36V DC
Neem contact met ons op voor de levertijd
Details
Specificaties
Downloads
Specificaties
  • Scherm
    Scherm Afmeting18,5"
    Touchscreen typeCapacitive Touch
    Contrast Ratio1000:1
    Helderheid (cd/m2)350
    Kijkhoek (H/V°)178(H)/178(V)
    Max screen resolution1920 x 1080
  • Processor
    ProcessorCeleron
    Processor serieElkhart Lake
    Socket typeBGA1493
    Basisfrequentie2.0 GHz
    Aantal cores4
    TDP10W
  • Geheugen
    GeheugentypeDDR4 SO-Dimm
    Geheugenslots1
  • Video
    ChipsetIntel® UHD Graphics for 10th Gen Intel® Processors
  • Belangrijkste eigenschappen
    Kenmerken• 18.5" Industrial Compact Size Panel PC
    • Intel Celeron J6412 Processor
    • Support 1 x DDR4 3200MHz SO-DIMM, Up to 32GB
    • IP66 Compliant Aluminum Front Bezel
    • Support Resistive touch screen and Projected Capacitive Multi-touch screen
    • Support Auto-Dimming (for option)
    • Support High Brightness LCD Version
    • Fanless Design
    • DC 9~36V Wide Range Power Input
  • Poorten & Interfaces
    LAN poorten2
    Seriele poorten2
    USB 2.0 poorten2
    USB 3.x poorten2
    Audio interface1 x Line-out
    Externe I/OLan
    1 x RJ45 Type Intel I210AT 1GbE LAN
    1 x RJ45 Type Intel I225LM/I226LM 2.5GbE LAN

    Serial
    1 x DB9 RS-485/422/232 (COM1, BIOS selection, RS-232 is default)
    1 x DB9 Type RS-232

    USB 2 x USB 3.2 Type A,
    2 x USB 2.0 Type A
  • Opslag
    Opslag interfaceM.2
    1 x M.2 M-Key 2242/2280 for SSD (SATA3)
  • Mechanische specificaties
    Type behuizingAluminum housing
    Afmetingen 499.6 x 314.6 x 82 mm
    MontagePanel Mount, VESA 100 x 100
  • Product eigenschappen
    Gewicht6.85 kg
  • Electrische specificaties
    Input rangeDC 9~36V
    Power consumption70.2W
  • Omgeving specificatie
    Opslag temperatuur -30˚C/+70˚C
    Operating Temperatuur-20°C/+60°C
    Relatieve luchtvochtigheid10 to 95%@ 40˚C, non-condensing
  • Certificeringen
    certificatenCE/FCC Class A/ UL
  • Generieke data
    FabrikantAplex
    MarktsegmentDigital signage, IoT
    Garantie24 Maanden
