LE-37O

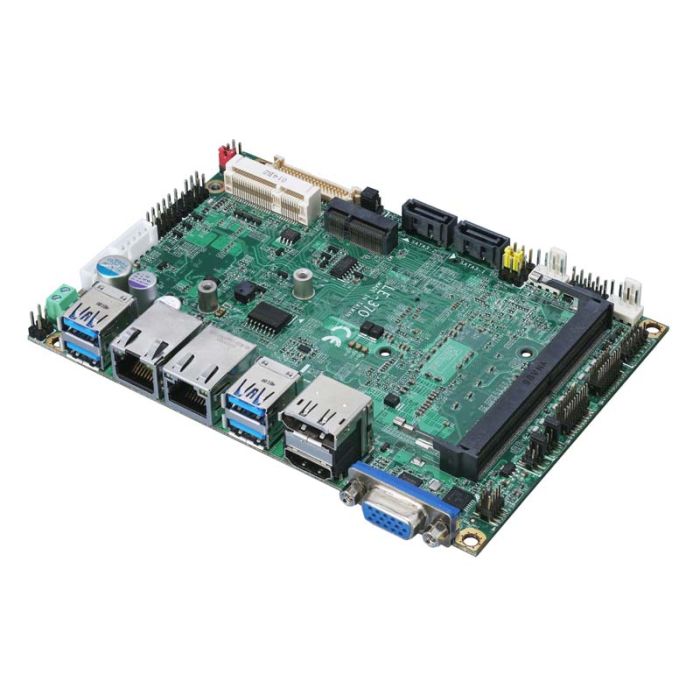

LE-37O is a 3.5” Motherboard which supports 11th Generation Intel® Celeron processors, integrated Intel® UHD Graphics, DDR4 memory, Realtek High Definition Audio, Intel Gigabit LAN, USB3.2 Gen2, SATA3 with AHCI function for a system.
New feature for Tiger Lake Celeron
Tiger Lake Celeron processors are based on the 10nm process node, and offer long-life availability. They have a PCIe Gen4 for M.2 2280 slot.
All in One multimedia solution
The board provides MiniPCIe slot (support mSATA), M.2 2280 slot and M.2 2230 slot.
Tiger Lake support Windows10 version 2004 64bit and Linux kernel 5.8
Intel recommends using Windows 10 version 2004 64bit. It may lose some drivers if you use other Windows version.
Specificaties
Processor
Processor
Celeron
Processor serie
Tiger Lake
Basisfrequentie
up to 1.8GHz
Aantal cores
2
TDP
15W
chipset
SoC
Geheugen
Geheugentype
DDR4
Geheugenslots
1
Max geheugen
32GB
Video
Aansluitingen
VGA
1x VGA
DisplayPort
1x DisplayPort
HDMI
1x HDMI
LVDS
1x LVDS by header
Chipset
Intel® Iris® Xe Graphics
Belangrijkste eigenschappen
Kenmerken
Features
• Onboard Intel® Tiger Lake Celeron Processor
• 1x DDR4 SO-DIMM 3200 MHz up to 32GB
• Integrated DisplayPort, HDMI, LVDS, VGA for four display support
• 1x Intel® Gigabit PHY LAN, 1 x Intel® 2.5G Gigabit LAN
• 1x MiniPCIe (support mSATA)
• 1x M.2 (Key M 2280) support PCIe Gen4 for NVMe
• 1x M.2 (Key E 2230)
• 2x SATA3, 2 x USB2.0, 4 x USB3.2 Gen2, 4 x COM,1 x GPIO, 1 x PS/2
• Support Watchdog Timer
• Support OpenVINO for AI Computing
• Support 4K resolution
• DC input 9~35V
Uitbreidingsmogelijkheden
Uitbreiding slots
Mini PCIe
1x MiniPCIe (support mSATA)
Note: CN_SATA cannot be used when mPCIe changed to mSATA
M.2
1x M.2 (Key E 2230) for Wi-Fi and Bluetooth
Poorten & Interfaces
GPIO Interface
1x GPIO
serial ATA interface
2x SATA3
Watchdog timer
Generates a system reset with internal timer for 1 min/s ~ 255 min/s
LAN poorten
2
Seriele poorten
4
USB 2.0 poorten
2
USB 3.x poorten
4
Audio interface
Realtek ALC262 HD Audio
Externe I/O
Ethernet Ports
1x Intel® I219-LM Gigabit PHY LAN(supports Intel® AMT 15.0)
1x Intel® I225-LM Gigabit LAN (up to 2.5GbE)
USB
4x USB3.2 Gen2
Interne I/O
USB
2x USB2.0
Serial
2x RS-232
2x RS-232/422/485
SMBus
1x SMBus
LCD Connector
1x LCD inverter connector
PS/2
1x PS/1
Opslag
Opslag interface
SATA
2x SATA3
M.2
1x M.2 (Key M 2280) support PCIe Gen4 for NVMe
