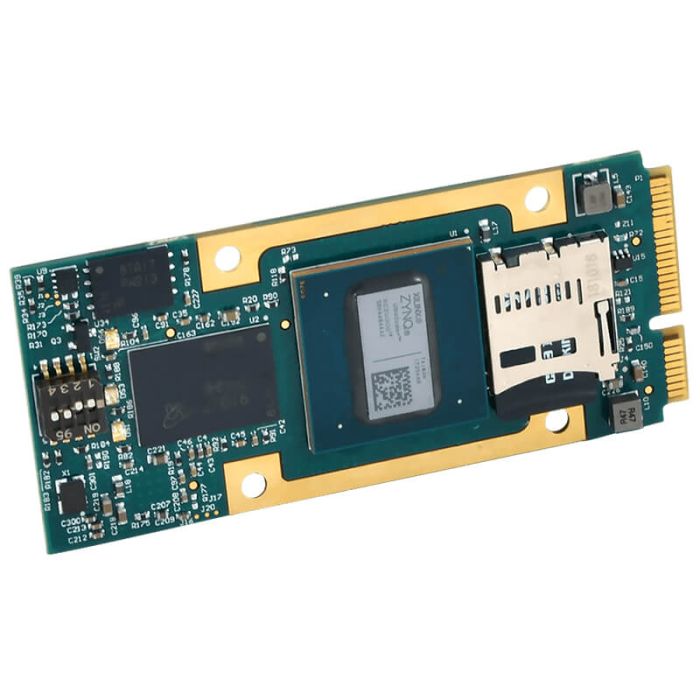

AcroPack 28x TTL channel (1.8V) module

SKU:

APZU-301

Fabrikant:

Acromag

Aantal poorten : 28
Type I/O : TTL
Bus Type : PCIe
Type Opsteekkaart : IndustryPack

AcroPack 28x TTL channel (1.8V) module

Note: Operating temperature
Air-cooled (with heat spreader): -40 to 70°C
(minimum airflow of 400LFM is recommended).
Conduction-cooled: -40 to 80°C.

Neem contact met ons op voor de levertijd

Voeg toe aan vergelijking

Details

Specificaties

Downloads

Specificaties

Belangrijkste eigenschappen

Kenmerken

Features
Zynq MPSoC
• Dual-core ARM Cortex A53-based application processor unit (APU)
• Dual-core ARM Cortex R5-based real-time processor unit (RPU)
• NEON™ media-processing engine
• UltraScale+ 154k programmable logic cells
• Extensive on-chip memory

I/O and Peripherals
• TTL, LVDS, or RS422/485 I/O interface
• Gigabit Ethernet interface
• USB 2.0 transceiver
• USB-UART debug terminal port

General
• PCI Express interface
• MicroSD or NOR flash boot
• Quad-SPI flash memory
• LPDDR4 storage memory
• DMA transfers
• BSP and FPGA design kit software
• VxWorks®, Linux®, and Windows® support

Poorten & Interfaces

Externe I/O	I/O Connector 68x Pin field I/O (to carrier board) Digital IO 28x TTL I/O channels (1.8V) Interrupts 20x channels of interrupts configurable for high-to-low, low-to-high, and change-of-state event types Ethernet 1x GbE Port (media independent interface (RGMII)) USB Interface 1x Microchip USB3320C UART to USB Interface 1x Silicon Labs CP2103GM
Aantal poorten	28
Type I/O	TTL

Mechanische specificaties

Bus Type PCIe
Afmetingen 70.0mm (L) x 30.0mm (W) x 12.5mm (H)
Board thickness: 1.0mm
Type Opsteekkaart IndustryPack
Omgeving specificatie

Opslag temperatuur -55°C/+125°C
Operating Temperatuur -40°C/+70°C
Relatieve luchtvochtigheid 5% to 95% non-condensing

Certificeringen

standaarden	Vibration, sinusoidal operating Designed to comply with IEC 60068-2-6. 10-500Hz, 5G, 2 hours/axis. Vibration, random operating Designed to comply with IEC 60068-2-64. 10-500Hz, 5G-rms, 2 hours/axis. Shock, operating Designed to comply with IEC 60068-2-27. 30G, 11ms half sine; 50G, 3mS half sine; 18 shocks at 6 orientations for both test levels.

Software support

Operating systeem Windows, Linux, VxWorks
Generieke data

Fabrikant Acromag
Garantie 24 Maanden

Downloads

datasheet	Acromag-APZU-User-Configurable-Zynq-UltraScale-MPSoC-IO.pdf
