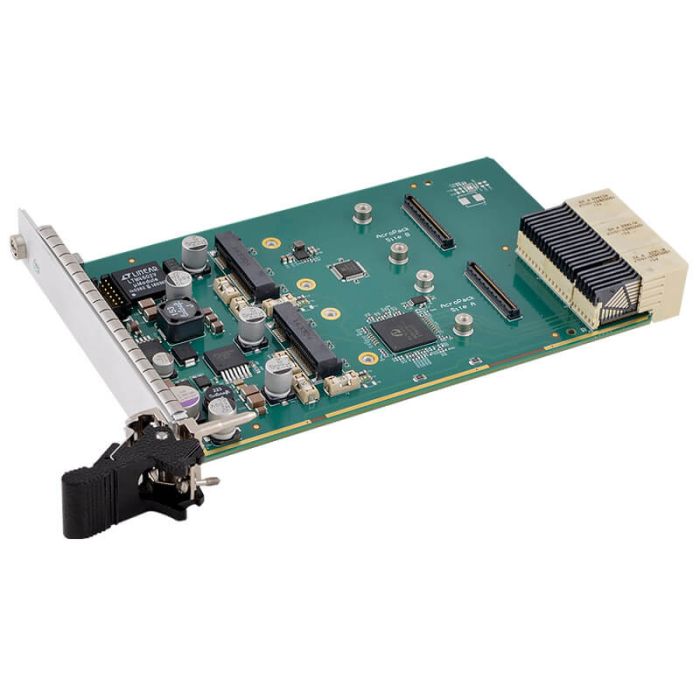

Features
• Two AcroPack or mini-PCIe module slots support any combination of I/O functions
• PCI Express Version 2.1 compliant carrier
• Compliant with PICMG CPCI-S.0 R2.0 standard
• PCIe switch allows two devices to share a single 4HP peripheral board slot in a CPCI-S chassis
• Geographical addressing identifies carrier location on the backplane
• Fused +1.5V, +3.3V, +5V, +12V, -12V DC power. A fuse is present on each supply line serving each AcroPack module.
• JTAG header for programming and debugging AcroPack modules with an FPGA
• Extended temperature range
• Software development tools for VxWorks®, Linux®, and Windows® environments
Poorten & Interfaces
Interne I/O
CompactPCI Serial
CompactPCI Serial (CPCI-S.0) peripheral slot card with P1 connector. PCIe x4. Geographical addressing (GA0-GA3).
PCI Express
PCIe Gen 2 switch expands host PCIe port to two ports, one for each AcroPack site. The host port has one or four PCIe lanes (depending on CPCI-S slot). Each AcroPack site has one lane.
AcroPack / Mini PCIe Mezzanine
Two AcroPack or mPCIe (full-length) slots. PCIe x1.Site B includes USB 2.0 interface.
Rear interface: Both AcroPack modules have a PCIe x1 link (via switch) to the CPCI-S P1 connector.
Field I/O
Fifty field I/O signals from each AcroPack are brought out to CPCI-S backplane connectors P2 and P3.
Mechanische specificaties
Bus Type
3U CompactPCI
Afmetingen
100.0mm (L) x 160.0mm (W)
Type Opsteekkaart
Mini PCIe
Electrische specificaties
Input range
Power Requirements +12V supply (±10%): 290mA typical with no AcroPacks installed.
Omgeving specificatie
Opslag temperatuur
-55°C/+125°C
Operating Temperatuur
-40°C/+85°C
Relatieve luchtvochtigheid
5% to 95% non-condensing
Certificeringen
standaarden
Shock, Operating
Designed to comply with IEC 60068-2-27: 30G, 11ms half sine, 50G, 3mS half sine, 18 shocks at 6 orientations for both test levels.
Vibration, Operating
Sinusoidal: Designed to comply with IEC 60068-2-6:
10-500Hz, 5G, 2 Hours/axis.
Random: Designed to comply with IEC 60068-2-64:
10-500Hz, 5G-rms, 2 Hours/axis.
