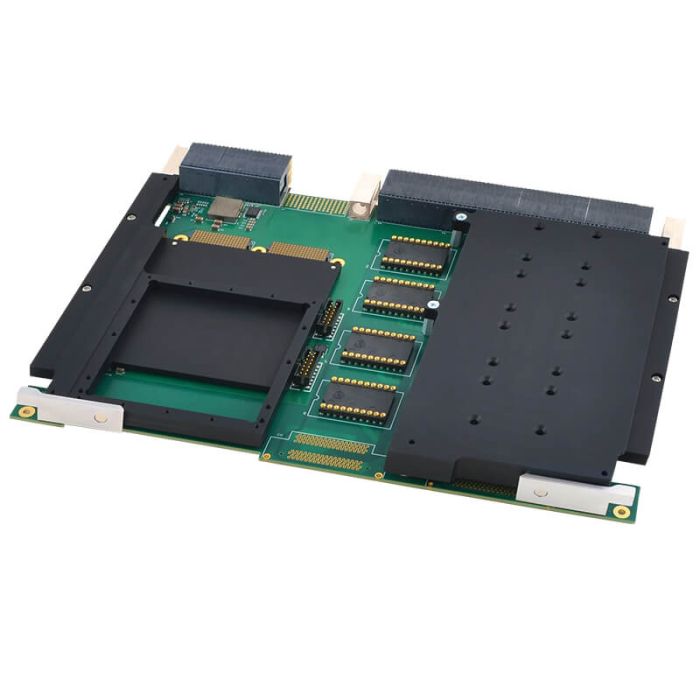

AcroPack VPX Carrier Data 4xAcroPack 1xVita 42 XMC cond-cool

SKU:

VPX4521-42-50

Fabrikant:

Acromag

Bus Type : 6U VPX
Type Opsteekkaart : XMC, Mini PCIe

AcroPack VPX Carrier Data 4xAcroPack 1xVita 42 XMC cond-cool

Note: For operational temperature range board must operate in a fully-installed conduction-cooled rack

Neem contact met ons op voor de levertijd

Voeg toe aan vergelijking

Details

Specificaties

Downloads

Specificaties

Belangrijkste eigenschappen

Kenmerken

Features
• OpenVPX™ compatable Data plane connection
• Support for upstream/downstream PCIe links
• Supports use of prXMC single board computers
• Optional backplane configuration for one 16-lane port, two 8-lane ports, or four 4-lane ports
• Supports standard VITA 42 and rugged VITA 61 XMC modules on 25W mezzanine site
• XMC site supports PCIe x8 Gen 3 interface
• 68 pin HD CHAMP front I/O connectors
• Supports 78-bits (39 pairs) of XMC I/O to backplane per pattern X38s+X8d+X12d of VITA 46.9
• Conforms to VITA 42.0, 42.3, 46.0, 46.4, 48, 65
• Supports front or rear panel XMC I/O
• Supports front or rear panel AcroPack I/O
• ±12V AUX power to XMC site

Poorten & Interfaces

Externe I/O	I/O Lines Rear I/O support for the AcroPack site with 50 I/O lines.(conduction-cooled only). XMC rear I/O compliance is P3w3-X38s+P4w1-X12d+x8d
Interne I/O	Mezzanine - VITA 42 XMC 1x VITA 42 XMC Module slot, XMC site is PCIe Gen 3 and 8 lanes wide AcroPacks 4x AcroPack modules

Mechanische specificaties

Bus Type 6U VPX
Afmetingen 160mm (L) x 233mm (W)
Type Opsteekkaart XMC, Mini PCIe
Omgeving specificatie

Opslag temperatuur -55°C/+125°C
Operating Temperatuur -40°C/+85°C
Relatieve luchtvochtigheid 5% to 95% non-condensing
Certificeringen

standaarden Vibration
Designed to comply with VITA 47 Class V1.

Shock
Designed to comply with VITA 47 Class OS1.
Generieke data

Fabrikant Acromag
Garantie 24 Maanden

Downloads

datasheet	Acromag-VPX4521_VPX-6U-Carrier-Data-Plane-for-XMC-and-AcroPack_Modules.pdf

Prijs op aanvraag
