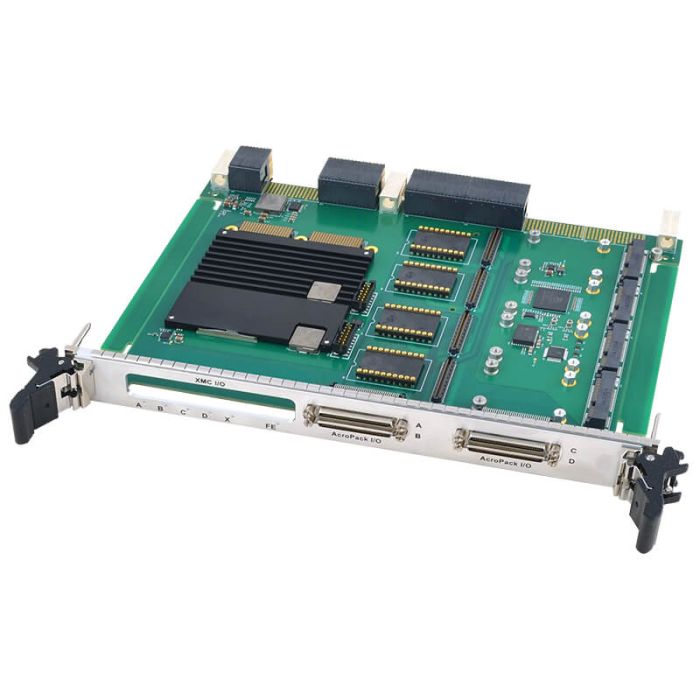

AcroPack VPX Carrier Exp 4xAcroPack 1xVita 61 XMC ext-temp

SKU:

VPX4520-61-30

Fabrikant:

Acromag

Bus Type : 6U VPX
Type Opsteekkaart : XMC, Mini PCIe

AcroPack VPX Carrier Exp 4xAcroPack 1xVita 61 XMC ext-temp

Neem contact met ons op voor de levertijd

Voeg toe aan vergelijking

Details

Specificaties

Downloads

Specificaties

Belangrijkste eigenschappen

Kenmerken

Features
• OpenVPX™ compatible via expansion plane connection
• Support upstream/downstream PCIe links
• Supports use of prXMC single board computers
• Optional backplane configuration for one 16-lane port, two 8-lane ports, or four 4-lane ports
• Supports standard VITA 42 and rugged VITA 61 XMC modules on 25W mezzanine site
• XMC site supports PCIe x8 Gen 3 interface
• 68 pin HD CHAMP front I/O connectors
• Supports 78-bits (39 pairs) of XMC I/O to backplane per pattern X38s+X8d+X12d of VITA 46.9
• Conforms to VITA 42.0, 42.3, 46.0, 46.4, 48, 65
• Supports front or rear panel XMC I/O
• Supports front or rear panel AcroPack I/O
• ±12V AUX power to XMC site

Poorten & Interfaces

Externe I/O	CHAMP Front panel I/O support for each AcroPack site with 68-pin CHAMP connector (air-cooled only). Front IO for XMC Front panel I/O support for XMC module (air-cooled only).
Interne I/O	Mezzanine - VITA 61 XMC 1x VITA 61 XMC Module slot, XMC site is PCIe Gen 3 and 8 lanes wide AcroPacks 4x AcroPack modules

Mechanische specificaties

Bus Type 6U VPX
Afmetingen 160mm (L) x 233mm (W)
Type Opsteekkaart XMC, Mini PCIe
Omgeving specificatie

Opslag temperatuur -55°C/+125°C
Operating Temperatuur -40°C/+85°C
Relatieve luchtvochtigheid 5% to 95% non-condensing
Certificeringen

standaarden Vibration
Designed to comply with VITA 47 Class V1.

Shock
Designed to comply with VITA 47 Class OS1.
Generieke data

Fabrikant Acromag
Garantie 24 Maanden
