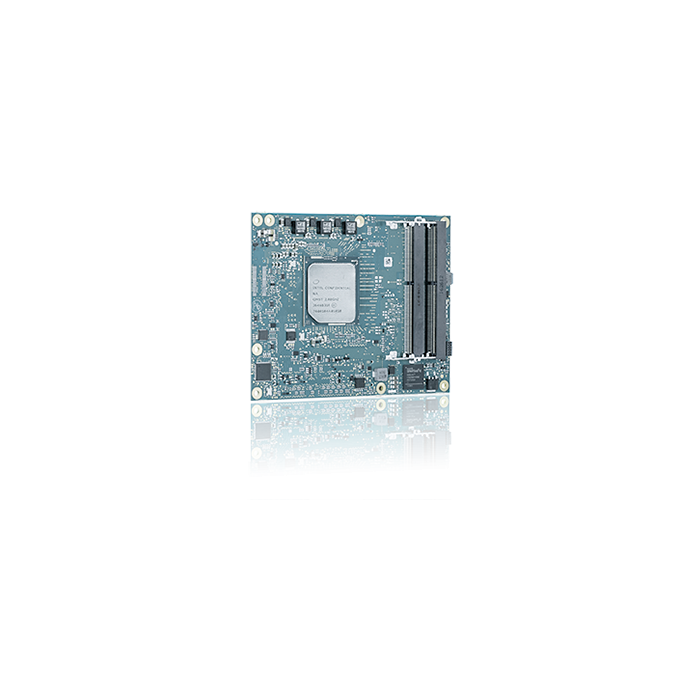

Computer on ModuleCOM Express® basic pin-out type 7, C3558

SKU:

COME-BDV7 C3558

Processor : Intel Atom
Max geheugen : 64GB
System on module : Com Express Basic
Operating Temperatuur : 0°C/+60°C

Neem contact met ons op voor de levertijd

Voeg toe aan vergelijking

Details

Specificaties

Downloads

Specificaties

Processor

Processor Intel Atom
Processor serie Denverton
Basisfrequentie 2,2 GHz
Aantal cores 4
TDP 16 W
Geheugen

Geheugentype DDR4
Geheugenslots 2
Max geheugen 64GB

Belangrijkste eigenschappen

Kenmerken	• Entry level server-grade platform • Quad 10 GbE interfaces • High-speed connectivity PCIe 3.0, SATA3, USB 3.0 • Up to 128GB DDR4 memory • Industrial grade versions • Support of Kontron’s Embedded Security Solution - APPROTECT

Poorten & Interfaces

serial ATA interface	Up to 2x SATA3, 6Gb/s
Interne I/O	• 1x 10/100/1000 MBit Ethernet: Up to 4x 10GbE Interfaces (KR) – depending on C3000 SKUNC-SI support • Up to 14x PCIe 3.0 lanes - depending on C3000 SKU • Up to 3x USB 3.0, 4x USB 2.0 (3x USB 2.0 with Security chip populated) • 2x serial interface (RX/TX only)

Opslag

Opslag interface	Hard Disk • Up to 2x SATA3, 6Gb/s Flash Onboard • eMMC 5.0 up to 64 GByte SLC or 128 GByte MLC (build option)

Mechanische specificaties

System on module Com Express Basic
Electrische specificaties

Input range ATX, 8.5 V – 20 V Wide Range, Single Supply Power

Omgeving specificatie

Opslag temperatuur	-30°C to +85°C
Operating Temperatuur	0°C/+60°C
Relatieve luchtvochtigheid	93% at 40°C non-condensing (according to IEC 60068-2-78)

Certificeringen

certificaten

EMC Emission: EN 55032 (CISPR 32) Electromagnetic compatibility of multimedia equipment- emission requirementsIEC/ EN 61000-3-2: Limits for harmonic current emissionsIEC/ EN 61000-3-3: Limits for Voltage changes, voltage fluctuations and flicker

Immunity: EN 55024 (CISPR 24) Information Technology Equipment- Immunity characteristics- Limits and methods of measurementsEN 61000-6-2 Generic Standards immunity for industrial environments + CENELEC – Cor

Safety/CE EN/IEC 62368-1Safety requirements for audio/video, information, and communication technology equipmentUL 60950-1/CSA 60950-1 (component recognition)Information Technology Equipment Including Electrical Business EquipmentNWGQ2.E304278NWGQ8.E304278

Shock IEC/EN 60068-2-27 Non-operating shock – (half-sinusoidal, 11 ms, 15 g)

Vibration IEC/EN 60068-2-6 Non-operating vibration – (sinusoidal, 10 Hz – 2000 Hz, +/- 0.15 mm, 2 g)

RoHS directive 2011/65/EU Restriction of Hazardous substance in electrical and Electronic Equipment (RoHS)

WEEE Directive 2012/19/EUWaste Electrical and Electronic Equipment (WEEE)

REACH Regulation (EC) No. 1907/2006Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Software support

Operating systeem Linux, Windows® Server 2012/2016
Generieke data

Marktsegment Automation
Garantie 24 Maanden

Downloads

Handleiding	come-bdv7_user-guide_rev-1.5_2019-09-19.pdf
datasheet	come-bdv7_20190205_datasheet.pdf

€ 417,45 € 345,00
