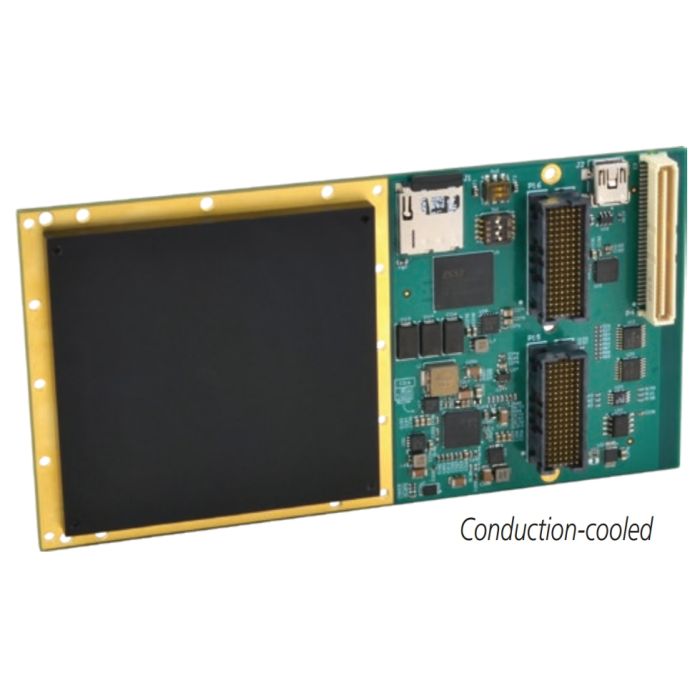

XMC module XCZU5EV Rear I/O VITA 42 conduction cooled

SKU:
XMC-ZU5EV1-42-50
Fabrikant:
Acromag
  • Processor : ARM
  • Max geheugen : 4GB
  • Type SBC : XMC Board
  • Operating Temperatuur : -40°C/+85°C
FPGA Module Zynq UltraScale+ 5EV MPSoC. Rear I/O Cond.cooled

Note: This model uses VITA 42 connectors
Neem contact met ons op voor de levertijd
Details
Specificaties
Downloads

XMC-ZU Series: Configurable AMD Zynq® UltraScale+TM MPSoC with Plug-In I/O Description

XMC-ZU series modules provide a programmable AMD Zynq UltraScale+ multiprocessor system on a chip (MPSoC). This MPSoC combines a feature-rich ARM-based processing system and programmable logic in a single device. A quad-core A53 application processor and dual-core R5 real-time processor deliver high-performance computation capability. Additional resources include on-chip memory, external memory interfaces, and a rich set of peripheral connectivity interfaces. The integrated ASIC-class programmable logic is ideal for compute-intensive tasks and offloading critical applications.

An AXM-Z01 expansion I/O module plugs in to bring out the processor peripherals through DisplayPort, USB 3.0, RJ45 and USB UART ports. A number of high-speed serial and LVDS I/O interfaces are also provided. Other AXM mezzanine modules are compatible to provide a variety of analog and digital I/O interfaces.

High-speed serial lanes route PCIe, Serial RapidIO and 10-Gigabit Ethernet signals to the rear XMC P15 connector. High performance signals from the programmable logic are configurable as LVDS I/O or global clocks are accessible on the P4 and P16 rear connectors.

The real value of the Zynq UltraScale+ MPSoC architecture lies in the tight integration of its programmable logic with the processing system. Its high throughput interface eliminates bottlenecks that plague two-chip ASSP-FPGA solutions and allows designers to easily extend the processing system capabilities. Now developers can build custom designs by adding peripherals in the programmable logic and increase overall system performance by partitioning hardware and software functions with custom accelerators.

Designed for COTS applications these MPSoC I/O modules deliver user-customizable I/O in a high-density and very rugged form factor. Typical applications involve adaptive filtering, sensor fusion, motor control, and image processing.

Acromag’s Engineering Design Kit (EDK) provides example designs that provides host access to the hardware I/O. The examples are implemented using the AMD Vivado® development environment and offer a starting point from which customers can develop their customized applications. Vitis® and PetaLinux® examples are also provided.
Specificaties
  • Processor
    ProcessorARM
    Processor serieAMD Zynq UltraScale+ MPSoC
    BasisfrequentieApplication CPU: Quad-Core ARM Cortex-A53, up to 1.5GHz
    Real-Time CPU: Dual-Core ARM Cortex-R5, up to 600MHz
    Aantal cores4
    chipsetSoC
  • Geheugen
    GeheugentypeDDR4
    Max geheugen4GB
  • Video
    ChipsetMali™-400 MP2 up to 667MHz
  • Belangrijkste eigenschappen
    KenmerkenFeatures
    Zynq MPSoC
    • Quad-core ARM Cortex A53-based application processing unit (APU)
    • Dual-core ARM Cortex R5-based real-time processor unit (RPU)
    • MaliTM-400 GPU
    • H.264/265 video codec
    • UltraScale+ 256k programmable logic cells
    • Extensive on-chip memory

    General
    • PCI Express Gen 3 interface
    • MicroSD or NOR flash boot
    • Dual Quad-SPI flash memory
    • 4GB DDR4 storage memory
    • DMA transfers
    • BSP and MPSoC design kit software
    • VxWorks®, Linux®, and Windows® support
  • Uitbreidingsmogelijkheden
    Uitbreiding slotsPCIExpress Interface
    1x PCIe x4 Gen3 Interface
  • Poorten & Interfaces
    Externe I/OFront I/O to Programmable Logic
    44x differential I/O
    4x single-ended I/O
    2x differential clocks

    Rear I/O
    P15: 4 high-speed (12.5Gb/s) serial lanes for PCIe, Serial RapidIO, or 10GbE.
    P16: 17 LVDS pairs (34 LVCMOS), 2 global clock pairs
    P4: 30 LVDS pairs (60 LVCMOS), 2 global clock pairs
  • Opslag
    Opslag Capaciteit64 GB
    Opslag interfaceeMMC Flash
    1x 64GB eMMC

    SD Card
    1x 16GB Industrial MLC microSD card pre-programmed with boot.bin
  • Mechanische specificaties
    Type SBCXMC Board
  • Omgeving specificatie
    Opslag temperatuur-55°C/+125°C
    Operating Temperatuur-40°C/+85°C
    Relatieve luchtvochtigheid5% to 95% non-condensing
  • Generieke data
    FabrikantAcromag
    MarktsegmentAutomation
    Garantie24 Maanden
