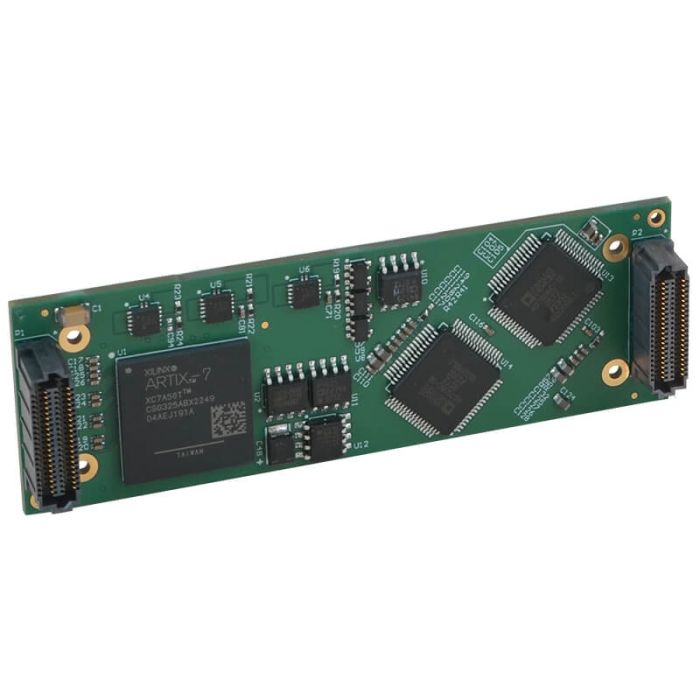

QMC Module 20-CH Anal. IN 16-bit A/D conv. VITA 93 QMC cond

SKU:

QMC352-3111

Fabrikant:

Acromag

Bus Type : PCIe
Type Opsteekkaart : QMC

QMC Module 20-CH Anal. IN 16-bit A/D conv. VITA 93 QMC cond

Neem contact met ons op voor de levertijd

Voeg toe aan vergelijking

Details

Specificaties

Downloads

Specificaties

Belangrijkste eigenschappen

Kenmerken

Features
• 20 analog input channels
• Individual 16-bit ADC on each channel
• Simultaneous Sampling ADC with 1MSPS sampling rate (1MHz)
• Software-selectable input voltage range
• Input ranges selectable per-channel with 12 unipolar/bipolar voltage range options
• Single-ended analog input ranges:
0-5V, 0-10V, 0-12.5V, ±2.5V,
±5V, ±6.25V, ±10V, ±12.5V
• Differential pair input ranges:
±5V, ±10V, ±12.5V, ±20V
• Two bandwidth options:
25KHz and 220KHz
• ±21 input clamp on all channels
• 1M Ω input on all channels
• Reliable software calibration with coefficients stored on-board
• Individual selection and updating of analog input channels
• Failsafe reset
• Extended temperature range and support for conduction-cooled systems

Poorten & Interfaces

Externe I/O	Input Channel Configuration 20x differential or single-ended analog inputs Analog input ranges Selectable on individual channel basis Bipolar single-ended: ±12.5 V, ±10 V, ±6.25 V, ±5 V, ±2.5 V Unipolar single-ended: 0 V to 12.5 V, 0 V to 10 V, 0 V to 5 V. Bipolar differential: ±20 V, ±12.5 V, ±10 V, ±5 V
Interne I/O	VITA 93 QMC 2x high-performance 80-pin connectors provide separate field I/O and PCIe bus host interfaces

Mechanische specificaties

Bus Type PCIe
Afmetingen 78.25mm (L) x 26.00mm (W) x 11.00mm (H)
Type Opsteekkaart QMC
Omgeving specificatie

Opslag temperatuur -55°C/+125°C
Operating Temperatuur -40°C/+85°C
Relatieve luchtvochtigheid 5% to 95% non-condensing
Software support

Operating systeem Windows, Linux, VxWorks
Generieke data

Fabrikant Acromag
Garantie 24 Maanden

Downloads

datasheet	QMC350-Analog-Input_20-Channel_16-Bit_AD_Module.pdf

Prijs op aanvraag
