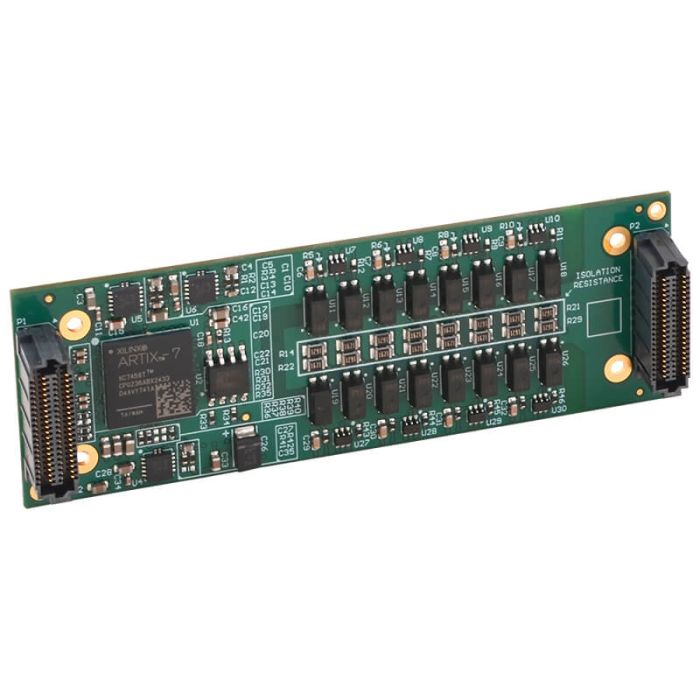

QMC Module 32x iso Digital Input ±38V~±60V VITA 93 QMC cond

SKU:

QMC442-3111

Fabrikant:

Acromag

Aantal poorten : 32
Type I/O : Digitale I/O
Bus Type : PCIe
Type Opsteekkaart : QMC

QMC Module 32x iso Digital Input ±38V~±60V VITA 93 QMC cond

Neem contact met ons op voor de levertijd

Voeg toe aan vergelijking

Details

Specificaties

Downloads

Specificaties

Belangrijkste eigenschappen

Kenmerken

Features
• 32 port-isolated input channels
• Low, medium, and high voltage versions:
- ±4 to ±18V input
- ±16 to ±40V input
- ±38 to ±60V input
• Interrupt support for each channel
• Programmable event interrupts (change-of-state, low-to-high, high-to-low)
• Programmable debounce
• Input hysteresis
• Reverse polarity protection
• Software configured (no jumpers/switches) allowing “on-the-fly” changes without removing modules
• Pins are compatible with QMC450 output module for loopback monitoring
• Loopback monitoring enables self-test and fault detection of open switches or shorts
• Extended temperature range and support for conduction-cooled systems

Poorten & Interfaces

Externe I/O	digital I/O 32x optically isolated bipolar inputs
Interne I/O	VITA 93 connector 2x high-performance 80-pin connectors provide separate field I/O and PCIe bus host interfaces
Aantal poorten	32
Type I/O	Digitale I/O

Mechanische specificaties

Bus Type PCIe
Afmetingen 78.25mm (L) x 26.00mm (W) x 11.00mm (H)
Type Opsteekkaart QMC
Omgeving specificatie

Opslag temperatuur -55°C/+125°C
Operating Temperatuur -40°C/+85°C
Relatieve luchtvochtigheid 5% to 95% non-condensing
Software support

Operating systeem Windows, Linux, VxWorks
Generieke data

Fabrikant Acromag
Garantie 24 Maanden

Downloads

datasheet	QMC440-Isolated-Digital-Input-Module_Air-or-Conduction-Cooled.pdf
