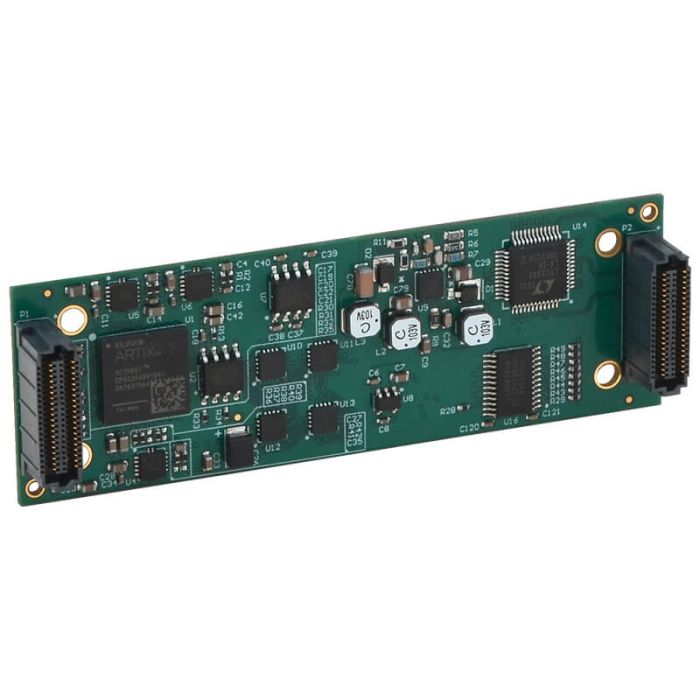

QMC Module Analog- & Digital-I/O VITA 93 QMC cond

SKU:

QMC732-1111

Fabrikant:

Acromag

Aantal poorten : 16+4+16
Type I/O : Analog IO & Digital IO & Counter
Bus Type : PCIe
Type Opsteekkaart : QMC

QMC Module Analog- & Digital-I/O VITA 93 QMC cond

Neem contact met ons op voor de levertijd

Voeg toe aan vergelijking

Details

Specificaties

Downloads

Specificaties

Belangrijkste eigenschappen

Kenmerken

Features
• Eight analog input channels with 16-bit A/D
- 1.264µs conversion time (791KHz)
- 1026 sample FIFO buffer
- Unipolar and bipolar voltage ranges
- Input range selectable for each channel
• Four analog output channels with 16-bit D/A
- 7.5µs output settling time
- Individually configured operating mode
- Direct, single, continuous, or FIFO mode
- Software, timer, or external trigger
- Unipolar and bipolar voltage ranges
- Output range selectable for each channel
• Sixteen digital input/output channels
- TTL-compatible thresholds
- Programmable change/level interrupts
- Failsafe power-up and reset
• Multi-function 32-bit counter/timer
- Waveform generation
- Event counting
- Watchdog timing
- Pulse-width or period measurement
- Quadrature position measurement
• Extended temperature range and support for conduction-cooled systems

Poorten & Interfaces

Externe I/O	Analog Input 8x differential, voltage (non-isolated), 16 bits, high-speed A/D conversion Analog Output 4x single-ended voltage (non-isolated), 16 bits, individually configured Digital I/O 16x digital input/outputs, configured as TTL-level input or output in groups of eight channels. Counter / Timer 32x Multi-function, high-resolution counter/timer supports a variety of measurement options
Interne I/O	VITA 93 connector 2x high-performance 80-pin connectors provide separate field I/O and PCIe bus host interfaces
Aantal poorten	16+4+16
Type I/O	Analog IO & Digital IO & Counter

Mechanische specificaties

Bus Type PCIe
Afmetingen 78.25mm (L) x 26.00mm (W) x 11.00mm (H)
Type Opsteekkaart QMC
Omgeving specificatie

Opslag temperatuur -55°C/+125°C
Operating Temperatuur -40°C/+85°C
Relatieve luchtvochtigheid 5% to 95% non-condensing
Software support

Operating systeem Windows, Linux, VxWorks
Generieke data

Fabrikant Acromag
Garantie 24 Maanden

Downloads

datasheet	QMC730_Multi-function-Analog-and-Digital-IO-Module_Air-or-Conduction-Cooled.pdf
