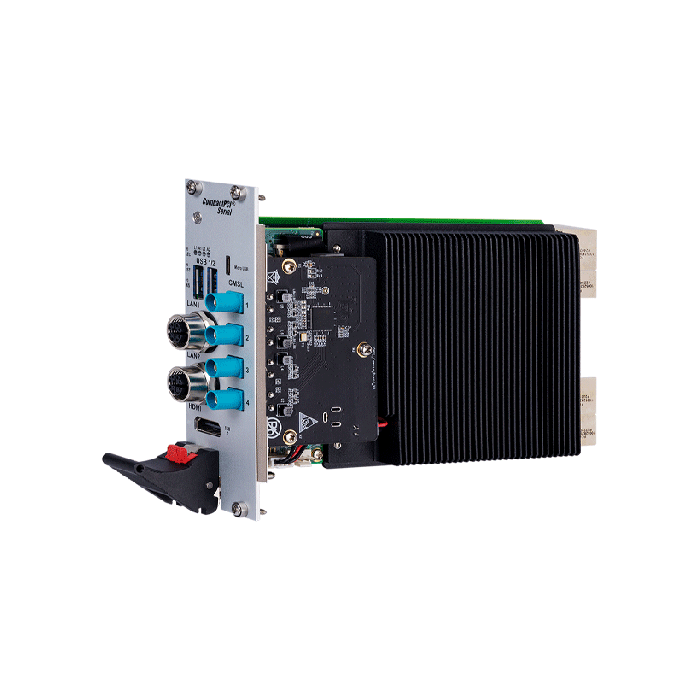

3U CPCI-Serial AI Inf. Board NV Jetson AGX Orin 32GB 4GMSL

SKU:

MIC-332-AOG32

Fabrikant:

Advantech

Neem contact met ons op voor de levertijd

Details

Specificaties

Processor

Processor NVIDIA Jetson
Processor serie NVIDIA® Jetson AGX Orin™
Aantal cores 8
chipset SoC
Geheugen

Geheugentype LPDDR5
Max geheugen 32GB
Video

Aansluitingen HDMI
1x HDMI2.0, 3840x2160, @60Hz
Chipset 1792-core NVIDIA Ampere GPU with 56 Tensor Cores

Belangrijkste eigenschappen

Kenmerken	• 3U CPCI-S Computing card for Edge AI • Embedded with NVIDIA® Jetson AGX Orin™ up to 275 TOPS • Supports GbE, 2 x USB 3.2 Gen 2 (10 Gbit/s), 1 x HDMI on 4HP • Supports 1 x DB9, 1 x micro USB on 8HP I/O-1 • Supports 4 x GMSL2.0, 1 x micro USB on 8HP I/O-2 • On-board PCIe 3.0 x4 M.2 M key storage • Rich I/O resources (PCIe3.0 x8, GbE and 10GbE) connected to a backplane

Poorten & Interfaces

LAN poorten	2
USB 2.0 poorten	1
USB 3.x poorten	2
Externe I/O	Ethernet 2x M12 X-coded 2.5GbE USB 2x USB 3.2 Gen2 @10 Gbps, Type A 1x Micro-USB GMSL Port 4x GMSL 2.0 port
Interne I/O	to CPCI-S Backplane Resources P1 - 1x I2C, 1x PCIe3.0 x4 of lower 4-Lane P2 - 1x PCIe3.0 x4 of upper 4-Lane P5 - 1x PCIe clock, 1x PCIe clock REQ P6 - 1x GbE, 1x 10 GbE

Opslag

Opslag interface M.2
1x M.2 2242 M-Key, NVMe, PCIe x4
Mechanische specificaties

Type SBC CompactPCI serial
Bus Type 3U CompactPCI Serial

Omgeving specificatie

Opslag temperatuur	-40°C/+85°C
Operating Temperatuur	-25°C/+70°C
Relatieve luchtvochtigheid	Operating: 95% @ 40°C, non-condensing non-Operating: 95% @ 60°C, non-condensing

Certificeringen

certificaten	Vibration 2Grms, random (5 Hz ~ 500 Hz) Shock 10G, 11ms, each axis three times during operation mode Regulatory Certification CE, FCC, UKCA, RoHS Design to Meet EN50155, EN50121-4 Compliance Standards PICMG® CompactPCI® Serial

Software support

Operating systeem Linux Kernel 5.15, Ubuntu 22.04, Jetpack 6.2
Generieke data

Fabrikant Advantech
Marktsegment Automation

Prijs op aanvraag
