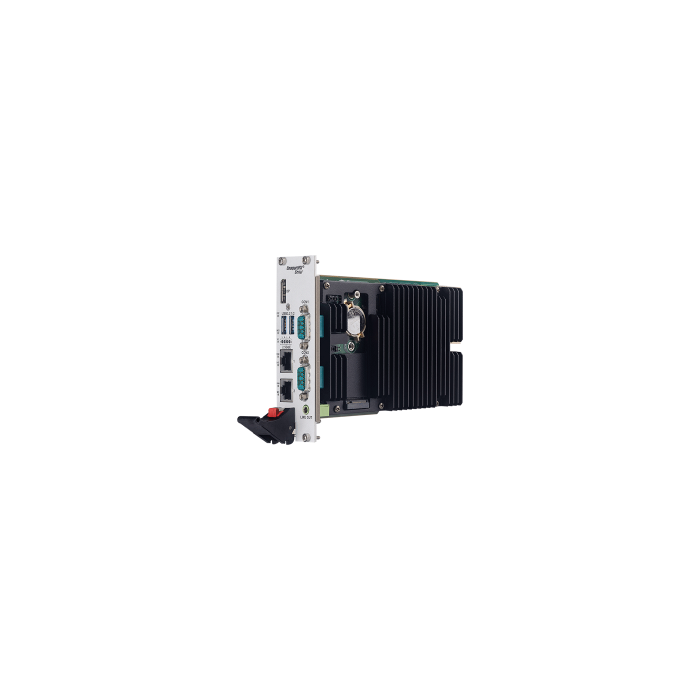

3U CPCI-Serial Intel x7433RE 4C 16GB 2LAN 2USB 2COM M.2

SKU:

MIC-336-A1D1

Fabrikant:

Advantech

Processor : Intel Atom
Max geheugen : 16GB
Type SBC : CompactPCI serial
Operating Temperatuur : -40°C/+70°C

3U CPCI-Serial Intel x7433RE 4C 16GB 2LAN 2USB 2COM M.2

Neem contact met ons op voor de levertijd

Voeg toe aan vergelijking

Details

Specificaties

Processor

Processor Intel Atom
Processor serie Amston Lake
Basisfrequentie max. 3.4GHz
Aantal cores 4
TDP 9W
chipset SoC
Geheugen

Geheugentype DDR5
Max geheugen 16GB
Video

Aansluitingen DisplayPort
1x DisplayPort, 4096x2160 @60Hz
Chipset Intel® UHD Graphics

Belangrijkste eigenschappen

Kenmerken

• Intel® Atom X7433RE/ X7835RE platform
• Max 16GB DDR5 4800 MT/s, with ECC
• 1x DP, 2x USB3.2, 2x 2.5GbE RJ45/M12 LAN ports on front 4HP panel
• 2x COM, 1x Line out on front 8HP panel
• 1x On board SATA 3.0/PCIe 2.0 M.2 storage connector on XTM board, Compatible with 2280/2242 size
• Reserved 1x 64G eMMC 5.1 storage , 1x TPM2.0, 1x wafer for USB 2.0 function
• Supports fanless application with optimized heatsink design
• Designed to meet EN50121-4 and EN50155
• PICMG CompactPCI Serial(CPCI-S.0 R2.0) compliant

Poorten & Interfaces

LAN poorten	2
Seriele poorten	2
USB 3.x poorten	2
Externe I/O	Ethernet 2x 2.5GBASE-T RJ45 on front panel USB 2x USB3.2 Gen1 Serial 2x COM Ports, DB9
Interne I/O	CompactPCI Serial Backplane Resources PCI-Express 4x PCIe x1 USB 1x USB3.2 @ 5Gbps speed 4x USB2.0 @ 480MHz speed SATA Port 1x SATA 3.0 Ethernet 1x 2.5 GbE to backplane via P6 To P1-P6 Signal P1 - 1x PCIe3.0 x1, 1x SATA 3.0, 1x USB3.2 gen1, 1x USB2.0, reserve 1x I2C, SMBUS P2 - 1x PCIe3.0 x1, 3x USB2.0, 1x UART, reserve 5x GPIO P3 - na P4 - 2x PCIe2.0 x1 P5 - 4x PCIe clock REQ P6 - 1x 2.5GbE

Opslag

Opslag interface M.2
1x onboard 2280/2242 M.2 type module( (M-key socket), SATA 3.0
1x channel to CPCI-S backplane
Mechanische specificaties

Type SBC CompactPCI serial
Bus Type 3U CompactPCI Serial

Omgeving specificatie

Opslag temperatuur	-40°C/+85°C
Operating Temperatuur	-40°C/+70°C
Relatieve luchtvochtigheid	Operating: 95% @40 °C, non-condensing non-Operating: 95 % @ 60 °C, non-condensing

Certificeringen

certificaten	Vibration 2Grms Shock 10G, 11ms, each axis three times, operation mode Regulatory Conformance FCC Class A, CE, RoHS Compliance Standards PICMG® CompactPCI® Serial

Software support

Operating systeem Windows 11, Windows 10, Ubuntu 22.04, Vxworks
Generieke data

Fabrikant Advantech
Marktsegment Automation

Prijs op aanvraag
