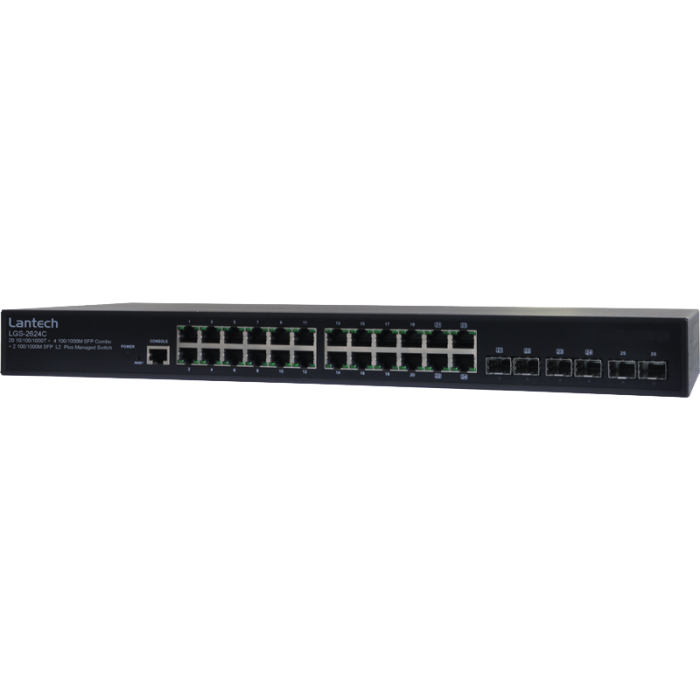

20x 10/100/1000T +4x 100/1000M +2x 100/1000M Managed Switch

  • Fabricant : Lantech
  • Commutateur de type : Managed Switch

Lantech LGS-2624C is a 20-port 10/100/1000 Base-TX + 6 100 /1000M SFP L2 managed switch that support full SNMP features, such as QoS for 4 queues, 801.q VLAN, IPv6, IGMP snooping and query mode as well as SNTP and SMTP. This industrial DNV type switch features advanced security functions including SSH, SSL, RADIUS and TACACS+ authentication, PVE, ACLs as well as supports IP Source Guard to anti-fake DHCP server or illegal IP address to access the network. With advanced SNMP and security functions, the Lantech LGS-2624C is utmost suitable to connect with an IP Camera, Setup box, VoIP phone/router, Wireless Equipment for MTU, Transportation or Surveillance applications. Lantech DNV-Type Approval LGS-2624C-DNV* model meets with the most critical test criteria in DNV Type test directives consisting of MED (Marine Equipment Directive), EMC (Electromagnetic Compatibility Directive) and LVD (Low Voltage Directive). These directives take the following into account: vibration, high voltage, compass safe distance, salt mist tests and humidity. Test have been conducted to ensure that the Lantech LGS-2624C switch sustains the harsh on-board environments that are often being faced on Ships, Crafts and Offshore platforms.

Veuillez nous contacter pour le délai de livraison.
  • Caractéristiques principales
    caractéristiques• Advanced L2 + SNMP Management
    • Supports IPv4 & IPv6,MSTP ,SSH/SSL, TACAS+, ACLs
    • Support IGMP v3 andProxy, MVR
    • IEEE 802.3az for Energy Efficient Ethernet Task Force
    • DNV Type**Approved for Ships, Craft and Off-shore Platforms
  • Ports et interfaces
    Interface LAN20
    PoE disponibleNee
    Jumbo frameup to 9KB supported on Gigabit interfaces(defaultenabled)
    Sécurité de cryptageThe switch features advanced security function including SSH, SSL, RADIUS and TACACS+ authentication, PVE, ACLsas well as supports IP Source Guard to anti-fake DHCP server or illegal IP address to access the network.
  • Spécifications mécaniques
    Dimensions442mm(W ) x 170.3mm (D) x44mm (H)
  • Spécification environnementale
    température de fonctionnement-20°C/+60°C
    humidité relative10%~90% (Non-condensing)
  • Certificats
    normesIEEE Standard

    • IEEE 802.3 10BASE-T Ethernet
    • IEEE 802.3u 100BASE-TX Fast Ethernet
    • IEEE 802.3ab 1000Base-T
    • IEEE 802.3z Gigabit Fiber
    • IEEE802.1p COSIEEE 802.3x Flow Control and Back-pressure
    • IEEE802.1xRADIUS authentication
    • IEEE 802.1d Spanning Tree
    • IEEE 802.1w Rapid Spanning Tree
    • IEEE 802.3ad Port trunk with LACPIEEE802.3az Energy Efficient Ethernet Task Force
    • IEEE802.1q VLAN Tagging
    • IEEE802.1ab Link Layer Discovery(LLDP), LLDP

    • EN 60950-1 (LVD)
    Safety Testing
    • EC60068-2-6 (Vibration)

    • FCC Part 15 (CFR47) Class A
    • CE EN55022
    • CE EN55024
    • CE EN61000-3-2
    • CE EN61000-3-3
    • CE EN61000-4-2
    • CE EN61000-4-3
    • CE EN61000-4-4
    • CE EN61000-4-5
    • CE EN61000-4-6
    • CE EN61000-4-8
    • CE EN61000-4-11
  • Données GENERALES
    Garantie36 Maanden
  • datasheetD-LGS-2624C.pdf
