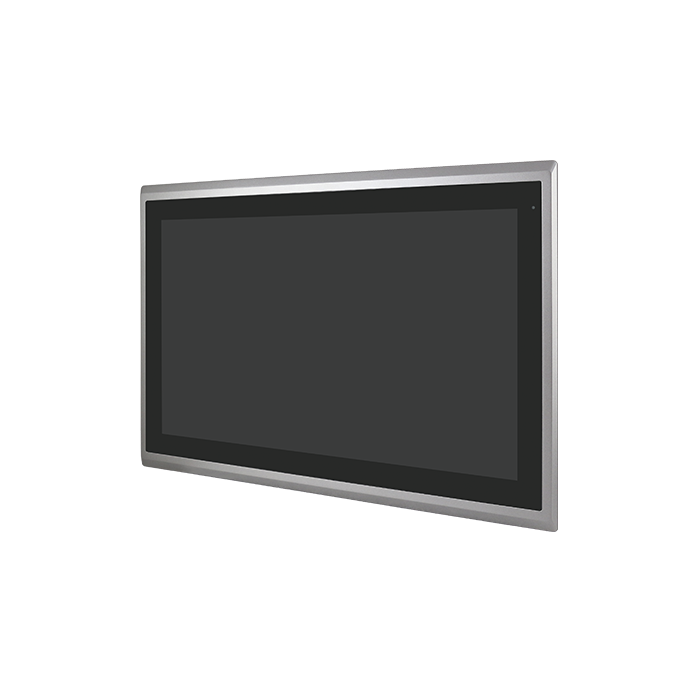

21.5" FHD fanless HMI J6412 PCAP 1xDDR4 Slot 9V~36V DC

SKU:
ARCHMI-S-821BP
Fabrikant:
Aplex
  • Application : Digital signage, IoT
  • taille de l'écran : 21,5"
  • type d'écran tactile : Capacitive Touch
  • type de processeur : Celeron
21.5" FHD fanless HMI J6412 PCAP 1xDDR4 Slot 9V~36V DC
Veuillez nous contacter pour le délai de livraison.
Détails
Spécifications
Téléchargements
APLEX’s ARCHMI-S-8XXB series
APLEX’s ARCHMI-S-8XXB series products are a newly launched product line, ranging in size from 10.1” to 23.8”. They feature a fanless, low-power, and compact design, making them suitable for use as HMI and control panels in smart production lines and self-service kiosks. With a protective aluminum enclosure, fullplane resistive touchscreen or projected capacitive multi-touchscreen technology, wireless capabilities, and multiple I/O options, the high-performance ARCHMI-S-8XXB series devices can also be integrated with a wide range of optional peripherals and accessories according to specific application requirements.
Spécifications
  • écran
    taille de l'écran21,5"
    type d'écran tactileCapacitive Touch
    Rapport de contraste1000:1
    Luminance (cd/m2)250
    Angle de vue (H/V°)178(H) / 178(V)
    résolution maximale de l'écran1920 x 1080
  • processeur
    type de processeurCeleron
    Série de processeursElkhart Lake
    Socket typeBGA1493
    Fréquence de base2.00 GHz
    Nb. de cœurs4
    TDP10W
  • Mémoire
    Type de mémoireDDR4 SO-Dimm
    Emplacements de mémoire1
  • Carte vidéo
    Les liensDisplayPort
    1 x DP, support DP++
    ChipsetIntel® UHD Graphics for 10th Gen Intel® Processors
  • Caractéristiques principales
    caractéristiques• 21.5" Industrial Compact Size Panel PC
    • Flat Front Panel Touch Screen with IP66 Front Bezel
    • Support Expansion via Full-size Mini-PCIe and M.2 slots
    • Intel Celeron J6412 Processor
    • 1 x 260-pin SO-DIMM DDR4 slot, up to 32GB 3200MHz
    • Support TPM2.0 Hardware Security
    • DC 9~36V Wide Range Power Input
    • High Brightness 1,000 nits for option
  • Expansion
    slots d'extensionMini-PCIe
    1 x Mini-PCIe slot (full size)
  • Ports et interfaces
    Interface LAN2
    USB 2.0 les ports2
    Ports USB 3.x2
    Externe I/OLan
    2 x 2.5GbE LAN RJ-45 (I226)

    Serial
    1 x RS-232/422/485 (Default RS-232; select via BIOS)

    USB
    2 x USB 3.2 Gen2 type A
    2 x USB 2.0 type A
  • Capacité de stockage
    interface de stockageM.2
    1 x M.2 B-Key slot (Support SATA3 2242/2280, Default 2242)
  • Spécifications mécaniques
    Dimensions 557.3 x 362.3 x 64.8 mm
    des poulets à certains critèresAluminum housing
    MontagePanel Mount, VESA 100 x 100
  • Caractéristiques du produit
    Le poids7.11 kg
  • Spécifications électriques
    plage d'entréeDC 9~36V
    Power consumption 50W
  • Spécification environnementale
    température de stockage-30˚C/+70˚C
    température de fonctionnement0°C/+50°C
    humidité relative10 to 95%@ 40˚C, non-condensing
  • Certificats
    certificatsCE/FCC class B/UL
  • Données GENERALES
    FabricantAplex
    ApplicationDigital signage, IoT
    Garantie24 Maanden
