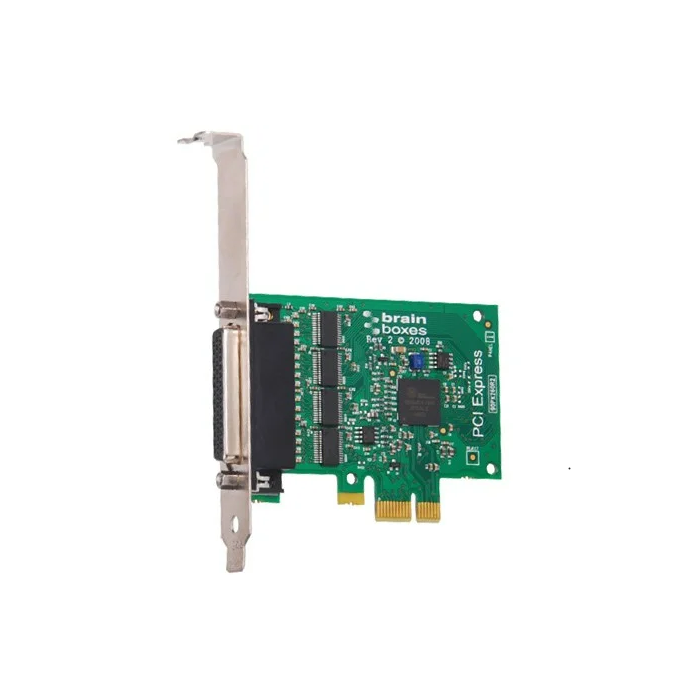

4 Port RS232 PCI Express Serial Card

SKU:
PX-701
Fabrikant:
brainboxes
  • Nombre de ports : 4
  • I/O Type : Analog I/O
  • Type Mezzanine : pci-e
Veuillez nous contacter pour le délai de livraison.
Détails
Spécifications
Téléchargements
PCI Express Card providing four RS232 serial ports. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 2000, XP, Server 2003, Vista, Server 2008, Windows 7, 8 and Windows 10.
Spécifications
  • Caractéristiques principales
    caractéristiquesPorts
    4x

    Protocol
    RS232

    Connector
    DB9 Connector - 9 Pin Male

    UART
    Oxford 950

    UART Compatibility
    16750/16550/16450 backwards compatibile

    Tx FIFO Size
    128

    Rx FIFO Size
    128

    Operating Distance
    EIA - RS232 Standard

    Cable
    4 port cable (44 way D to 4x9 Pin)
  • Spécifications mécaniques
    Dimensions120(l) x 97(w) x 18(h) mm
    Type Mezzaninepci-e
  • Spécifications électriques
    Power consumption380mA @ 3.3V
  • Données GENERALES
    Fabricantbrainboxes
Téléchargements
  • datasheetPX-701-datasheet.pdf
    schéma techniquePX%20Manual%202.3.pdf
