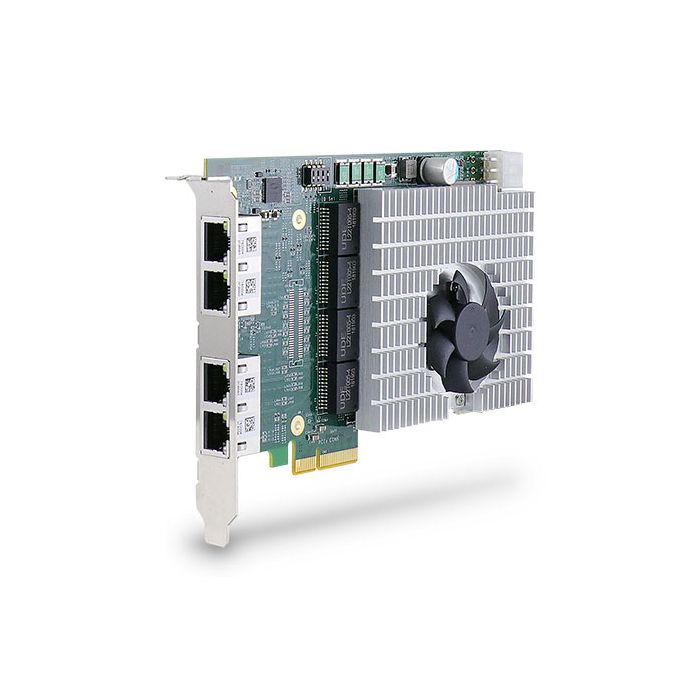

4x 5 GbE PoE RJ45 Machine vision PCIe Card

SKU:
PCIE-POE454AT
Fabrikant:
Neousys
4x 5 GbE PoE RJ45 Machine vision PCIe Card
En stock
Détails
Spécifications
Téléchargements

Introduction

PCIe-PoE454at is an industrial-grade 4-port 5GBASE-T frame grabber card with 802.3at PoE+ capability for advanced machine vision applications. It leverages Marvell AQC111C 5GBASE-T Ethernet controller to offer dedicated 5 Gb/s Ethernet bandwidth for each port. Furthermore, it is backward compatible with 2.5G, 1G, 100M link speeds to support legacy Ethernet devices and can transmit data utilizing economical Cat 5e Ethernet cables up to 100 meters without bandwidth degradation.

5GBASE-T, or NBASE-T, is an emerging technology, especially for the machine vision market. Cameras with a 5GBASE-T Ethernet interface have up to 5 times the Ethernet bandwidth compared to Gigabit Ethernet, thus supporting higher resolution and frame rate. PCIe-PoE454at provides high port density to provide four 5GbE ports in a standard half-size PCIe card form factor. In addition, it comes with IEEE 802.3at PoE+ PSE function so you can simply power the NBASE-T camera using a single Ethernet cable.

For machine vision systems requiring multiple high-resolution 5GBASE-T cameras, PCIe-PoE454at is the ideal frame grabber that provides high port density, 24/7 reliable operation, and excellent throughput performance without frame loss.
Spécifications
  • Caractéristiques principales
    caractéristiques• 4x IEEE 802.3bz 5GBASE-T Ethernet ports by four Marvell AQC111C controllers
    • Compliant with IEEE 802.3at to deliver up to 25.5 W for each port
    • Supports 5G/ 2.5G/ 1G/ 100M link speed
    • x4, Gen3 PCI Express interface offering 4GB/s total bandwidth
    • Per-port PoE+ power on/ off control
    • Compatible with COTS NBASE-T industrial cameras
  • Ports et interfaces
    Externe I/OEthernet Ports
    4x 5GBASE-T Ethernet ports by four Marvel AQC111C 5G controllers, supporting 5G, 2.5G, 1G, 100M link speed

    PoE Capability
    In compliance with IEEE 802.3at-2009 (PoE+), each port delivers up to 25.5 W of power

    Ethernet Ports Connectors
    4x RJ-45 connectors
  • Spécifications mécaniques
    Dimensions167.7 mm (W) x 111.2 mm (H)
  • Spécifications électriques
    plage d'entréeInternal Switch for either:
    • Internal 12V from gold finger
    • External 12V from 6-pin power connector
    Power consumption66W from PCIe gold finger connector, 102W with onboard 6-pin PCIe power connector
  • Certificats
    certificatsEMC
    CE Class A, according to EN 55032/55035
    FCC Class A, according to FCC Part 15, Subpart B
  • Données GENERALES
    FabricantNeousys
    Garantie24 Maanden
