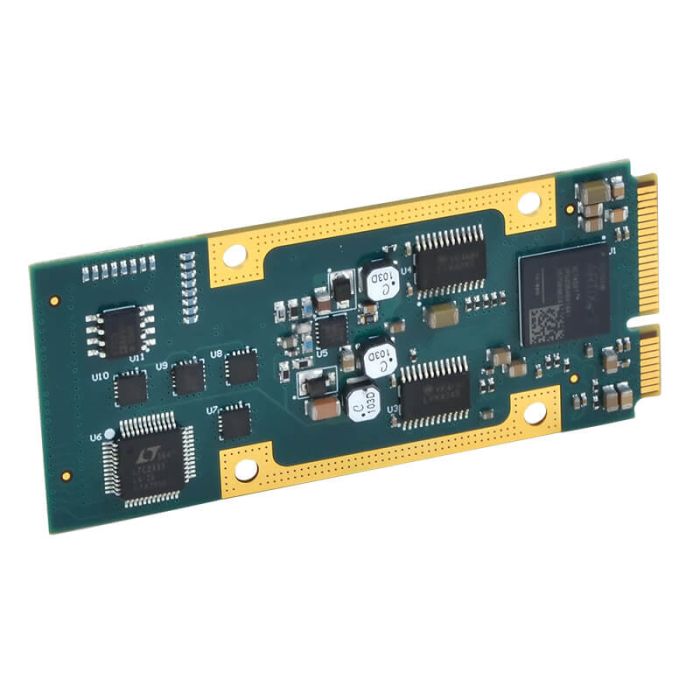

Analog Inputs
• Eight differential input channels (±10.24V, ±10.0V, ±5.12V, ±5.0V, 0 to 10.24V, 0 to 10.0V, 0 to 5.12V ranges)
• 16-bit ADC with sample-and-hold and reference
• 1.264μS conversion time (791KHz rate)
• 1026 sample FIFO buffer
• Programmable FIFO threshold conditions for interrupts, DMA transfers, and flags
• User-programmable channel conversion sequence and timing
• External trigger input or output
• Factory calibration constants stored in on-board flash memory for error correction
Analog Outputs
• Four analog output channels(±3V, ±5V, ±10V, -2.5 to +7.5V, 0-5V, and 0-10V ranges)
• Individual 12 or 16-bit DACs per channel with 7.5μS settling time
• Flexible operating mode, trigger, and memory allocation
• Configurable for direct access, single burst, continuous, or streaming (FIFO) output
• Reliable software calibration with coefficients stored on-board
• FIFO for waveform generation
• Interrupt on user-programmable FIFO threshold
• Shared 64K x 16-bit sample memoryDigital I/O
• 16 bidirectional input/output channels(direction configured in 8-channel groups)
• TTL-compatible thresholds
• Programmable change-of-state/level interrupts
• Failsafe power-up and system reset
Counter/Timers
• Multi-function 32-bit counter/timer
– Quadrature Position measurement
– Pulse Width modulation
– Watchdog timer
– Event counter
– Frequency measurement
– Pulse-width or period measurement
• One-shot and repetitive one-shot pulse waveform generation
• Programmable interface polarity
• Internal or external triggering
• CMOS compatible thresholds
General
• DMA transfer support to move data between module memory and PCIe bus
• Software development tools for VxWorks®, Linux®, and Windows® environments
Ports et interfaces
Externe I/O
Analog Input
8x differential input channels (±10.24V, ±10.0V, ±5.12V, ±5.0V, 0 to 10.24V, 0 to 10.0V, 0 to 5.12V ranges)
Analog Output
4x analog output channels(±3V, ±5V, ±10V, -2.5 to +7.5V, 0-5V, and 0-10V ranges)
Digital IO
16x bidirectional input/output channels(direction configured in 8-channel groups)
