AnySens universeel sensorplatform LTE-M or NarrowBand-IoT
SKU:
SCA-990505-B
Fabrikant:
Core | Vision
Application :IoT
Commutateur de type :Gateways
réseau mobile :LTE, NarrowBand
Cette plate-forme de capteurs polyvalente combine l'enregistrement de données et la fonctionnalité de passerelle. Cela vous permet de relier divers capteurs sur une plate-forme transparente et de les relier à votre environnement cloud.
Ce produit est extrêmement approprié pour la personnalisation

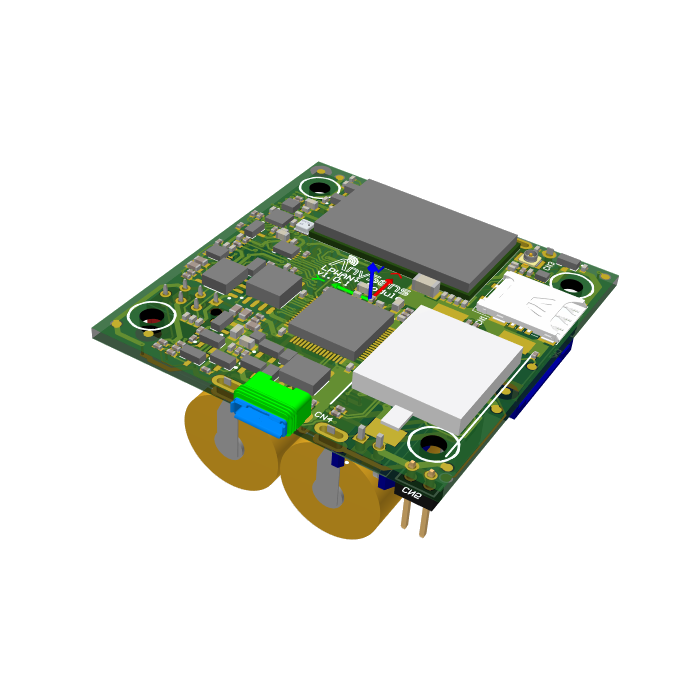

The LPWAN Module is the AnySens base module/edgedevice.
Besides the local processingpower, the module is equipped with:
• Sigfox/LoRacommunication(TTN,KPN,Private)
• 6-axis IMU
• 3-axismagnetometer
• Temperaturesensor
• Barometricpressuresensor
• Localstorage
• Expansion interface to connect the other (AnySens) add-on module
Ports et interfaces
bleutooth
Bleutooth LE
Interne I/O
[ASAN-001] Analog Input Module
The Analog Input Module is the extension that interfaces with external sensors / connections.
This module is a 4-channel fully programmable analog Input module which can measure:
AnySens is also capable reading and controlling digital signals using the Digital Input / Output Module.
This makes it possible to add control loops (edgedeviceorcloudbased):
• 4/8 Isolated digital inputs
• 4Potential-free digital outputs (24V/1A)
[ASBL-001] BLE Module
The BLE Module (BLE 5) support the following features and functionalities:
• BLE advertising
• Localisation using iBeacons
• Interact with BLE devices / sensors
[ASLT-001] LTE-M/NB-IoTModule
For applications that require a higher bandwidth, the LTE-M / NB-IoT Module is used. It is even possible to combine LTE-M / NB-IoT with Sigfox/LoRa for redundant communication.
• LTECatM1
• LTECatNB1
[ASSE-001] Serial Interface Module
The Serial Interface Module is used for local communication with external perhipherals or devices with a serial interface. This module contains 2 serial interfaces and supports the following standards:
• RS-232
• RS-422
• RS-485
Capacité de stockage
capacité de stockage
8 MB
interface de stockage
Flash memory
Spécifications mécaniques
des poulets à certains critères
IP-67 housing
Montage
Serveral mounting solutions are possible, such as:
• Pole mount
• Din-Rail
• Wall mount
Spécification environnementale
température de stockage
-40°C…+85°C
température de fonctionnement
-20°C/+70°C
Support logiciel
système opérateur
Besides the standard off the shelf modules and firmware, custom add-on modules and firmware can be created on customer request.
