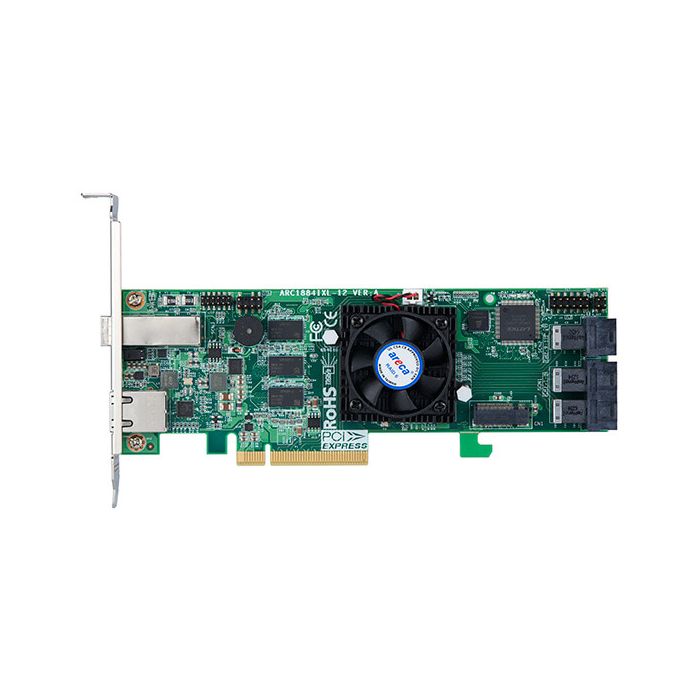

Product Highlights
● Supports up to (512) 12Gb/s SAS,SATA or SSD drives using SAS expanders
● Support up to 2GB DDR3-1866 cache
● Support read/write cache allocation by policy
● Support optional battery backup module (BBM)
● Self-encrypting drive management
● SES2, SMP and SGPIO enclosure management
● Redundant flash image for adapter availability
● Multiple RAID 0 and RAID 10 (1E) support (RAID 00 and RAID100)
● Support RAID 1 - Multi Mirroring and Mirrored Pass-Through Disk
● Broad operating support including Windows, Linux (open source),
FreeBSD (open source), Soaris (open source) and VMware
Drive Connectors
3x SFF-8643 & 1 x SFF-8644 (12x internal & 4x external SATA for HDD or SSD)
Spécifications mécaniques
Bus Type
PCIe
Spécifications électriques
Power consumption
Typical: 18W
Spécification environnementale
température de fonctionnement
0°C/+60°C
humidité relative
10% to 85%, non-condensing
Données GENERALES
Fabricant
Aaeon
Garantie
24 Maanden
Prix sur demande
Pas de frais de livraison pour les commandes supérieures à 250 €
