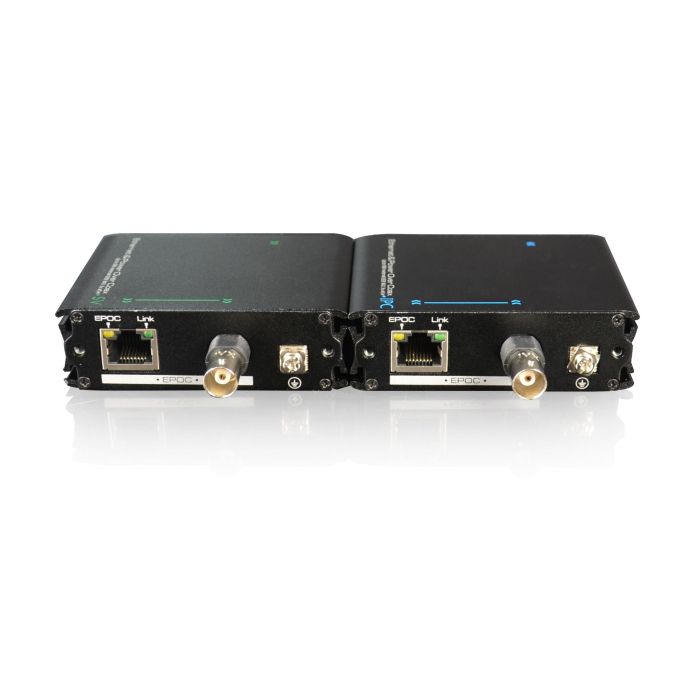

• The equipmentconsists of two parts:SV-Unit and IPC-Unit.
SVUnit has 48-57VDC port,one PoE input port and two output ports: BNC and RJ45; IPCUnit has two input ports: BNC and RJ45, one PoE output port
• Adopt advanced transmission and powersupply technoloy, can transmit Ethernetsignal and powersignal up to 500m though coaxial cable and transmit Ethernet signal and power signal up to 400 m though network cable
• Ethernet delay less than 1ms; meet point to point application
• Standard: IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3af/at
• Protection: excellent circuit isolation protection, superior product anti-thunder , anti-satific and anti-interference ability
• Appearance: soild and delicate, meet MIT rack installation standard
• Installation: Plug-and-play, no setting required
Ports et interfaces
Interface LAN
4
PoE disponible
Ja
Capacité POE
• PoE Agreement: Support IEEE802.3af, IEEE802.3at
• PoE Power Supply: Support End-span and Mid-span
