Front Panel I/O
• 1 * Power button+ Power LED
• 1 *COM(RS232/RS422/RS485)
• 2 * USB 3.0ports
• 1* VGA (Max. 1920×1200@60Hz resolution)

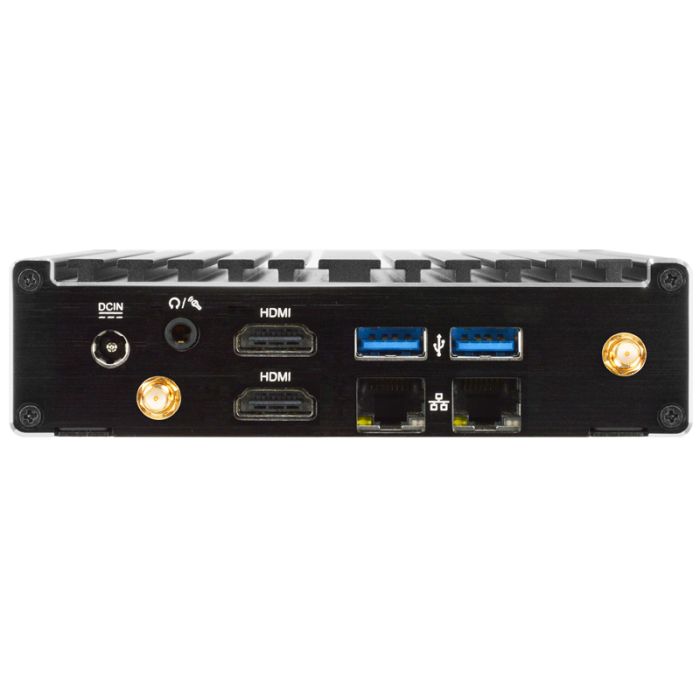

Rear Panel I/O
• 2* HDMI(Max. 3840x2160@30Hz resolution
• 2 * Antenna holes
• 1* 12V DC-in system power Jack
• 1* Audio Line-Out & MIC combo jack
• 2* HDMI port
• 2* RJ-45 LAN port
• 2 * USB 3.0 ports
Interne I/O
Internal I/O
• TPM 2.0 on board
• 1* 2-pin internal 12V DC-in power connector
• 1* SATA Power connector
• 1* JW_FP connector (on the backside)
• 1* CPUFAN connector (on the backside)
• 1* 9-Pin USB 2.0/1.1 header for 2* USB 2.0/1.1 ports
• 1* GPIO header
• 1* LAN LED activity header
• 1* SMBUS header
