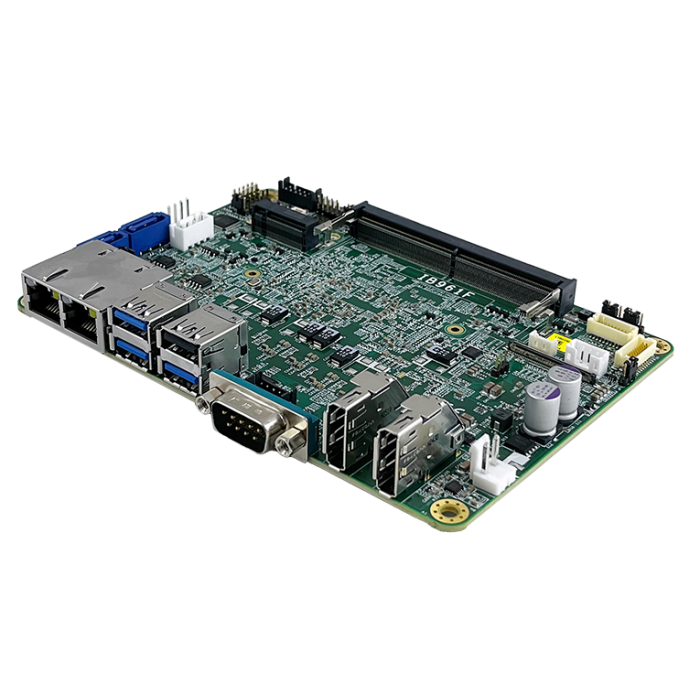

IB961 3.5" SBC Core i3-1320PE 2LAN eDP/LVDS DC12-24V

SKU:
IB961AF-13P (V-B1)
Fabrikant:
iBASE
  • type de processeur : Intel Core
  • Mémoire maximale : 32GB
  • température de fonctionnement : 0°C/+60°C
IB961 3.5" SBC Core i3-1320PE 2LAN eDP/LVDS DC12-24V
Veuillez nous contacter pour le délai de livraison.
Détails
Spécifications
Téléchargements
IBASE IB961 Series
Powered by the latest 13th Gen Intel® Core™ i7/i5/i3 mobile processors, the IB961 ensures high performance and exceptional efficiency for a wide range of applications.
Accompanied by a DDR5 SO-DIMM socket with a 32GB capacity, the motherboard guarantees seamless multitasking and improved system responsiveness.
Graphics support is provided by2x DP++, LVDS, and eDP for independent display outputs. Two Intel® PCI-E 2.5G LAN ensures high-speed networking for seamless data transfer.
Equipped with 3x USB 2.0, 3x USB 3.2, 2x COM, and 2x SATA III ports, the IB961 offers exceptional peripheral connectivity, and 3x M.2 slots (M-Key + E-key + B-key) enhances expandability options.
Spécifications
  • processeur
    type de processeurIntel Core
    Série de processeursRaptor Lake
    Socket typeBGA1744
    Fréquence de basemax. 4.50GHz
    Nb. de cœurs8
    TDPStandard 28W
    chipsetSoC
  • Mémoire
    Type de mémoireDDR5 SO-Dimm
    Emplacements de mémoire1
  • Carte vidéo
    Les liensDisplayPort
    2x DisplayPort 1.2

    Internal: eDP & LVDS
    1x eDP
    1x LVDS
    ChipsetIntel® UHD Graphics for 13th Gen Intel® Processors
  • Caractéristiques principales
    caractéristiquesFeatures
    • Onboard 13th Gen Intel® Core™ i7/i5/i3 mobile processors
    • 1x DDR5 SO-DIMM, Max. 32GB
    • supports 2x DisplayPort (1.2), LVDS and eDP
    • 2x Intel® PCI-E 2.5G LAN
    • 3x USB 2.0, 3x USB 3.2, 2x COM, 2x SATA III
    • 3x M.2 slots (M-Key + E-Key + B-Key)
    • supports 5G, digital I/O (4-in/4-out), fTPM & watchdog timer
    • supports wide-range operating temperature from
  • Expansion
    slots d'extensionM.2
    1x M.2 (E-Key, Type:2230, supports CNVi)
    1x M.2 (B-Key, Type:3052, supports 5G/LTE)
  • Ports et interfaces
    GPIO InterfaceDigital I/O (4-in/4-out)
    interface série ata2x SATA III
    Watchdog timerYes (256 segments, 0, 1, 2…255 sec / min)
    Interface LAN2
    USB 2.0 les ports3
    Ports USB 3.x3
    Externe I/OEthernet
    1x RJ45 for 2.5 Gigabit Ethernet (Intel® I226LM/IT)
    1x RJ45 for 2.5 Gigabit Ethernet (Intel® I226V/IT)

    USB
    1x USB 2.0 1x Type-A)
    3x USB 3.2 (Type-A)

    Serial
    1x RS232/422/485
    1x RS232 (COM2)
    Interne I/OUSB
    2x USB2.0 via pin header

    SIM Slot
    1x SIM Slot
  • Capacité de stockage
    interface de stockageM.2
    1x M.2 (M-Key, Type:2280, supports NVMe withPCl-E(4x) signal only)

    SATA III
    2x SATA III
  • Spécifications mécaniques
    Dimensions102mm (W) x 147mm (H)
  • Spécifications électriques
    plage d'entrée12VDC - 24VDC In
  • Spécification environnementale
    température de stockage-40°C/+80°C
    température de fonctionnement0°C/+60°C
    humidité relative10% ~ 90% (non-condensing)
  • Certificats
    certificatsCE, FCC Class B
  • Données GENERALES
    FabricantiBASE
    ApplicationAutomation
