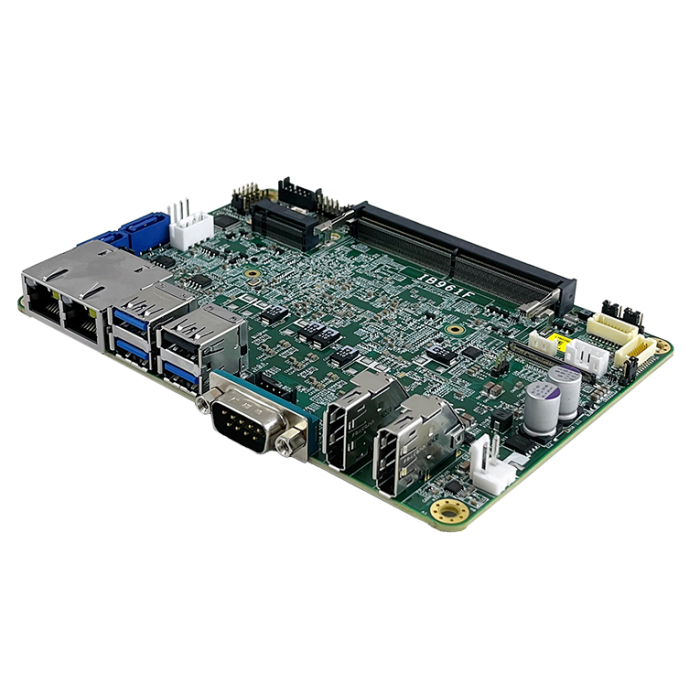

IB961 3.5" SBC Core i7-1370PE 2LAN eDP/LVDS DC12-24V

SKU:
IB961AF-17P (V-B1)
Fabrikant:
iBASE
  • type de processeur : Intel Core
  • Mémoire maximale : 32GB
  • température de fonctionnement : 0°C/+60°C
IB961 3.5" SBC Core i7-1370PE 2LAN eDP/LVDS DC12-24V
Veuillez nous contacter pour le délai de livraison.
Détails
Spécifications
Téléchargements
The IB961 3.5" Single Board Computer (SBC) is engineered for peak performance, extensive connectivity, and unmatched versatility. Harnessing the prowess of 13th Gen Intel® Core™ processors, including the i7-1370PE, i5-1340PE, i5-1335UE, and i3-1320PE, the IB961 delivers exceptional computing capabilities across diverse applications. These processors advance performance hybrid architecture with up to 6 Performance-cores (P-core) and up to 8 Efficient-cores (E-core), ensuring unparalleled power for memory-intensive tasks.
.
This compact SBC offers a rich array of connectivity options, including M.2 (M-Key, E-Key, B-Key) mini type slots, and USB 3.2 ports, enabling 5G communications and ensuring seamless integration with peripherals. Dual Intel LAN support guarantees reliable, high-speed network connectivity. Integrated graphics from 13th Gen Intel Core mobile processors provide stunning visuals through 2x DisplayPort (1.2), eDP, and LVDS outputs. The IB961 signifies a leap forward in embedded computing technology, empowering businesses to enhance efficiency and adaptability across diverse industrial applications...

With dimensions measuring 102mm x 147mm, the compact IB961 seamlessly integrates into space-constrained environments. Its rugged design and comprehensive feature set position it as the preferred choice for industrial automation and edge computing applications.
Spécifications
  • processeur
    type de processeurIntel Core
    Série de processeursRaptor Lake
    Socket typeBGA1744
    Fréquence de baseE-Core 3.70 GHz
    P-Core 4.80 GHz
    Nb. de cœurs14
    TDP28W
  • Mémoire
    Type de mémoireDDR5 SO-Dimm
    Emplacements de mémoire1
  • Carte vidéo
    Les liensDisplayPort
    2x DisplayPort (1.2),

    Internal
    eDP & LVDS
    ChipsetIntel® Iris® Xe Graphics eligible
  • Expansion
    slots d'extensionM.2
    1x M.2 (E-Key, Type:2230, supports CNVi)
    1x M.2 (B-Key, Type:3052, supports 5G/LTE)
  • Ports et interfaces
    Interface LAN2
    USB 2.0 les ports3
    Ports USB 3.x3
    Externe I/OLan
    1x Intel® I226LM as 1st LAN
    1x I226V as 2nd LAN

    Serial Port
    2x COM port

    USB
    1x USB 2.0 (1x Type-A)
    3x USB 3.2 (3x Type-A)
    Interne I/OUSB
    2x USB 2.0 via pin headers

    I/O
    Digital I/O (4-in/4-out)
  • Capacité de stockage
    interface de stockageM.2
    1x M.2 (M-Key, Type:2280, supports NVMe with PCl-E(4x) signal only)
  • Spécifications mécaniques
    Dimensions102mm x 147mm (4“ x 5.8“)
  • Spécifications électriques
    plage d'entrée+12V~+24V DC-in
  • Spécification environnementale
    température de stockage-40°C/+80°C
    température de fonctionnement0°C/+60°C
    humidité relative10% ~ 90% (non-condensing)
  • Données GENERALES
    FabricantiBASE
    ApplicationAutomation
    Garantie24 Maanden
