Intel N97 8GB RAM 2x 2.5GbE 4xUSB 2xCOM mPCIe M.2 GPIO

SKU:
ACS-330
Fabrikant:
Aplex
  • SKU : ACS-330
  • type de processeur : Processor N
  • Mémoire maximale : 32GB
  • température de fonctionnement : -20°C/+60°C
Intel N97 8GB RAM 2x 2.5GbE 4xUSB 2xCOM mPCIe M.2 GPIO
Veuillez nous contacter pour le délai de livraison.
Détails
Spécifications
Téléchargements

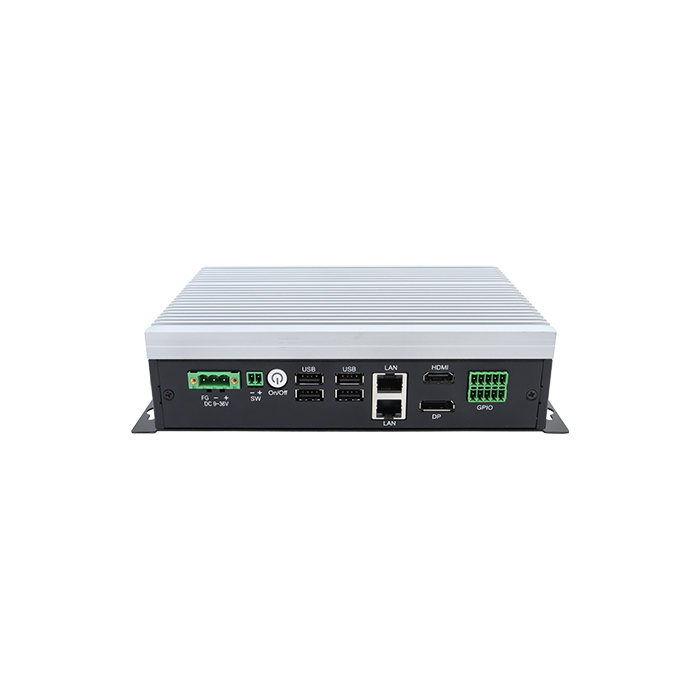

ACS-330
APLEX's ACS-330 embedded edge controllers deliver high performance and flexibility, supporting PCIe, SATA, and optional UART for WiFi, 5G, and storage with cableless. ACS-330 provide reliable edge solutions, bridging the gap between OT and IT.

Optional Expansion Cards
UART / GPIO
UART/ GPIO UART: 4 x RS-232/422/485 (BIOS selectable)
GPIO: 8 x GPIO (4-IN/4-OUT, 3.3V / 5V hardware-selectable)
USB / LAN
USB/ LAN 2 x USB 2.0 (Type-A)
2 x LAN ports (RJ-45)

*Supports one of the two expansion slots (selectable configuration)
Spécifications
  • processeur
    type de processeurProcessor N
    Série de processeursAlder Lake-N
    Fréquence de basemax. 3.6GHz
    Nb. de cœurs4
    TDP12W
    chipsetSoC
  • Mémoire
    Type de mémoireDDR5 SO-Dimm
    Emplacements de mémoire1
  • Carte vidéo
    Les liensHDMI
    1x HDMI 2.0b (up to 4K @60Hz, HDCP 2.2)

    DisplayPort
    1x DisplayPort 1.4 (up to 4K @60Hz, VDSC 1.1, HDCP 2.2, MST)
    ChipsetIntel® UHD Graphics
  • Caractéristiques principales
    caractéristiquesFeatures
    • Intel Alder Lake-N processors (N97) with 8GB DDR5 memory, up to 32GB.
    • Wide power input range (9~36V DC)
    • Wide operating temperature range (-20~60°C / -4~140°F)
    • Expansion flexibility, 1 x Mini-PCIe 3027/3051, 2 x M.2 slots
    • Dual 2500 BASE-T Ethernet supports Time-Sensitive Network (TSN) technology
    • Dual Display (1 x HDMI, 1 x DP) supports multiple display configurations
    • Versatile connectivity with 2 x RS-232/422/485 ports
    • Onboard TPM 2.0 provides hardware-based security
    • Modular design for optional extension boards
  • Expansion
    slots d'extensionmini PCIe
    1x Mini PCIe 3027/3051 (Wi-Fi module)

    M.2
    1x M.2 B-Key 3042/3052 (4G/5G module)
  • Ports et interfaces
    GPIO Interface8x GPIO (4-IN/4-OUT, 3.3V / 5V hardware-selectable)
    Optional with Exp.Card: 8x GPIO (4-IN/4-OUT, 3.3V / 5V hardware-selectable)
    Interface LAN2
    USB 2.0 les ports4
    Externe I/OEthernet
    2x 2500 BASE-T ethernet ports (RJ-45)

    USB
    4 x USB 2.0 (Type-A on front-side)
    Optional with Exp.Card: USB/ LAN 2 x USB 2.0 (Type-A)

    Serial
    2x RS-232/422/485 (BIOS selectable)

    GPIO
    8x GPIO (4-IN/4-OUT, 3.3V / 5V hardware-selectable)
    Optional with Exp.Card: 8x GPIO (4-IN/4-OUT, 3.3V / 5V hardware-selectable)
    Interne I/OSMBus
    1x SMBus Wafer Header

    I2C Interface
    1x I2C Interface (M.2 Connector)
  • Capacité de stockage
    interface de stockageM.2
    1x M.2 B+M Key 2242 (SATA interface)
  • Spécifications mécaniques
    Dimensions200mm (W) x 140mm (D) x 55mm (H)
    MontageWall Mount, Din-Rail
  • Caractéristiques du produit
    Le poids2.5kg
  • Spécifications électriques
    plage d'entréeDC 9~36V
  • Spécification environnementale
    température de stockage-40°C/+85°C
    température de fonctionnement-20°C/+60°C
    humidité relative95% RH @ 40 °C/104 °F
  • Certificats
    normesShock
    Operating, IEC 60068-2-27, 50G, half sine, 11ms

    Vibration
    Operating, IEC 60068-2-64, 2 Grms, random, 5 ~ 500 Hz, 1hr/axis
    certificatsCE, FCC Class A, UKCA, LVD, RoHS, UL 61010-2-201
  • Données GENERALES
    FabricantAplex
    ApplicationAutomation
    Garantie24 Maanden
