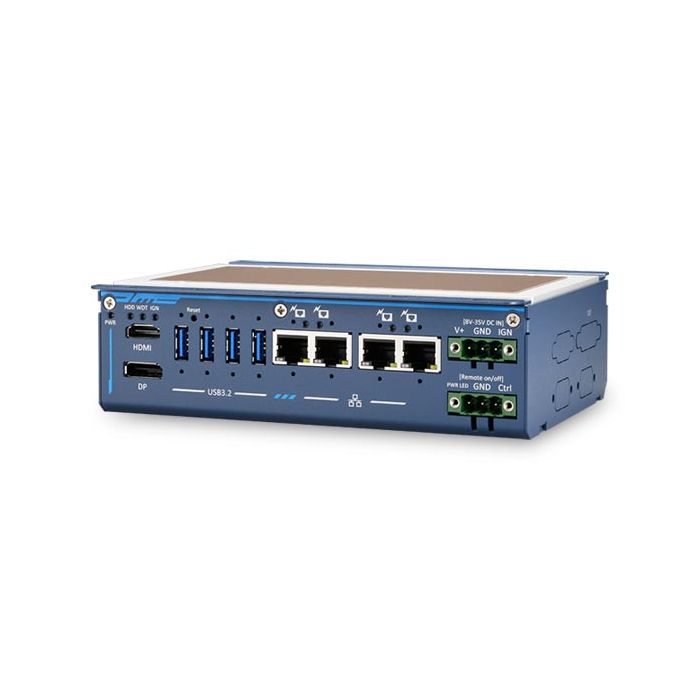

Intel® Alder Lake Embedded Computer with 4x PoPoE+, 4USB3.2

SKU:
POC-700-FT
Fabrikant:
Neousys
  • SKU : POC-700-FT
  • type de processeur : Intel Core, Intel Atom
  • Mémoire maximale : 16GB
  • température de fonctionnement : -25°C/+60°C
Intel® Alder Lake Embedded Computer with 4x PoPoE+, 4USB3.2

Note:
POC-700-FT is available in two version.
POC-715-FT - with Intel Core i3-N305 (Intel® UHD Graphics with 32EUs) with 4x GbE PoE Ports
POC-712-FT - with Intel Atom x7425E (Intel® UHD Graphics with 24EUs) with 4x GbE w/o PoE
Veuillez nous contacter pour le délai de livraison.
Détails
Spécifications
Téléchargements

Introduction

The POC-700-FT is a variant of Neousys’ acclaimed POC-700 series, featuring a unique flattop heatsink design that allows it to be applied to other categories of applications. The large thermal conduction area of the flattop heatsink helps effectively transfer heat to the outer surface and makes POC-700-FT particularly applicable for installation inside a sealed enclosure, where airflow is limited.

The POC-700-FT series is equipped with a Intel® CoreTM i3-N305 8-core/ 8-thread processor, along with 32EUs UHD Graphics, or an Atom® x7425E 4-core/ 4-thread processor, with 24EUs UHD Graphics. Both options are optimized for AI inference tasks via Intel OpenVINOTM. The system supports DDR5-4800 memory and includes an M.2 2280 M key NVMe slot for fast disk access. It also has four USB 3.2 Gen2 ports and four GigE PoE+ ports with screw-lock mechanisms, ensuring reliable connections for Ethernet/ USB cameras. POC-700-FT also offers COM ports and isolated DIO for monitoring and controlling devices, as well as a mini-PCIe slot that accommodates wireless modules such as WiFi, LTE/5G, or CAN bus devices.

The flattop heatsink not only facilitates in-cabinet thermal dissipation, but also reduces the overall size of the machine by 20% for confined spaces. It offers a great solution for customers who want fanless yet efficient thermal conduction when placing the machine in a cabinet. Combining multiple Ethernets and rich I/O functions, POC-700-FT fits for deployed in challenging environments, such as oil/ gas, mining, those requiring dust and water resistance.
Spécifications
  • processeur
    type de processeurIntel Core, Intel Atom
    Série de processeursAlder Lake-N
    Fréquence de baseIntel Core i3-N305: max. 3.8GHz
    Nb. de cœurs8
    TDP15W
    chipsetSoC
  • Mémoire
    Type de mémoireDDR4 SO-Dimm
    Emplacements de mémoire1
  • Carte vidéo
    Les liensDisplayPort
    1x DP++, Supporting 4096 x 2160 resolution

    HDMI
    1x HDMI 1.4b, Supporting 3840 x 2160 30Hz
    ChipsetIntegrated Intel® UHD Graphics with 32EUs
  • Caractéristiques principales
    caractéristiquesFeatures
    • Intel® Alder Lake Core™ i3-N305 processor 15W with 8 E-Cores or Atom® x7425E
    • Up to 16GB DDR5-4800 SODIMM
    • Flattop heatsink design
    • -25 °C to 60 °C rugged wide temperature fanless operation
    • 4x GbE ports PoE+ / 4x USB3.2 Gen 2 with screw-lock
    • 4-CH isolated DI + 4-CH isolated DO
    • DP++ / HDMI 1.4b dual display outputs
    • MezIO® compatible
  • Expansion
    slots d'extensionmini PCIe
    1x full-size mini PCI Express socket with internal micro SIM socket

    MezIO Interface
    1x MezIO® expansion interface for Neousys MezIO® modules
  • Ports et interfaces
    Interface LAN4
    Ports USB 3.x4
    Externe I/OEthernet
    4x Gb Ethernet ports by Intel® I350-AM4 IEEE 802.3at PoE+

    USB
    4x USB 3.2 Gen2 ports with screw-lock

    Serial
    1x Software-programmable RS-232/422/485 ports (COM1)
    3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2)

    Digital IO
    4-CH isolated DI and 4-CH isolated DO
    Interne I/OMezIO Interface
    1x MezIO® expansion interface for Neousys MezIO® modules
    PoE disponibleJa
    Capacité POEPoE Option
    4x Gb Ethernet ports by Intel® I350-AM4 IEEE 802.3at PoE+
  • Capacité de stockage
    interface de stockageM.2
    1x M.2 2280 M key socket (PCIe Gen3 x1) for NVMe SSD storage (supports SATA signal)
  • Spécifications mécaniques
    Dimensions175.8mm (W) x 115.5mm (D) x 51.65mm (H)
    MontageWall-mount (Standard)
  • Caractéristiques du produit
    Le poids1.2kg
  • Spécifications électriques
    plage d'entrée8V to 35V DC input
  • Spécification environnementale
    température de stockage-40°C/+85°C
    température de fonctionnement-25°C/+60°C
    humidité relative10% to 90% , non-condensing
  • Certificats
    certificatsVibration
    MIL-STD-810H, Method 514.8, Category 4

    Shock
    MIL-STD-810H, Method 516.8, Procedure I

    EMC
    CE/ FCC Class A, according to EN 55032 & EN 55035
  • Données GENERALES
    FabricantNeousys
    ApplicationAutomation, IoT
    Garantie24 Maanden
