IPC Basechassis AT/ATX 4U/19"/430mm

SKU:
3659400
Fabrikant:
HEITEC AG
Veuillez nous contacter pour le délai de livraison.
Détails
Spécifications
Téléchargements
Spécifications
  • Caractéristiques du produit
    Type de produitIndustrial PC chassis
    Groupe de produitsModulesystem AT/ATX Vario Economy with front door, 4 U, tin
    Largeur millimètre482,6 mm (19")
    Profondeur du panneau latéral430 mm
    VersionBasic casing montiert
    Trou de poignéeNon

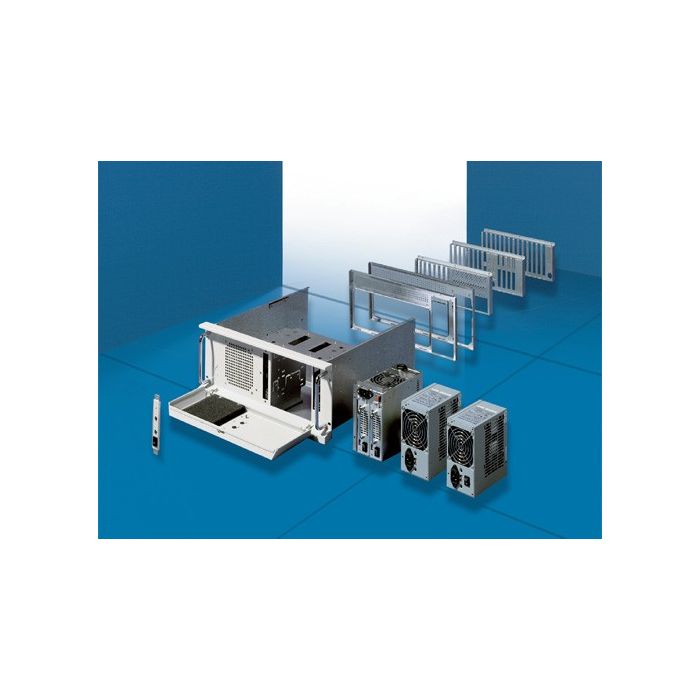

    Informations générales sur le produitThea modular principle of AT/ATX Vario Economy allows installationto accommodate individual requirements. The basic casemay be fitted for both AT and ATX applications with the appropriateselection of rear panels, power packs and front trim panels.For self-assembly, or on request fully assembled andwired. Technical specifications:
    482.6 mm (19“) rack-mount system for the installation of ATX/
    Mini-ATX. Micro-ATX or AT-/ Baby AT boards and 3 x 5¼“ and
    1 x 3½“ drives.
    • Width: 482.6 mm (19“)
    • Height: 4 U (177.0/174.0 mm)
    • Total depth: 430 mm
    Material/surface finish:
    Case, cover:
    1.2 mm sheet steel, zinc-plated, Front door: 1.2 mm sheet steel,
    spray-finished in RAL 7035, unpainted contact points

    Standards:
    Complies with IEC 60 297-3 and
    ATX specification 2.01

    Special designs available
    on request.

    Basic enclosure supply
    includes:

    Case 4 U, 430 mm deep including assembly parts,
    covers, drive holder, fan, horizontally hinged front
    door, and air filter.

    Note:
    Rear panel, front trim panel and power pack should be ordered
    separately (for self-assembly).
    Le poids11,8 kg
  • Données GENERALES
    FabricantHEITEC AG
    Ean code4250558900758
Téléchargements
