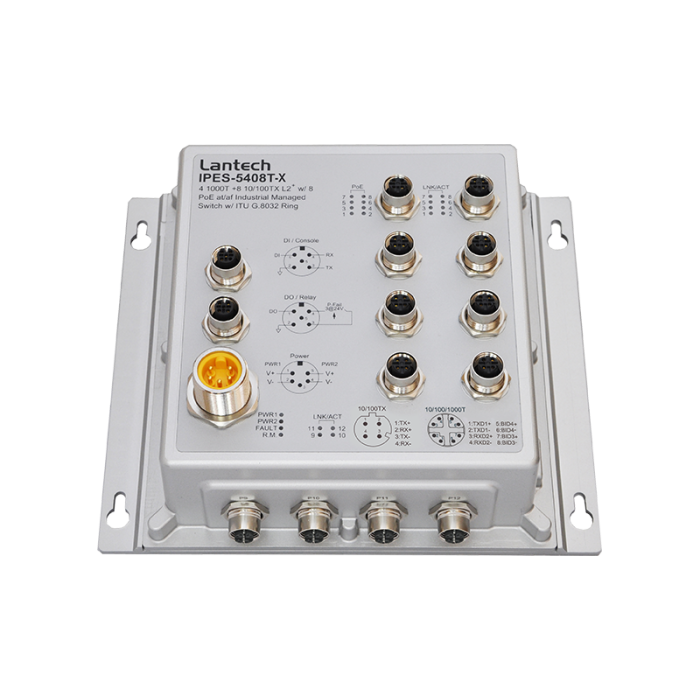

IPES-5408T-X-67-12V

SKU:

8360-6019

Fabrikant:

Lantech

8 10/100TX PoE at/af up to 30W + 4 10/100/1000T X-coded PTP** L2+ Managed Industrial PoE M12 IP67 Switch; -40°C to 75°C; 9.5V~56V dual input

En stock

Détails

Spécifications

Ports et interfaces

Interface LAN	12
taux de transfert	14,880pps for Ethernet port 148,800pps for Fast Ethernet port 1,488,000pps for Gigabit Fiber Ethernet port
PoE disponible	Ja
Capacité POE	240W for 48V input (54V input is recommended for PTZ or heater applications) 90W for 12V input 120W for 24V input
Protocole	CSMA/CD
Led	Per unit: Power 1 (Green), Power 2 (Green), FAULT (Red) Ethernet port: Link/Activity (Green), Speed (Green); R.M. indicator (Green)
Jumbo frame	10KB on all ports

Spécifications mécaniques

Dimensions	215mm(W)x200mm(H)x84.4mm(D)
des poulets à certains critères	Aluminum case. IP-67
Montage	DIN Rail** and Wall Mount Design

2 093,30 € 1 730,00 €
