HDMI
reserved 1 x HDMI signal to P6 connector on M-3 Card
DisplayPort
2x USB Type-C Port, USB1/2 can support DP Alt Mode, 7680x4320 @60Hz
Chipset
Intel® UHD Graphics for 11th Gen Intel® processors
Caractéristiques principales
caractéristiques
• 11th Gen. Intel® XEON/Core processor with RM590E PCH
• Up to 64 GB DDR4 by two channels, with ECC/non-ECC options
• Up to 3 x 10 Gbps USB Type-C, 2 in 3 display port alternate mode enabled
• Up to 4 x Ethernet ports on front panel: 2 x 2.5 Gbps RJ45 ports on 4HP, another 2 x M12 X-coding ports with 1 Gbps speed on Mezzanine-2 card
• Up to 2 x M.2 sockets for SATA 3.0 SSD module on MIC-330V2: 2 x M.2 sockets on Mezzanine-1 Card and customizable Mezzanine-3 Card 1 x M.2 socket on Mezzanine-2 Card
• Reserved Fe-RAM, and super cap. on MIC-330V2 with Mezzanine-2 card
• Up to 4 x 2.5 Gbps Ethernet, 2 x UART, 1 x HDMI, 1 x I2C, 5 x GPIO signals to rear BP by P6 on customizable Mezzanine-3 card
• Designed to meet EN50121-4, EN50121-3-2 and EN50155
• PICMG CompactPCI Serial(CPCI-S.0 R2.0) compliant
Ports et interfaces
interface série ata
SATAIII
Interface LAN
6
Ports USB 3.x
3
Externe I/O
Ethernet
2 x RJ45 to front 4HP support 1 Gbps / 2.5 Gbps

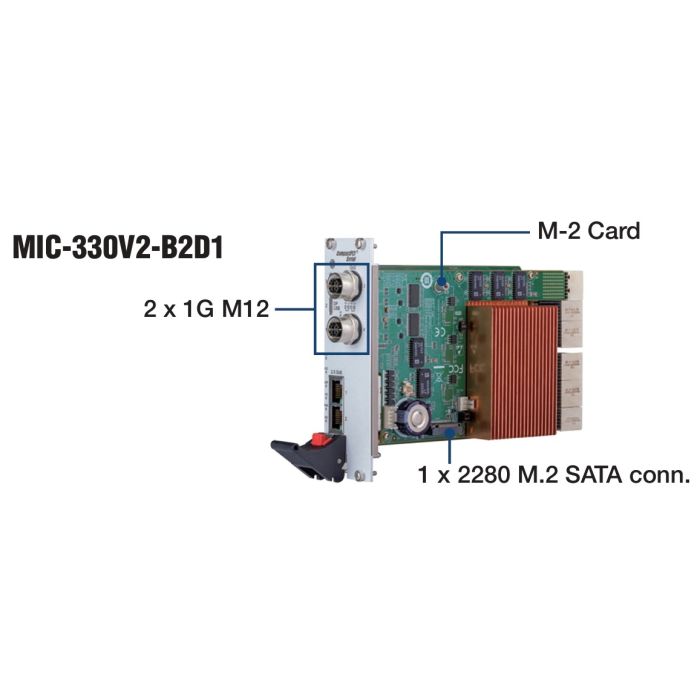

2 x M12 X-coding to front 8HP, with 1 Gbps speed on M-2 card
2x 1Gbit LAN to P6 Conn.
Ethernet
2x GbE to P6 on M-1 & M-2 Card, reserved 4 x 2.5 GbE to P6 on customizable M-3 Card
To P1-P6 Signal
P1 - 1x PCIe3.0 x4 of lower 4-Lane, 1x USB 3.2 gen 1, 1x USB 2.0
P2 - 1x PCIe3.0 x4 of upper 4-Lane, 1x PCIe3.0 x8, 3x USB 2.0, Update to 5x GPIO
P3 - 3x USB 3.2 gen 1, 4 x USB 2.0, 2x SATA 3.0, 1x DP signal reserved
P4 - 4x PCIe3.0 x4
P5 - 2x PCIe3.0 x1, 5x PCIe clock REQ
P6 - 2x GbE on M-1 & M-2 Card, up to 4x 2.5 GbE on customizable M-3 Card
Capacité de stockage
interface de stockage
M.2
1x M.2 2280 M-Key Slots (SATA) onboard
Spécifications mécaniques
Dimensions
8HP, 160.00 mm x 100.00 mm
Type SBC
CompactPCI serial
Spécification environnementale
température de stockage
-40°C/+85°C
température de fonctionnement
-25°C/+70°C
humidité relative
95 % @ 60°C, non-condensing
Certificats
normes
Vibration
2 Grms, random (5Hz ~ 500Hz)
Shock
10G, 11ms, each axis three times, operation mode
Regulatory Conformance
FCC Class A, CE, FCC, UKCA, RoHS
Compliance Standards
PICMG® CompactPCI® Serial
Support logiciel
système opérateur
Windows 10, Windows 11, Ubuntu 22.04, VxWorks
Données GENERALES
Fabricant
Advantech
Application
Automation
