Due to component scarcity, no audio on this device

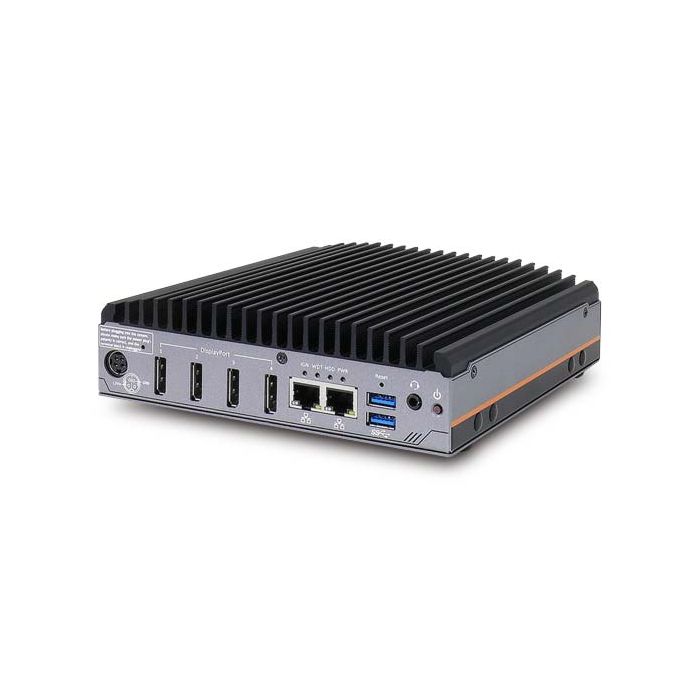

Nuvo-2700DS series is a rugged digital signage system with AI inference capability for personalized user experience and audience measurement.
Veuillez nous contacter pour le délai de livraison.
• AMD Ryzen™ embedded V1605B series quad-core 15W CPU
• Rugged -25°C to 70°C fanless operation
• 4x 4K DP display, 3840 x 2160 resolution per output
• AI inference capability by 2x optional Edge TPU
• 1x M.2 3042/3052 B-Key for 4G/5G module
• 2x USB3.1 Gen 1 and 2x USB2.0
• 8V to 35V wide-range DC input with built-in ignition power control
• Flexible power input options: mini-DIN or terminal block
Expansion
slots d'extension
Mini PCI Express
2x half-size mini PCI Express socket for Google Edge TPU M.2
1x M.2 3042/ 3052 B key (USB 3.1 Gen 1 + USB 2.0) for 4G/ 5G module with Micro SIM card slot
1x M.2 2230 E key (PCIe Gen3 x1 + USB 2.0) for WIFI module
Ports et interfaces
Interface LAN
2
USB 2.0 les ports
2
Ports USB 3.x
2
Externe I/O
Video Port
4x DisplayPort, supporting 4K UHD resolution Ethernet Port
2x Gigabit Ethernet ports by 2x Intel I210® controller USB 3.1
2x USB 3.1 Gen1 (5 Gbps) ports USB 2.0
2x USB 2.0 Audio
1x 3.5mm jack for mic-in and line-out Serial Port
2x RS-232 (COM1 in DB9, COM2 in RJ50) DIO
4-CH isolated DI and 4-CH isolated DO (optional)
Capacité de stockage
interface de stockage
1x M.2 2280 M key (SATA signal only) socket for SATA SSD installation
Spécifications mécaniques
Dimensions
173 mm (W) x 174 mm (D) x 50 mm (H)
Montage
Wall-mount(optional)
Caractéristiques du produit
Le poids
1.6kg
Spécifications électriques
plage d'entrée
1x mini-DIN for 12V DC input or 1x 3-pin pluggable terminal block for 8V to 35V DC input (IGN/ GND/ V+)
