XMC module XCZU5EV Rear I/O VITA 61 conduction cooled

SKU:
XMC-ZU5EV1-61-50
Fabrikant:
Acromag
  • type de processeur : ARM
  • Mémoire maximale : 4GB
  • Type SBC : XMC Board
  • température de fonctionnement : -40°C/+85°C

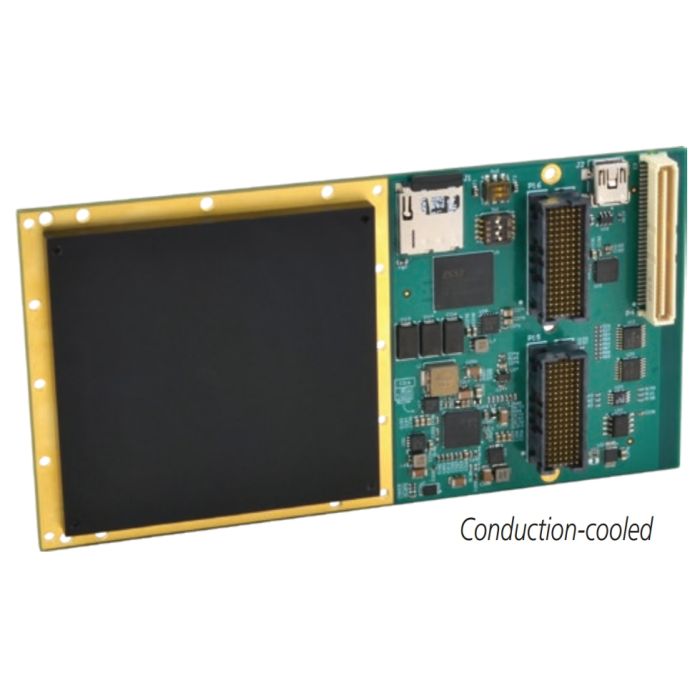

XMC module XCZU5EV Rear I/O VITA 61 conduction cooled

Note: This model uses VITA 61 connectors
Veuillez nous contacter pour le délai de livraison.
Détails
Spécifications
Téléchargements

XMC-ZU Series: Configurable AMD Zynq® UltraScale+TM MPSoC with Plug-In I/O Description

XMC-ZU series modules provide a programmable AMD Zynq UltraScale+ multiprocessor system on a chip (MPSoC). This MPSoC combines a feature-rich ARM-based processing system and programmable logic in a single device. A quad-core A53 application processor and dual-core R5 real-time processor deliver high-performance computation capability. Additional resources include on-chip memory, external memory interfaces, and a rich set of peripheral connectivity interfaces. The integrated ASIC-class programmable logic is ideal for compute-intensive tasks and offloading critical applications.

An AXM-Z01 expansion I/O module plugs in to bring out the processor peripherals through DisplayPort, USB 3.0, RJ45 and USB UART ports. A number of high-speed serial and LVDS I/O interfaces are also provided. Other AXM mezzanine modules are compatible to provide a variety of analog and digital I/O interfaces.

High-speed serial lanes route PCIe, Serial RapidIO and 10-Gigabit Ethernet signals to the rear XMC P15 connector. High performance signals from the programmable logic are configurable as LVDS I/O or global clocks are accessible on the P4 and P16 rear connectors.

The real value of the Zynq UltraScale+ MPSoC architecture lies in the tight integration of its programmable logic with the processing system. Its high throughput interface eliminates bottlenecks that plague two-chip ASSP-FPGA solutions and allows designers to easily extend the processing system capabilities. Now developers can build custom designs by adding peripherals in the programmable logic and increase overall system performance by partitioning hardware and software functions with custom accelerators.

Designed for COTS applications these MPSoC I/O modules deliver user-customizable I/O in a high-density and very rugged form factor. Typical applications involve adaptive filtering, sensor fusion, motor control, and image processing.

Acromag’s Engineering Design Kit (EDK) provides example designs that provides host access to the hardware I/O. The examples are implemented using the AMD Vivado® development environment and offer a starting point from which customers can develop their customized applications. Vitis® and PetaLinux® examples are also provided.
Spécifications
  • processeur
    type de processeurARM
    Série de processeursAMD Zynq UltraScale+ MPSoC
    Fréquence de baseApplication CPU: Quad-Core ARM Cortex-A53, up to 1.5GHz
    Real-Time CPU: Dual-Core ARM Cortex-R5, up to 600MHz
    Nb. de cœurs4
    chipsetSoC
  • Mémoire
    Type de mémoireDDR4
  • Carte vidéo
    ChipsetMali™-400 MP2 up to 667MHz
  • Caractéristiques principales
    caractéristiquesFeatures
    Zynq MPSoC
    • Quad-core ARM Cortex A53-based application processing unit (APU)
    • Dual-core ARM Cortex R5-based real-time processor unit (RPU)
    • MaliTM-400 GPU
    • H.264/265 video codec
    • UltraScale+ 256k programmable logic cells
    • Extensive on-chip memory

    General
    • PCI Express Gen 3 interface
    • MicroSD or NOR flash boot
    • Dual Quad-SPI flash memory
    • 4GB DDR4 storage memory
    • DMA transfers
    • BSP and MPSoC design kit software
    • VxWorks®, Linux®, and Windows® support
  • Expansion
    slots d'extensionPCIExpress Interface
    1x PCIe x4 Gen3 Interface
  • Ports et interfaces
    Externe I/OFront I/O to Programmable Logic
    44x differential I/O
    4x single-ended I/O
    2x differential clocks

    Rear I/O
    P15: 4 high-speed (12.5Gb/s) serial lanes for PCIe, Serial RapidIO, or 10GbE.
    P16: 17 LVDS pairs (34 LVCMOS), 2 global clock pairs
    P4: 30 LVDS pairs (60 LVCMOS), 2 global clock pairs
  • Capacité de stockage
    capacité de stockage64 GB
    interface de stockageeMMC Flash
    1x 64GB eMMC

    SD Card
    1x 16GB Industrial MLC microSD card pre-programmed with boot.bin
  • Spécifications mécaniques
    Type SBCXMC Board
  • Spécification environnementale
    température de stockage-55°C/+125°C
    température de fonctionnement-40°C/+85°C
    humidité relative5% to 95% non-condensing
  • Données GENERALES
    FabricantAcromag
    ApplicationAutomation
    Garantie24 Maanden
