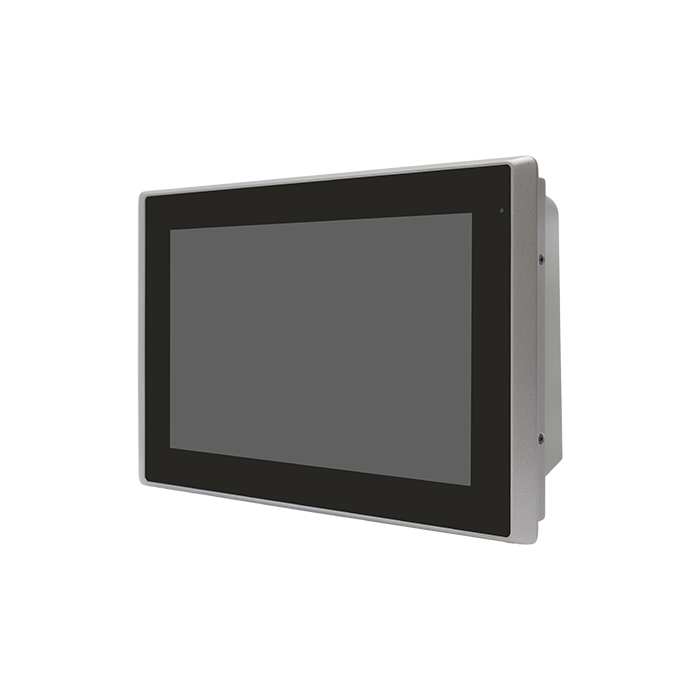

10.1" WXGA Fanless HMI i3-1215U CPU 1xDDR4 2xM.2 2xGbE

SKU:
ARCHMI-S-910DP
Fabrikant:
Aplex
  • Marktsegment : Digital signage, IoT
  • Scherm Afmeting : 10.1"
  • Touchscreen type : Capacitive Touch
  • Processor : Intel Core
10.1" WXGA Fanless HMI i3-1215U CPU 1xDDR4 2xM.2 2xGbE
Neem contact met ons op voor de levertijd
Details
Specificaties
Downloads
Specificaties
  • Scherm
    Scherm Afmeting10.1"
    Touchscreen typeCapacitive Touch
    Contrast Ratio800:1
    Helderheid (cd/m2)350
    Kijkhoek (H/V°)170(H)/170(V
    Max screen resolution1280 x 800
  • Processor
    ProcessorIntel Core
    Processor serieAlder Lake
    Socket typeBGA1744
    Basisfrequentie4x E-core 3.30GHz
    2x P-core 4.40GHz
    Aantal cores8
    TDP15W
  • Geheugen
    GeheugentypeDDR4 SO-Dimm
    Geheugenslots2
    Max geheugen32GB
  • Video
    Chipsetintel® UHD Graphics for 12th Gen Intel® Processors
  • Belangrijkste eigenschappen
    Kenmerken• 10.1" Industrial Compact Size Panel PC
    • Intel 12th Gen. i5-1235U, i3-1215U (Alder lake-P)
    • Support 2 x DDR4 3200MHz SO-DIMM, Up to 32GB
    • IP66 Compliant Aluminum Front Bezel
    • Support Resistive touch screen and Projected Capacitive Multi-touch screen
    • Support Auto-Dimming (for option)
    • Support High Brightness LCD Version
    • Fanless Design
    • DC 9~36V Wide Range Power Input
  • Uitbreidingsmogelijkheden
    Uitbreiding slotsM.2
    1 x M.2 Key-E Slot (Support WIFI+BT, 2230)(USB2.0, PCIe x1)
    1 x M.2 Key-B Slot w/1 x Nano-SIM slot(Support 4G/5G, 3042/3052) (USB3.2 Gen.1 x1, PCIe x1(Default)/SATA, USB2.0)
  • Poorten & Interfaces
    Watchdog timerSoftware programmable 1–255 level
    LAN poorten2
    Seriele poorten3
    USB 2.0 poorten2
    USB 3.x poorten2
    Audio interfaceSupport Line-in, Line-out, MIC by pin header
    Externe I/OLan
    1 x RJ45 Type Intel I219LM GbE LAN
    1 x RJ45 Type Intel I210AT, GbE LAN

    Serial
    1 x DB9 Type RS-485/422/232(COM1, BIOS selection, RS-232 is default)
    1 x DB9 Type RS-485/422/232(COM2, BIOS selection, RS-232 is default)
    1 x DB9 Type RS-232(COM3)

    USB
    2 x USB 3.2 Type A,
    2 x USB 2.0 Type A
  • Opslag
    Opslag interfaceM.2
    1 x M.2 Key-M Slot for NVME (PCIe, 2280)
  • Mechanische specificaties
    Type behuizingAluminum housing
    Afmetingen 285 x 189 x 75 mm
    MontagePanel Mount, VESA 100 x 100
  • Product eigenschappen
    Gewicht2.61 kg
  • Electrische specificaties
    Input rangeDC 9~36V
    Power consumption 75W(Max)
  • Omgeving specificatie
    Opslag temperatuur -30˚C/+70˚C
    Operating Temperatuur0°C/+50°C
    Relatieve luchtvochtigheid10 to 95%@ 40˚C, non-condensing
  • Generieke data
    FabrikantAplex
    MarktsegmentDigital signage, IoT
    Garantie24 Maanden
