In addition to the product listed, the following model variants are also available from us. • AUHMI-910CP - 10.1" WXGA PCAP HMI i3-1115G4E 2xDDR4 M.2 SATA3 PCIe SSD • AUHMI-916CP - 15.6" WXGA PCAP HMI i3-1115G4E 2xDDR4 M.2 SATA3 PCIe SSD • AUHMI-921CP - 21.5" FHD fanless HMI with i3-1115G4E
If you have any questions, please contact us at sales@arcobel.com.
Specificaties
Scherm
Scherm Afmeting
10.1"
Touchscreen type
Capacitive Touch
Contrast Ratio
800:1
Helderheid (cd/m2)
350
Kijkhoek (H/V°)
170°(H)/170°(V)
Max screen resolution
1280 x 800
Processor
Processor
Intel Core
Processor serie
Tiger Lake
Socket type
BGA1449
Basisfrequentie
2.2GHz
Aantal cores
2
TDP
15W
chipset
SoC
Geheugen
Geheugentype
DDR4
Geheugenslots
2
Max geheugen
64GB
Video
Aansluitingen
DisplayPort
1x DisplayPort
HDMI
1x HDMI
Chipset
Intel® UHD Graphics for 11th Gen Intel® Processors
Belangrijkste eigenschappen
Kenmerken

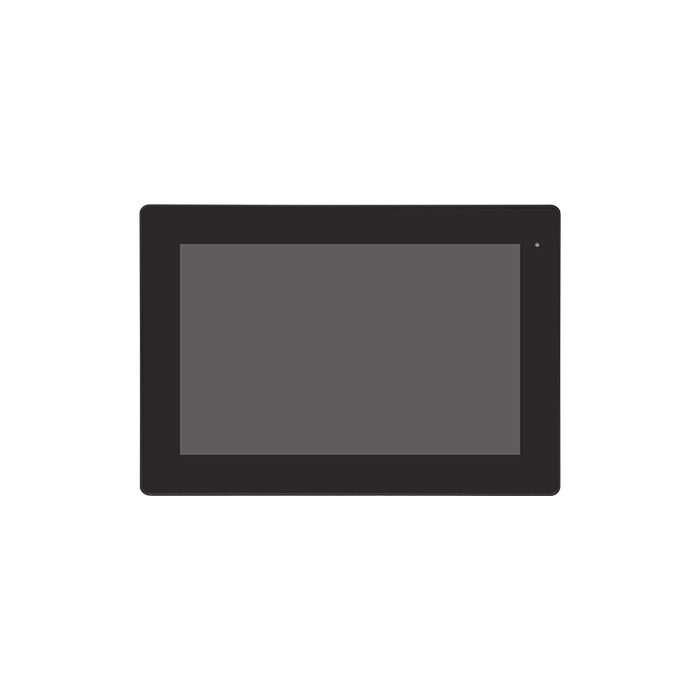

• 10.1” Industrial Compact Size Panel PC
• 11th Gen. Intel Core i3/i5 Processor
• 2 x 260-pin SO-DIMM DDR4 slot, up to 64GB 3200MHz
• Flat Front Panel Touch Screen with IP66 front bezel
• Fanless Design
• DC 9~36V Wide-Ranging Power Input
• Support Expansion via Full-size Mini-PCIe and M.2 slots
• Support TPM 2.0 hardware security
• High Brightness 1,000 nits for optio
Uitbreidingsmogelijkheden
Uitbreiding slots
Mini PCIe
1x Mini-PCIe slot (full size)
M.2
1x M.2 E-key for Wi-Fi/Bluetooth Module
SIM Slot
1x Nano SIM slot
Optional
• 4G LTE
• Wi-Fi + Bluetooth
• 4x USB 2.0 type A (TB-528U4)
• 4x USB 2.0 type A + 1 x Mini-PCIe + 1 x SIM slot (TB-528U4ME1)
• 1x COM (RS-232) + 2 x USB 2.0 (TB-528C1U2)
• 1x COM (RS-232) + 2 x USB 2.0 + 1 x Power Button (TB-528C1U2P1)
• 2x COM (RS-232) (TB-528C2)
• 2x COM (RS-232) + 1 x Mini-PCIe slot + 1 x SIM slot (TB-528C2ME1)
• 2x COM (RS-422/485, isolated) (TB-528C2I)
• 2x CAN (TB-528CAN2)
• 1x LAN + 2 x USB 2.0 (TB-528E1U2)
• 1x Backup Battery
• 1x Cable Cover
(TB-528 Series or backup battery only be inserted in either one)
Either high brightness panel or backup battery can be installed in HMI
Poorten & Interfaces
LAN poorten
2
Seriele poorten
2
USB 3.x poorten
4
Audio interface
1 x Line-out
Externe I/O
Ethernet Ports
1 x 1GbE
1 x 2.5GbE LAN RJ-45
USB
4 x USB 3.0 type A
Serial Port
1 x DB-9 connector, including:
* 1 x RS-232(RTS, Rx, Tx, CTS), pin1 RTS/5V/12V selectable via jumper (COM1)
* 1 x RS-232(Tx, Rx)/422/485(COM2) by Y Cable
Audio Port
1 x Line-out
Opslag
Opslag interface
M.2
1 x M.2 M-Key 2280 (Support PCIe/SATA3, default SATA3)
Mechanische specificaties
Type behuizing
IP66 Compliant Front Bezel, Aluminum Die-casting Chassis
