Intel® UHD Graphics for 11th Gen Intel® Processors
Belangrijkste eigenschappen
Kenmerken

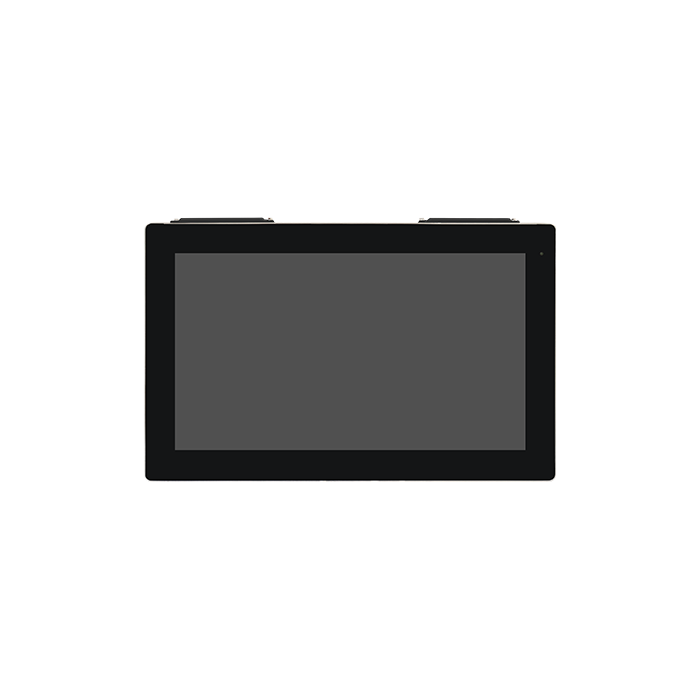

• 15.6" New Generation Stainless Steel Panel PC
• 11th Gen. Intel Core i3/i5 BGA type Processor
• True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure (Grade 316 for Option)
• IP66/IP69K Rated with M12 Connectors
• Ultra Slim Front Frame Design
• Special Hygienic Bolts on Rear Case
• Waterproof Wireless Antenna Covers to Solve the Bend Damage and Easy to Clean
• Support Ergonomic Versatile Mounting: VESA Mount 100 x 100 / Floor Stand / Swing ARM
Uitbreidingsmogelijkheden
Uitbreiding slots
Mini PCIe
1x Full size mPCIe/mSATA (mPCIe as default, select by BIOS)
M.2
1x M.2 E-key 2230 (PCIe+USB) for optional WIFI/BT module
SIM Slot
1x NANO SIM
Poorten & Interfaces
Seriele poorten
1
USB 2.0 poorten
2
Externe I/O
Ethernet Ports
1x M12 8-pin for LAN with waterproof cover
USB
1 x M12 8-pin for 2 x USB 2.0 with waterproof cover
Serial Port
1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover
Optional
2 x optional blank M12 connector with waterproof cover for selecting two from the following options:
2x USB 2.0, 1x USB 3.2 Gen.1, 1x LAN, 1x COM
Opslag
Opslag interface
M.2
1x M-Key 2280 (PCIe) for SSD
Mechanische specificaties
Type behuizing
Full IP66 & 69K
Afmetingen
403.4 x 254.4 x 64.9 mm
Montage
VESA Mount 100 x 100, Floor Stand / Swing ARM (optional)
