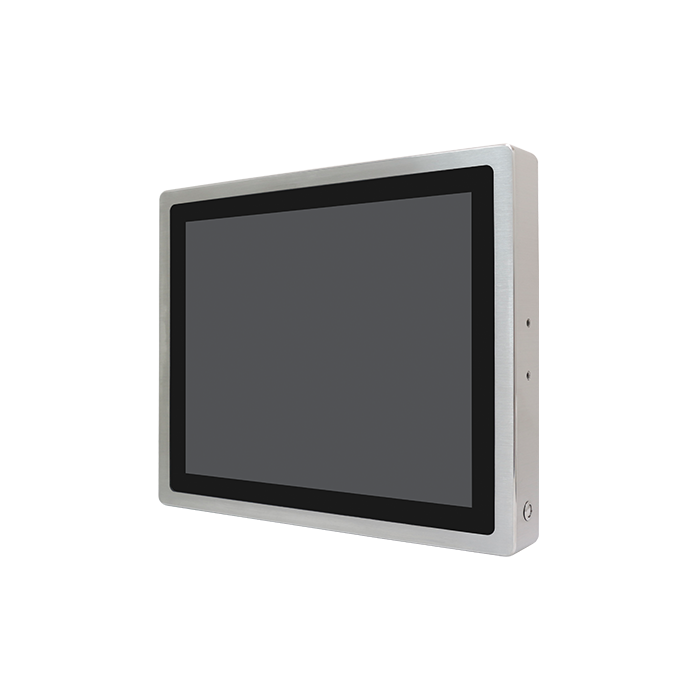

15" XGA IP66/IP69K panel pc, Intel 12th, I3-1215U, 128G TLC

SKU:
VITAM-915DP
Fabrikant:
Aplex
  • Marktsegment : Digital signage, Food & beverage
  • Scherm Afmeting : 15"
  • Touchscreen type : Capacitive Touch
  • Processor : Intel Core
15" XGA IP66/IP69K panel pc, Intel 12th, I3-1215U, 128G TLC
Neem contact met ons op voor de levertijd
Details
Specificaties
Downloads
Specificaties
  • Scherm
    Scherm Afmeting15"
    Touchscreen typeCapacitive Touch
    Contrast Ratio1000:1
    Helderheid (cd/m2)300
    Kijkhoek (H/V°)176(H) /176(V)
    Max screen resolution1024 x 768
  • Processor
    ProcessorIntel Core
    Processor serieAlder Lake
    Socket typeBGA1744
    Basisfrequentie3.30 GHz
    Aantal cores8
    TDP15W
  • Geheugen
    GeheugentypeDDR4 SO-Dimm
  • Video
    ChipsetIntel® UHD Graphics for 12th Gen Intel® Processors
  • Belangrijkste eigenschappen
    Kenmerken• 15” New Generation Stainless Steel Panel PC
    • 12th/13th Gen. Intel Core i3/i5 BGA Type Processor
    • True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure
    (Grade 316 for Option)
    • IP66/IP69K Rated with M12 Connectors
    • Support Resistive Touch, Projected Capacitive Touch
    • Touch on/off Button on the Side Edge for Hygienic Cleaning
    • Support Ergonomic Versatile Mounting: Yoke Mounting / Space-saving VESA 75 x 75mm Mounting
  • Poorten & Interfaces
    LAN poorten1
    Seriele poorten1
    USB 2.0 poorten1
    Externe I/OLan
    1 x M12 8-pin for LAN with waterproof cover

    COM
    1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover

    USB
    1 x M12 8-pin for USB 2.0 with waterproof cover

    Button
    1 x Touch on/off button at the side
  • Opslag
    Opslag Capaciteit128 GB
  • Mechanische specificaties
    Type behuizingStainless steel case
    Afmetingen399 x 324 x 53 mm
    MontageVESA mount 75 x 75
  • Product eigenschappen
    Gewicht6.9 kg
  • Electrische specificaties
    Input rangeDC 9~36V
    Power consumption64.73W
  • Omgeving specificatie
    Opslag temperatuur -30°C/+70°C
    Operating Temperatuur0°C/+50°C
    Relatieve luchtvochtigheid10 to 95% @ 40°C, non-condensing
  • Certificeringen
    certificatenCE/FCC Class A
  • Generieke data
    FabrikantAplex
    MarktsegmentDigital signage, Food & beverage
    Garantie24 Maanden
