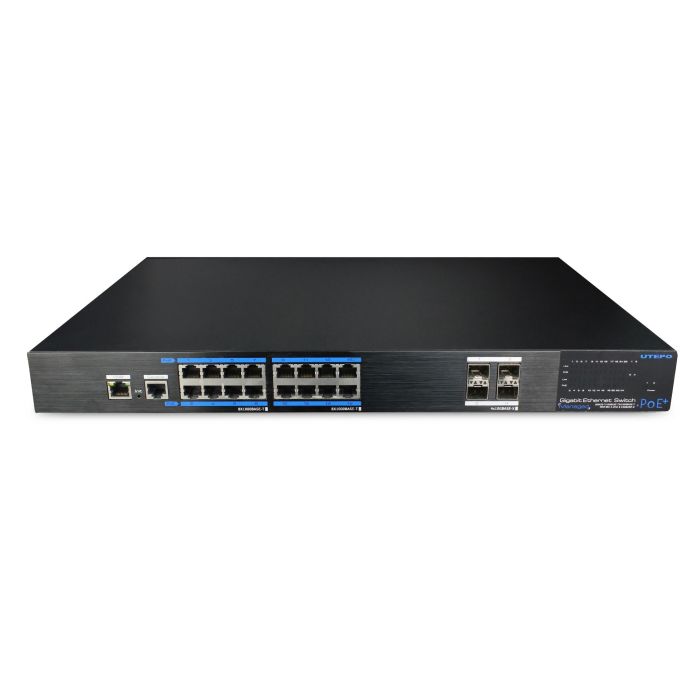

16 port full gigabit PoE L2 managed ethernet switch

SKU:

UTP7516GE-POE-4GF

Fabrikant:

Utepo

Fabrikant : Utepo
Apparaat : Managed Switch

Lokaal op voorraad

Voeg toe aan vergelijking

Details

Specificaties

Downloads

Specificaties

Belangrijkste eigenschappen

Kenmerken

• Provide 16* PoE Gigabit downlink RJ45 ports , 4* Gigabit uplink SFP ports
• Provide web-based layer 2 network management and PoE management by simple operation
• Support high-speed data forwarding, very suitable for large flow of video data forwarding in security surveillance
• Support fast ring ,Self-healing in 20ms Min
• Support temperature-controlled fan
• Quick Installation, simple operation, convenient for wall/desk/rack installation.

Poorten & Interfaces

Apparaat	Managed Switch
LAN poorten	16
Switch Architecture	Store and Forward
Overdrachtsnelheid	• Console Port: 1RJ45-R232 serial port(115200,8,N,1) • OOB Port: 110/100Base-TX RJ45(only used to Web management) default IP:192.168.1.200 name:admin password:admin) • Switch Throughput: 29.8Mpps
PoE beschikbaar	Ja
POE vermogen	• PoE Standard: 802.3af/at(PSE) • PoE Power Output: 54V DC , 30 watts max • PoE Budge: 270 watts max POE Management • Support Total Power Consumption Control • Support PoE ON/OFF • Support Single Port 60W max. Power Change and Port Output Priority

Mechanische specificaties

Afmetingen 442mm (l) ×320mm (w) × 44.5mm (h)
Product eigenschappen

Gewicht 4.35kg

Omgeving specificatie

Opslag temperatuur	• -40-85℃
Operating Temperatuur	-10°C/+50°C
Relatieve luchtvochtigheid	• 5%-95%(Non-condensing)

Certificeringen

standaarden	Lightning protection • 6KV Execute: IEC61000-4-5 ESD • 6KV Contact discharge • 8KV Air discharge • Execute: IEC61000-4-2

Generieke data

Fabrikant Utepo
Garantie 24 Maanden

Downloads

datasheet	UTP7516GE-PoE-4GF_Datasheet_VER1.0.pdf

€ 482,38 € 398,66
