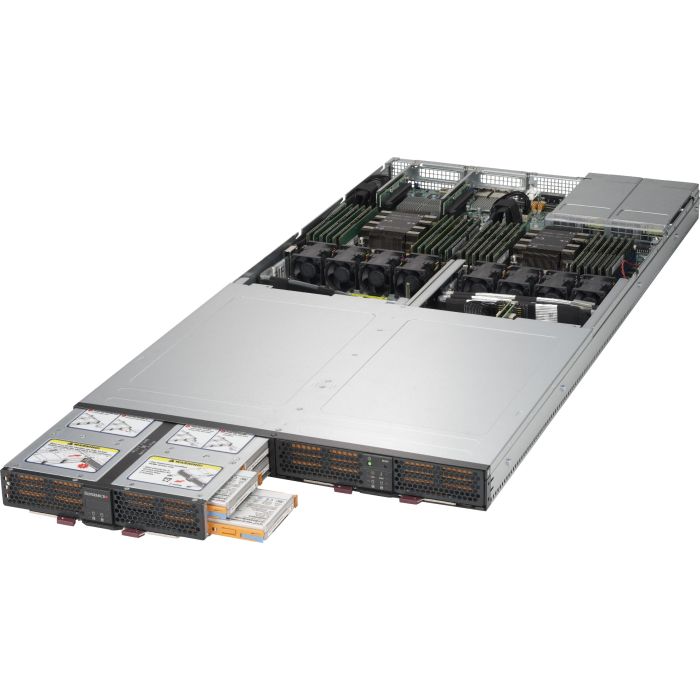

1U SuperStorage Xeon NVMe server
-
Processor :
Intel Core
-
Max geheugen :
6TB
-
Operating Temperatuur :
5°C/+35°C
Neem contact met ons op voor de levertijd
Configureer dit systeem
Details
Specificaties
Specificaties
-
Processor
| Processor | Intel Core |
|---|
| Processor serie | Cascade Lake |
|---|
| Socket type | LGA3647 |
|---|
| Aantal sockets | Dual |
|---|
| Basisfrequentie | 1.90GHz |
|---|
| Aantal cores | 6 |
|---|
| TDP | 85W |
|---|
| chipset | C627 |
|---|
-
Geheugen
| Geheugentype | DDR4 |
|---|
| Geheugenslots | 24 |
|---|
| Max geheugen | 6TB |
|---|
-
Video
| Chipset | Aspeed AST2500 BMC |
|---|
-
Belangrijkste eigenschappen
| Kenmerken |
● Dual Socket P (LGA 3647) support
2nd Gen Intel® Xeon® Scalable
processors (Cascade Lake/Skylake)
● 24 DIMMs; up to 6TB 3DS ECC
DDR4-2933MHz RDIMM,
Supports Intel® Optane™ DCPMM
● 2 PCI-E 3.0 x16 Low-profile slots
● Dual Drawer/Tray with a total
of 32 NVMe 2.5" SSDs
● 2x 10GBase-T LAN ports
● Built in Intel QAT for Crypto/Compression
● 8x 40x56mm PWM fans
● 1600W Redundant Power Supplies Platinum Level
System is pre configured with
2x Xeon Bronze 3204 CPUs,
4x 16GB DIMMs
4x Intel 100GB NVMe
|
|---|
-
Uitbreidingsmogelijkheden
| Uitbreiding slots | 2 PCI-E 3.0 x16 (Low Profile),
4 PCI-E 3.0 x16 |
|---|
-
Poorten & Interfaces
| LAN poorten | 3 |
|---|
| Seriele poorten | 2 |
|---|
| USB 3.x poorten | 2 |
|---|
| Externe I/O | Serial
1x comport back side
Lan
1x Intel® X550 Dual Port 10GBase-T
1X IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
USB
2x USB 3.0 ports |
|---|
| Interne I/O | Serial
1x COM port by Header |
|---|
-
Opslag
| RAID | 0, 1 |
|---|
| Opslag interface | M.2
2x PCI-E 3.0 x2
Form Factor: 2260/2280/22110
Key: M-Key
Sata
*2 SATA Hybrid ports, RAID 0 & 1
U.2
32x NVMe 2.5" SSDs |
|---|
-
Mechanische specificaties
| Type behuizing | Rack mount |
|---|
| Hoogte | 1U |
|---|
| Afmetingen | 438mm (W) x 913mm (D) x 43mm (H) |
|---|
-
Product eigenschappen
| Gewicht | Net Weight: 26.3kg
Gross Weight: 42.2kg |
|---|
-
Electrische specificaties
-
Omgeving specificatie
| Opslag temperatuur | -40°C/+60°C |
|---|
| Operating Temperatuur | 5°C/+35°C |
|---|
| Relatieve luchtvochtigheid | 8% to 90% (non-condensing) |
|---|
-
Generieke data
| Fabrikant | Supermicro |
|---|
| Marktsegment | Datacenter |
|---|
| Garantie | 24 Maanden |
|---|
|
