20.1 military grade rugged PanelPC Atom Quad Core 8GB DDR3

SKU:
TRICOR20RC-10
Fabrikant:
MPL
  • Marktsegment : Defense & Avionica, In-vehicle, Railway
  • Scherm Afmeting : 20.1"
  • Touchscreen type : Resistive Touch
  • Processor : Intel Atom
Neem contact met ons op voor de levertijd
Details
Specificaties
Downloads

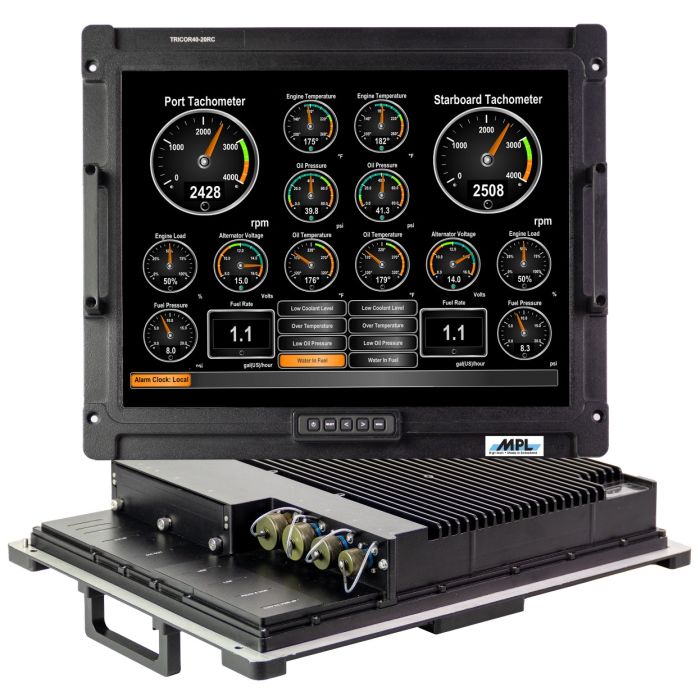

TRICOR Family is a high performance 20.1" Panel PC. The Rugged Solution can be equipped with an Intel Atom, up to 9th Gen i7, or Xeon processor board, combined with a wide temperature 20.1" screen.

The integrated embedded CPU board (engineered and produced by MPL in Switzerland) comes with a conductive cooling system and therefore does not require an internal fan. MPL engineers are taking special care to select only the best components with the lowest power consumption. The final result is an increased MTBF so that the TRICOR20 can be used for years to come without any problems. The TCO (total cost of ownership) is maximally reduced.

The screen has a brightness of up to 800 cd/m² and excellent optical specifications. The touch screen can easily be operated by hand or with an optional integrated pen.

The system is designed with a military grade, high strength, and lightweight housing (SWaP-C). The enclosure meets IP54 all around. Its modular and flexible architecture allows the system easily to be configured with nearly any options (GPS, 1553, WLAN, LTE...). Additional function keys for faster operation of the system can be implemented. Details such as the pressure valve or the possibility of an additional input voltage module underline the premium demand.

The interface plugs (e.g. 38999) can be made available on any sides, depending customer requirements. The system can be to be installed in a cabinet or VESA mounted and has an extended temperature range from -10°C up to +55°C. In the current solution, the customer gets access to Audio and DVI behind a sealed flap. The direct accessible interfaces on 38999 connector are in this case USB, LAN and serial lines. Other configurations and interfaces are easy possible.

All MPL products are designed for long-term availability and the TRICOR20 Family will be available for at least 10 years. MPL's own component stock guarantees repairs. The system meets or even exceeds typical standards like MIL-STD-810, MIL-STD-461, MIL-STD-1275
Specificaties
  • Scherm
    Scherm Afmeting20.1"
    Touchscreen typeResistive Touch
    schermverlichtingLED
    Contrast Ratio1000:1
    Helderheid (cd/m2)800
    Max screen resolution1600 x 1200
  • Processor
    ProcessorIntel Atom
    Basisfrequentie2.20 GHz
    Aantal cores8
    TDP25 W
  • Geheugen
    GeheugentypeDDR3L
    Max geheugen8GB
  • Video
    AansluitingenDVI
    1x DVI out
    1x DVI In (Optianal)
    ChipsetHD-Graphic for Intel Atom
  • Belangrijkste eigenschappen
    Kenmerken• Wide input voltage range 10-36VDC or 115V/230VAC (e.g. MIL-STD-1275, others on request)
    • Space-saving, integrated All-in-One solution
    • Fanless design (noiseless)
    • VESA / wall mounting / control cabinet installation
    • Wide selection of processors (Intel Atom up to 9th Gen i7 & Xeon)
    • Operating temperature range -10°C to +55°C
    • Highly configurable and customizable (M-COTS)
  • Poorten & Interfaces
    LAN poorten2
    Seriele poorten1
    USB 2.0 poorten1
    Externe I/OLAN
    2 x Gbit Ethernet by a D38999/TVP02RW-15-35SN connector

    Serial
    1x RS by a D38999/TVP02RW-15-35SA connector

    USB
    1x USB by a D38999/TVP02RW-15-35SA connector

    Other configurations on request
  • Mechanische specificaties
    Type behuizingAluminum housing
    Afmetingen485 (W) x 400 (H) x 95mm (D)
    MontageDesk / Wall mount
  • Product eigenschappen
    Gewicht12Kg
  • Electrische specificaties
    Input range115/230 VAC or 18-36 VDC input
    Power consumption<150W (depending on the selected embedded CPU board)
  • Omgeving specificatie
    Opslag temperatuur-30°C/+70°C
    Operating Temperatuur-10°C/+55°C
    Relatieve luchtvochtigheid95% RH @40°C
  • Software support
    Operating systeemWindows10, RHEL 7.x or above & Latest Linux OS
  • Generieke data
    FabrikantMPL
    MarktsegmentDefense & Avionica, In-vehicle, Railway
