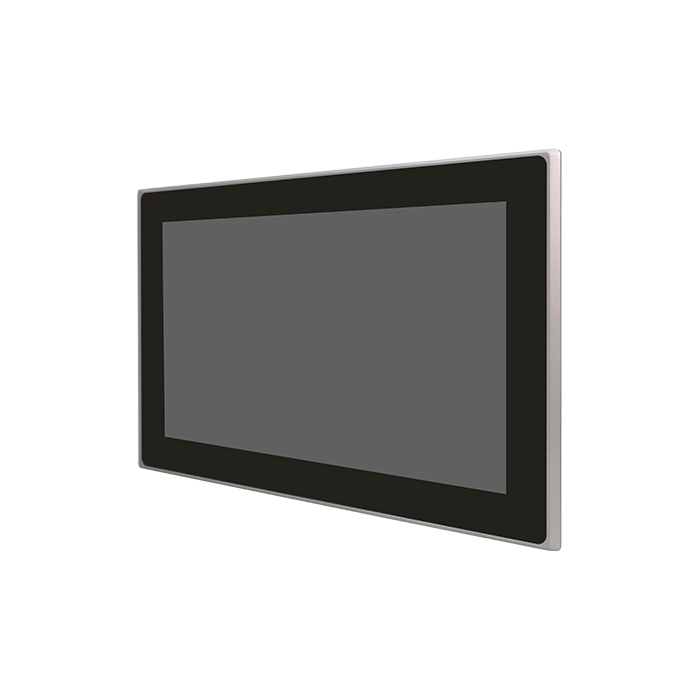

23.8" FHD Fanless HMI i3-1215U CPU 1xDDR4 2xM.2 2xGbE

SKU:

ARCHMI-S-924DP

Fabrikant:

Aplex

Marktsegment : Digital signage, Food & beverage
Scherm Afmeting : 23,8"
Touchscreen type : Capacitive Touch
Processor : Intel Core

23.8" FHD Fanless HMI i3-1215U CPU 1xDDR4 2xM.2 2xGbE

Neem contact met ons op voor de levertijd

Voeg toe aan vergelijking

Details

Specificaties

Downloads

Specificaties

Scherm

Scherm Afmeting	23,8"
Touchscreen type	Capacitive Touch
Contrast Ratio	3000:1
Helderheid (cd/m2)	250
Kijkhoek (H/V°)	178(H)/178(V)
Max screen resolution	1920 x 1080

Processor

Processor Intel Core
Processor serie Alder Lake
Socket type BGA1744
Basisfrequentie 3.30 GHz
Aantal cores 6
TDP 15
Geheugen

Geheugentype DDR4 SO-Dimm
Geheugenslots 2
Video

Chipset Intel® UHD Graphics for 12th Gen Intel® Processors

Belangrijkste eigenschappen

Kenmerken	• 23.8" Industrial Compact Size Panel PC • Intel 12th Gen. i5-1235U, i3-1215U (Alder lake-P) • Support 2 x DDR4 3200MHz SO-DIMM, Up to 32GB • IP66 Compliant Aluminum Front Bezel • Support Projected Capacitive Multi-touch screen • Support Auto-Dimming (for option) • Support High Brightness LCD Version • Fanless Design • DC 9~36V Wide Range Power Input

Poorten & Interfaces

Watchdog timer	Software programmable 1–255 level
LAN poorten	2
Seriele poorten	3
USB 2.0 poorten	2
USB 3.x poorten	2
Audio interface	Support Line-in, Line-out, MIC by pin header
Externe I/O	Lan 1 x RJ45 Type Intel I219LM GbE LAN 1 x RJ45 Type Intel I210AT, GbE LAN Serial 1 x DB9 Type RS-485/422/232(COM1, BIOS selection, RS-232 is default) 1 x DB9 Type RS-485/422/232(COM2, BIOS selection, RS-232 is default) 1 x DB9 Type RS-232(COM3) USB 2 x USB 3.2 Type A 2 x USB 2.0 Type A

Generieke data

Fabrikant Aplex
Marktsegment Digital signage, Food & beverage
Garantie 24 Maanden

Downloads

datasheet	ARCHMI-S-924DP(H)_V1.1.pdf

Prijs op aanvraag
