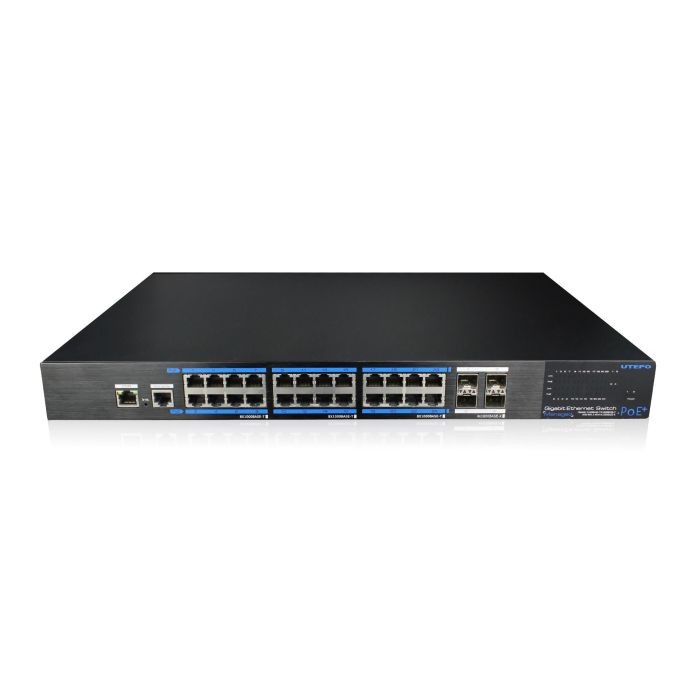

24 Ports PoE Full Gigabit L2 Managed Ethernet Switch

SKU:
UTP7524GE-POE-4GF
Fabrikant:
Utepo
  • Fabrikant : Utepo
  • Apparaat : Managed Switch
Lokaal op voorraad
Details
Specificaties
Downloads
Specificaties
  • Belangrijkste eigenschappen
    Kenmerken• Provide 24* PoE Gigabit downlink RJ45 ports , 4* Gigabit uplink SFP ports
    • Provide web-based layer 2 network management and PoE management by simple operation
    • Support high-speed data forwarding, very suitable for large flow of video data forwarding in security surveillance
    • Support fast ring ,Self-healing in 20ms Min
    • Support temperature-controlled fan
    • Quick Installation, simple operation, convenient for wall/desk/rack installation.
  • Poorten & Interfaces
    ApparaatManaged Switch
    LAN poorten24
    Switch Architecture• Store and Forward
    Overdrachtsnelheid• Copper Ports: 24* 10/100/1000Base-T PoE RJ45(Auto-MDI/MDI-X)
    • SFP Ports: 4*1000 Base-X SFP(Mini-GBIC)
    • OOB Port: 1*10/100Base-TX RJ45(only used to Web management) default IP:192.168.1.200 name:admin password:admin)
    PoE beschikbaarJa
    POE vermogen• PoE Standard: 802.3af/at(PSE)
    • PoE Power Output 54V DC , 30 watts max
    • PoE Budge 390 watts max
    POE Management • Support Total Power Consumption Control
    • Support PoE ON/OFF
    • Support Single Port 30W max. Power Change and Port Output Priority
  • Mechanische specificaties
    Afmetingen442mm (l)× 320mm (w) × 44.5mm (h)
  • Product eigenschappen
    Gewicht4.35kg
  • Omgeving specificatie
    Opslag temperatuur• -40-85℃
    Operating Temperatuur-10°C/+50°C
    Relatieve luchtvochtigheid• 5%-95%(Non-condensing)
  • Certificeringen
    certificatenLightning protection • 6KV Execute:IEC61000-4-5

    ESD • 6KV Contact discharge
    • 8KV Air discharge
    • Execute:IEC61000-4-2
  • Generieke data
    FabrikantUtepo
    Garantie24 Maanden
