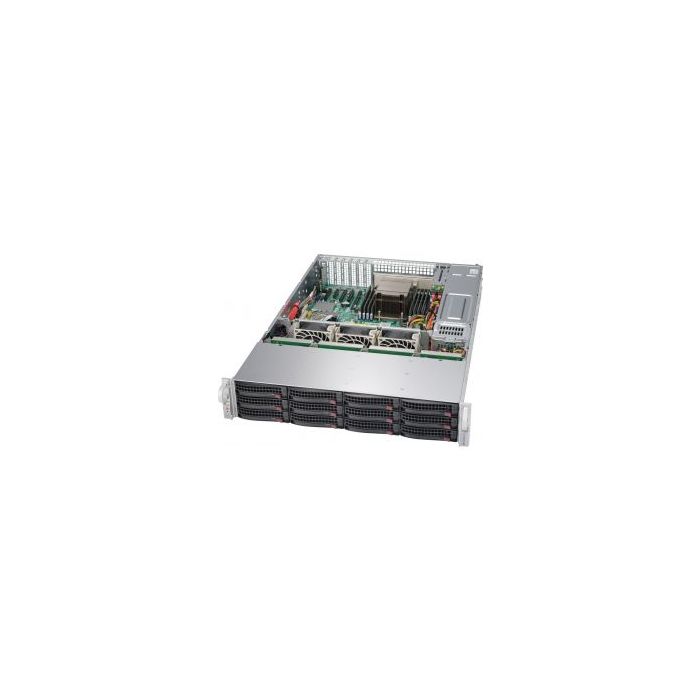

2U SuperStorage Xeon Sata Front loading server
-
Processor :
Intel Xeon
-
Max geheugen :
2TB
-
Operating Temperatuur :
5°C/+35°C
Neem contact met ons op voor de levertijd
Configureer dit systeem
Details
Specificaties
Specificaties
-
Processor
| Processor | Intel Xeon |
|---|
| Processor serie | Cascade Lake |
|---|
| Socket type | LGA3647 |
|---|
| Aantal sockets | Single |
|---|
| Basisfrequentie | 2.20 GHz |
|---|
| Aantal cores | 10 |
|---|
| TDP | 85W |
|---|
| chipset | C622 |
|---|
-
Geheugen
| Geheugentype | DDR4 |
|---|
| Geheugenslots | 8 |
|---|
| Max geheugen | 2TB |
|---|
-
Video
| Aansluitingen | 1x VGA |
|---|
| Chipset | Aspeed AST2500 BMC |
|---|
-
Belangrijkste eigenschappen
| Kenmerken | ● Single Socket P (LGA 3647) supports
2nd Gen Intel® Xeon® Scalable
processor (Cascade Lake/Skylake)
● 8x DIMMs; up to 2TB 3DS ECC
DDR4-2933MHz RDIMM/LRDIMM,
Supports Intel® Optane™ DCPMM
● 1x PCI-E 3.0 x16, 1x PCI-E 3.0 x8,
1x PCI-E 3.0 x8, 1x PCI-E 3.0 x4 (in x8)
● 2x 10GBase-T with Intel® X557
● 12x Hot-swap 3.5" SAS/SATA drive bays
with SES3; 2 Hot-swap 2.5" NVMe/SATA
(rear, optional)
● SAS3 via Broadcom 3008 controller
● Server remote management: IPMI 2.0
/ KVM over LAN / Media over LAN
● 3x High-performance 80mm PWM fans
● 800W Redundant Power Supplies
Titanium Level (96%)
|
|---|
-
Uitbreidingsmogelijkheden
| Uitbreiding slots | PCI-E
1x PCI-E 3.0 x16 (x16 or x8 )
2x PCI-E 3.0 x8
1x PCI-E 3.0 x4 (in x8 slot) |
|---|
-
Poorten & Interfaces
| LAN poorten | 3 |
|---|
| Seriele poorten | 2 |
|---|
| USB 2.0 poorten | 5 |
|---|
| USB 3.x poorten | 8 |
|---|
| Externe I/O | Lan
2x RJ45 10GBase-T LAN ports
1x RJ45 Dedicated IPMI LAN port
Serial
1x COM port rear side
USB
2x USB 2.0 rear side
2x USB 3.0 rear side
|
|---|
| Interne I/O | Serial
1x COM Port by header
USB
2x USB 3.0 by headers + 1 Type A
6x USB 2.0 by headers
|
|---|
-
Opslag
| RAID | 0, 1, 10 |
|---|
| Opslag interface | M.2
1x M.2 Interface: PCI-E 3.0 x4 and SATA
Form Factor: 2280
Key: M-Key
Double Height Connector
SAS/SATA
12x 12 Hot-swap 3.5" SAS/SATA drive bays with SES3
Optional on back side
2x Hot-swap 2.5" NVMe/SATA (rear, optional)
|
|---|
-
Mechanische specificaties
| Type behuizing | Rack mount |
|---|
| Hoogte | 2U |
|---|
| Afmetingen | 437mm (W) x 648mm (D) x 89mm (H) |
|---|
-
Product eigenschappen
| Gewicht | Gross Weight: 26.3 kg
Net Weight: 15.4 kg |
|---|
-
Electrische specificaties
-
Omgeving specificatie
| Opslag temperatuur | -40°C/+70°C |
|---|
| Operating Temperatuur | 5°C/+35°C |
|---|
| Relatieve luchtvochtigheid | 8% to 90% (non-condensing) |
|---|
-
Generieke data
| Fabrikant | Supermicro |
|---|
| Marktsegment | Datacenter |
|---|
| Garantie | 24 Maanden |
|---|
|
