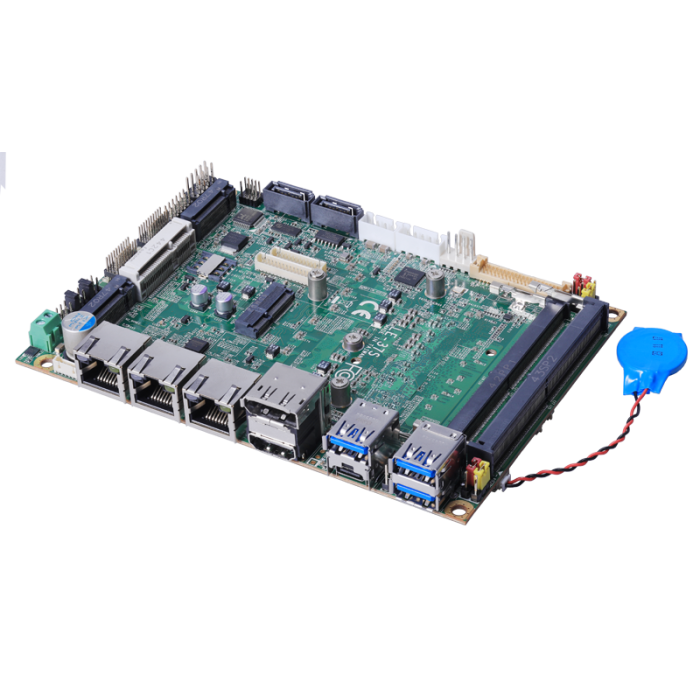

3.5" SBC Intel Ultra 7 165U Fan 3x 2.5GLAN 3xM.2 3xUSB

SKU:

LE-37SU7

Fabrikant:

Commell

Processor : Core Ultra
Max geheugen : 96GB
Type SBC : 3,5"
Operating Temperatuur : 0°C/+60°C

3.5" SBC Intel Ultra 7 165U Fan 3x 2.5GLAN 3xM.2 3xUSB

Neem contact met ons op voor de levertijd

Voeg toe aan vergelijking

Details

Specificaties

Downloads

Introduction

LE-37S
LE-37S is a 3.5” Motherboard which supports Ultra H/U Processor(MTL-H/U Platform), integrated DDR5 memory, Realtek High Definition Audio, Intel Gigabit LAN, USB3.2 Gen2, SATA3, Type C with AHCI function for a system.

New feature for Meteor Lake
Ultra Processor Features up to 12 cores/14 threads, with built-in NPUs for AI accelerator.And feature 3D performance hybrid architecture, combining two core microarchitectures on a single processor chip, prioritizing and distributing workloads to optimize performance.

All in One multimedia solution
The board provides one MiniPCIe slot (support mSATA), one M.2 2230 slot, two M.2 2280 slot (PCIe Gen4), and supports Type C (Alt mode), HDMI, and High Definition Audio, to meet the very requirement of the multimedia application.

Meteor Lake support Windows10 & 11 64bit and Linux
Intel recommends using Windows 10 & 11 64bit. It may lose some drivers if you use other Windows version.

Specificaties

Processor

Processor	Core Ultra
Processor serie	Meteor Lake
Basisfrequentie	up to 4.9GHz Turbo
Aantal cores	12
TDP	15W Base, up to 57W Turbo
chipset	SoC

Geheugen

Geheugentype DDR5
Geheugenslots 2
Max geheugen 96GB

Video

Aansluitingen	DisplayPort 1x DisplayPort++ 1x Type-C (DP alt. Mode) 1x eDP HDMI 1x HDMI LVDS 1x LVDS by header
Chipset	Intel® Graphics

Belangrijkste eigenschappen

Kenmerken

Features
• Support Intel® Core™ Ultra Processor (MTL-H/U Platform)
• 2 x DDR5 SO-DIMM up to 5600 MHz 96GB
• Integrated DisplayPort++, HDMI, eDP, LVDS, Type-C (DP alt.) for four display support
• 3 x Intel® 2.5G Gigabit LAN
• 1 x MiniPCIe (support mSATA) with SIM Slot
• 2 x M.2 2280 Key M support PCIe Gen4 for NVMe
• 1 x M.2 2230 Key E
• 2 x SATA3, 2 x USB2.0, 3 x USB3.2 Gen2, 4 x COM,1 x GPIO
• Intel® Core™ Ultra processors feature 3D performance hybrid architecture
• Advanced Intel® AI Boost NPU for low-power AI acceleration and CPU/GPU off-load
• DC input 9~35V

Uitbreidingsmogelijkheden

Uitbreiding slots	Mini PCIe 1x MiniPCIe with SIM Slot (support mSATA) Note: mSATA and SATA2 can’t use at the same time M.2 1x M.2 (Key E 2230) for Wi-Fi and Bluetooth

Poorten & Interfaces

GPIO Interface	1x GPIO
serial ATA interface	2x SATA3
Watchdog timer	Generates a system reset with internal timer for 1 min/s ~ 255 min/s
LAN poorten	3
Seriele poorten	4
USB 2.0 poorten	2
USB 3.x poorten	3
Audio interface	Realtek ALC888S HD Audio
Externe I/O	Ethernet Ports 1x Intel® I226-LM Gigabit LAN (up to 2.5GbE) 2x Intel® I226-V Gigabit LAN (up to 2.5GbE) USB 3x USB3.2 Gen2
Interne I/O	USB 2x USB2.0 Serial 2x RS-232 2x RS-232/422/485 SMBus 1x SMBus LCD Connector 1x LCD inverter connector eDP 1x eDP header

Opslag

Opslag interface	SATA 2x SATA3 M.2 2x M.2 (Key M 2280) support PCIe Gen4 for NVMe MSATA 1x mSATA port (mux with mini-PCIe)

Mechanische specificaties

Type SBC 3,5"
Afmetingen 146mm x 101mm (L x W)
Electrische specificaties

Input range DC input 9~35V
Omgeving specificatie

Opslag temperatuur -20°C/+80°C
Operating Temperatuur 0°C/+60°C
Relatieve luchtvochtigheid 10%~90%, non-condensing
Generieke data

Fabrikant Commell
Marktsegment Automation
Garantie 18 Maanden

Downloads

Handleiding	LE-37S_Manual_V101.pdf
datasheet	LE-37S_Datasheet.pdf
